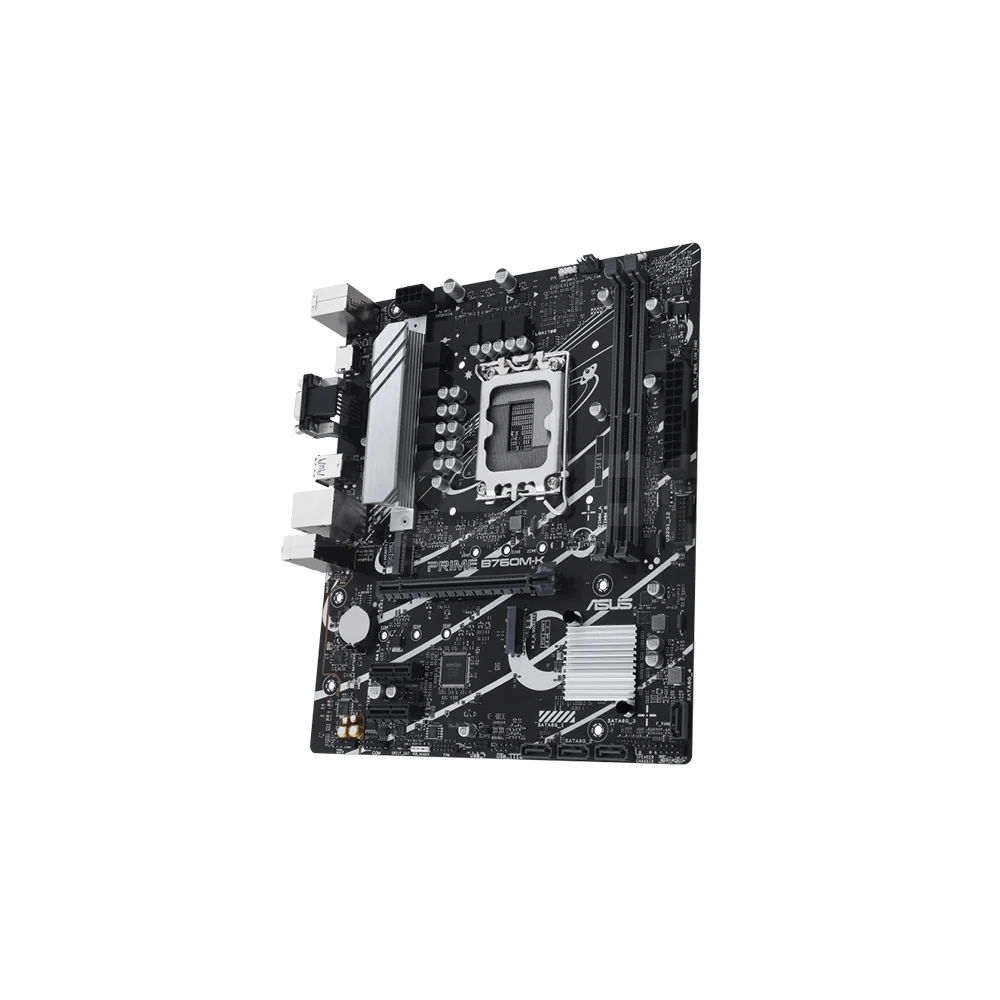

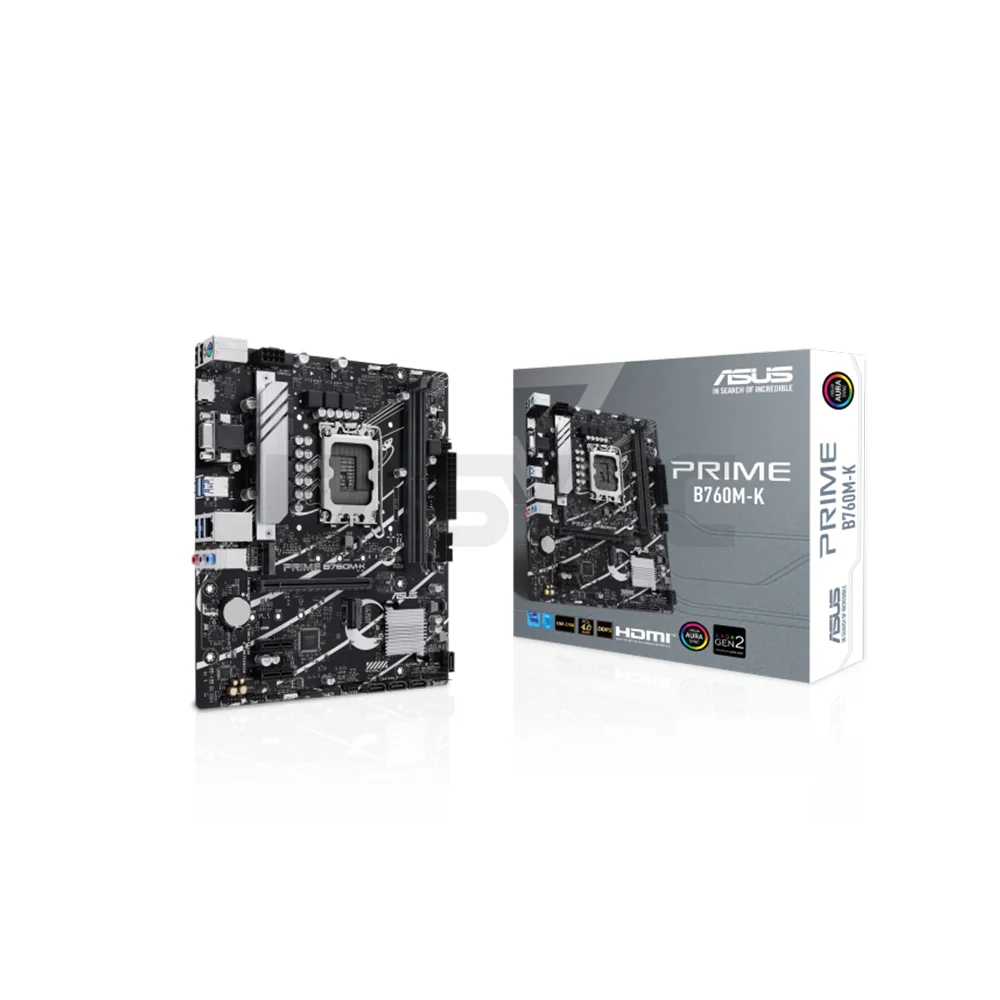

Asus B760M-K D4 Socket LGA 1700 DDR4 Gaming Motherboard

Product Description

Elevate your gaming experience with the Asus B760M-K motherboard. LGA 1700 socket ensures compatibility with the latest CPUs, while DDR4 support guarantees fast and efficient performance. Immerse yourself in seamless gameplay and multitasking. Upgrade to the next level of gaming excellence.

Product Specifications

• Model
• PRIME B760M-K D4

• CPU
• Intel^®Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
  Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
  * Refer to asus.com for CPU support list.
  ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset
• Intel^®B760 Chipset

• Memory
• 2 x DIMM, Max. 64GB, DDR4
  5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel^®Extreme Memory Profile (XMP)
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

• Graphics
• 1 x VGA port
  1 x HDMI^®port**
  * Graphics specifications may vary between CPU types. Please refer to intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMI^® 2.1.
• Expansion Slots
• Intel^®13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel^® B760 Chipset
  2 x PCIe 4.0 x1 slots
  Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel^®13^th & 12^th Gen Processors
  2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet
• 1 x Realtek 2.5Gb Ethernet

• USB
• Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A）
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports

• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

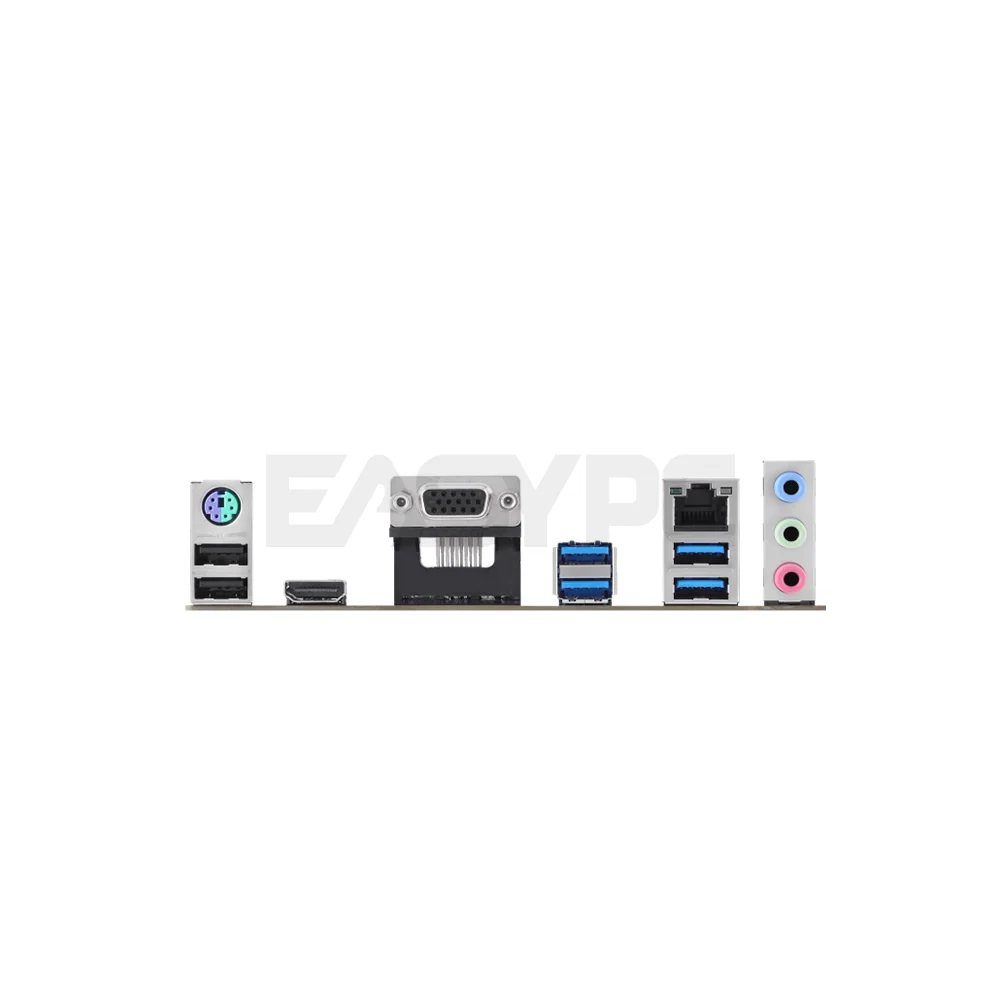

• Back Panel I/O Ports
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMI^®port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors
• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

• Special Features
• ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage Protection
  - SafeSlot Core
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS EZ DIY
  - ProCool
  ASUS Thermal Solution
  - VRM heatsink design
  Aura Sync
  - Aura RGB header
  - Addressable Gen 2 headers

• Software Features
• ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  - Fan Xpert
  - Power Saving
  AI Suite 3
  - DIGI+ VRM
  - PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode

• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability
• WOL by PME, PXE

• Accessories
• Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  2 x M.2 anchors
  Documentation
  1 x User guide

• Operating System
• Windows^® 11, Windows^® 10 64-bit

• Form Factor
• mATX Form Factor
  6 inch x 8.3 inch (24.4cm x 21.1cm)
