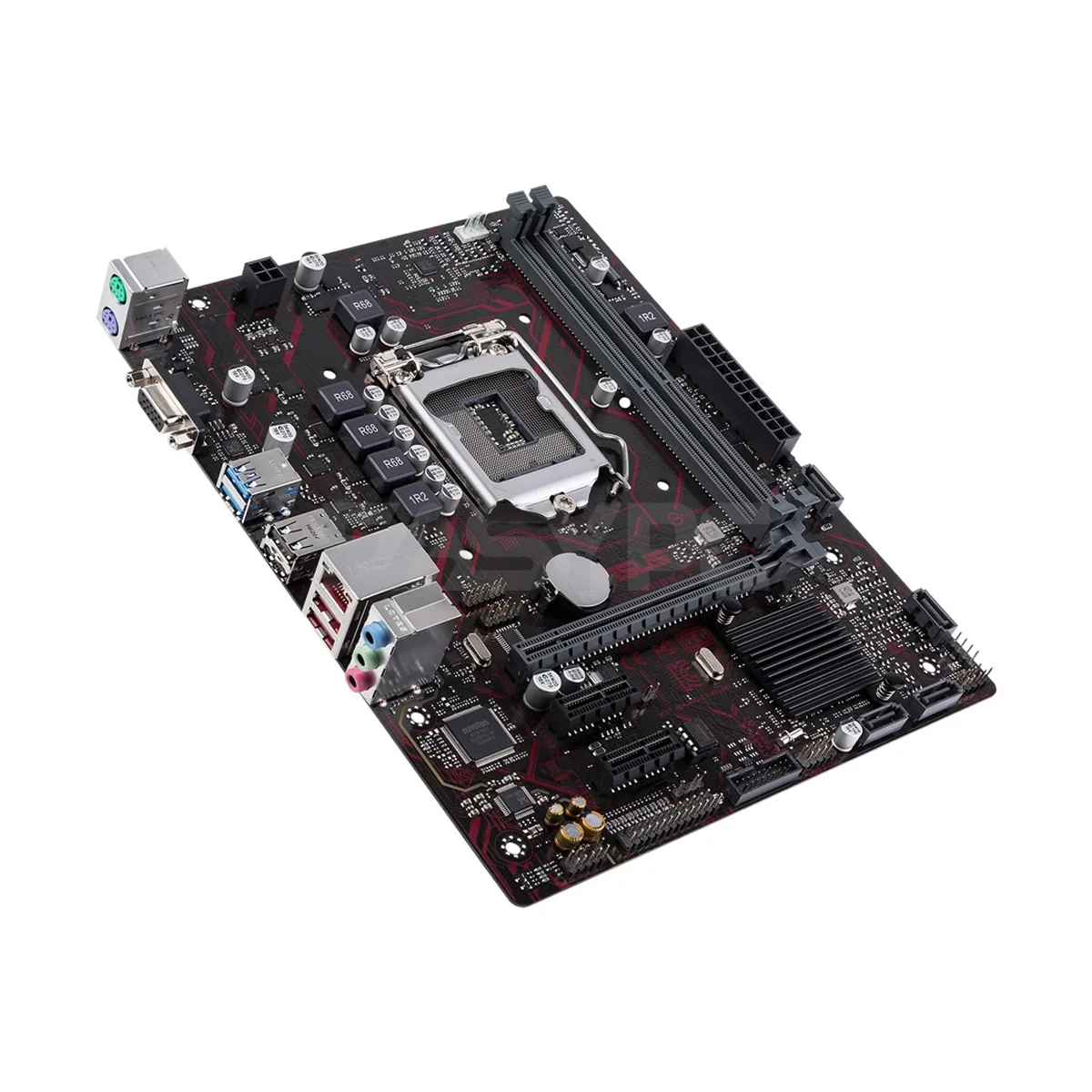

Asus EX H110M V Motherboard Socket 1151 Ddr4

Asus EX-H110M-V Motherboard Socket 1151 DDR4

Key Features

• Intel Socket 1151 Supports 7th and 6th Generation Intel Core i7 / Core i5 / Core i3, Pentium, and Celeron processors.
• Intel H110 Chipset Reliable LGA 1151 platform.
• DDR4 Memory 2 x DIMM slots supporting DDR4 2400/2133 MHz, up to a maximum of 32GB.
• Expansion Slots 1 x PCIe 3.0/2.0 x16 slot plus 2 x PCIe 2.0 x1 slots.
• Storage 4 x SATA 6Gb/s connectors for hard drives and SSDs.
• Gigabit LAN Realtek RTL8111H controller for wired networking.
• 7.1-Channel Audio Realtek ALC887 High Definition Audio CODEC.
• Micro-ATX Form Factor Compact mATX layout.

Technical Specifications

Model	Asus EX-H110M-V
CPU Socket	Intel Socket 1151 (LGA 1151)
CPU Support	7th / 6th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors
Chipset	Intel H110
Memory	2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz
Graphics Output	1 x D-Sub (VGA), supports up to 1920 x 1200 @ 60 Hz
Expansion Slots	1 x PCIe 3.0/2.0 x16, 2 x PCIe 2.0 x1
Storage	4 x SATA 6Gb/s connectors
LAN	Realtek RTL8111H Gigabit LAN (RJ45)
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC
USB 3.0	6 x USB 3.0 (2 at back panel, 4 via mid-board headers)
USB 2.0	6 x USB 2.0 (4 at back panel, 2 via mid-board header)
Form Factor	Micro-ATX
Dimensions	22.6 cm x 18.03 cm

Warranty Information

This product is covered by 1 Year EasyFIX Warranty. For complete warranty terms and conditions, please contact our customer support.

*Specifications are based on manufacturer data. Actual product may vary.
