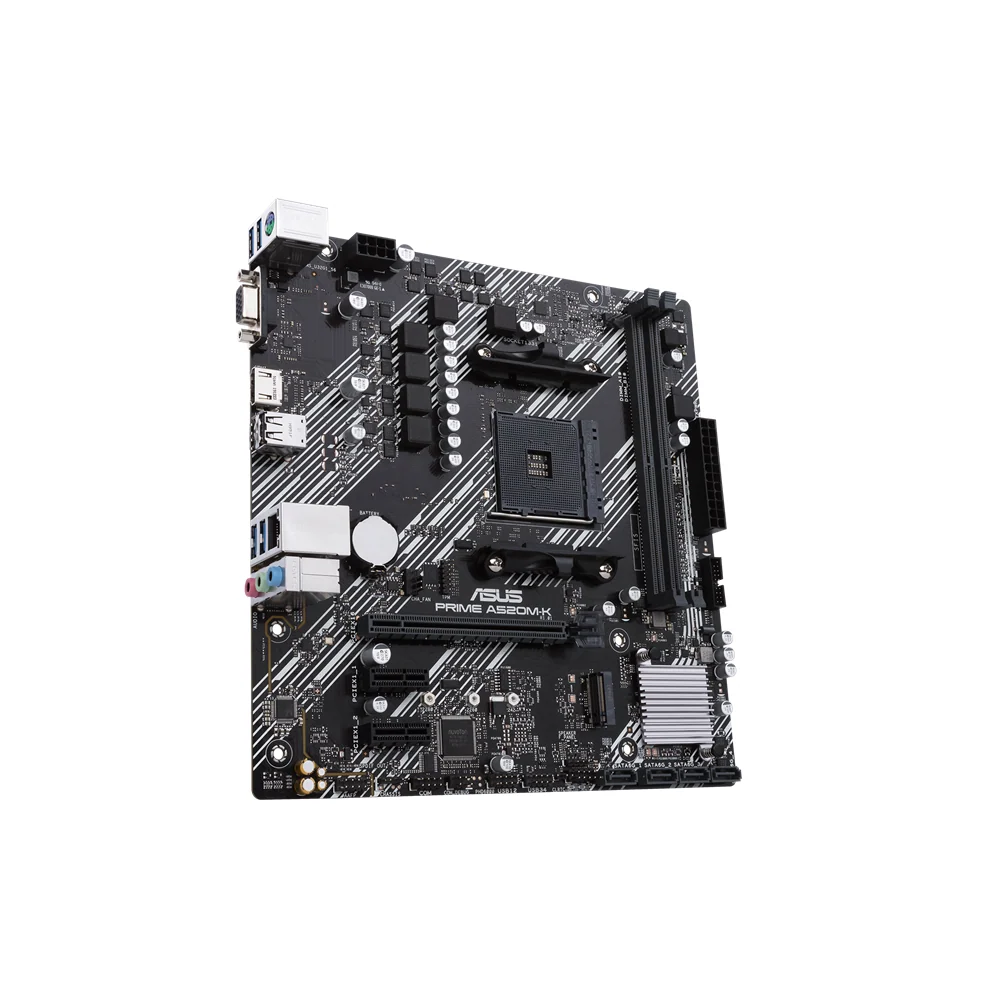

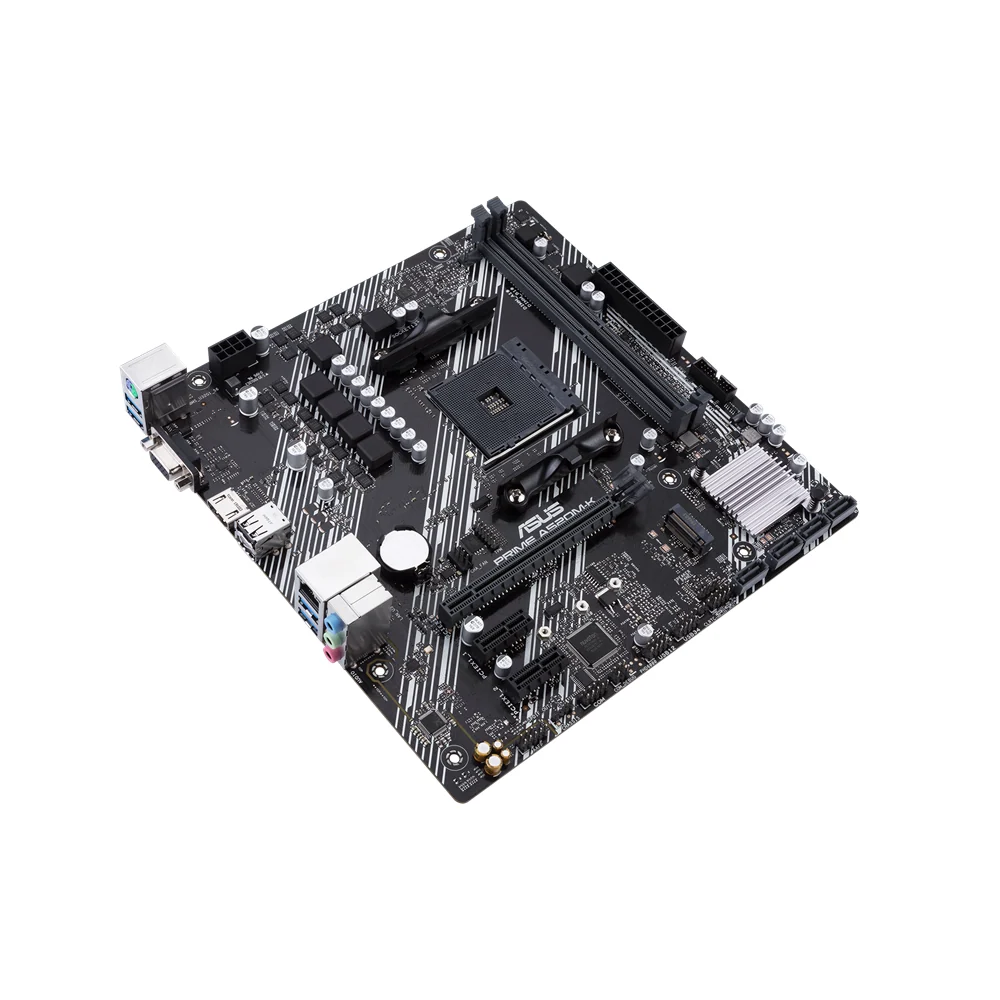

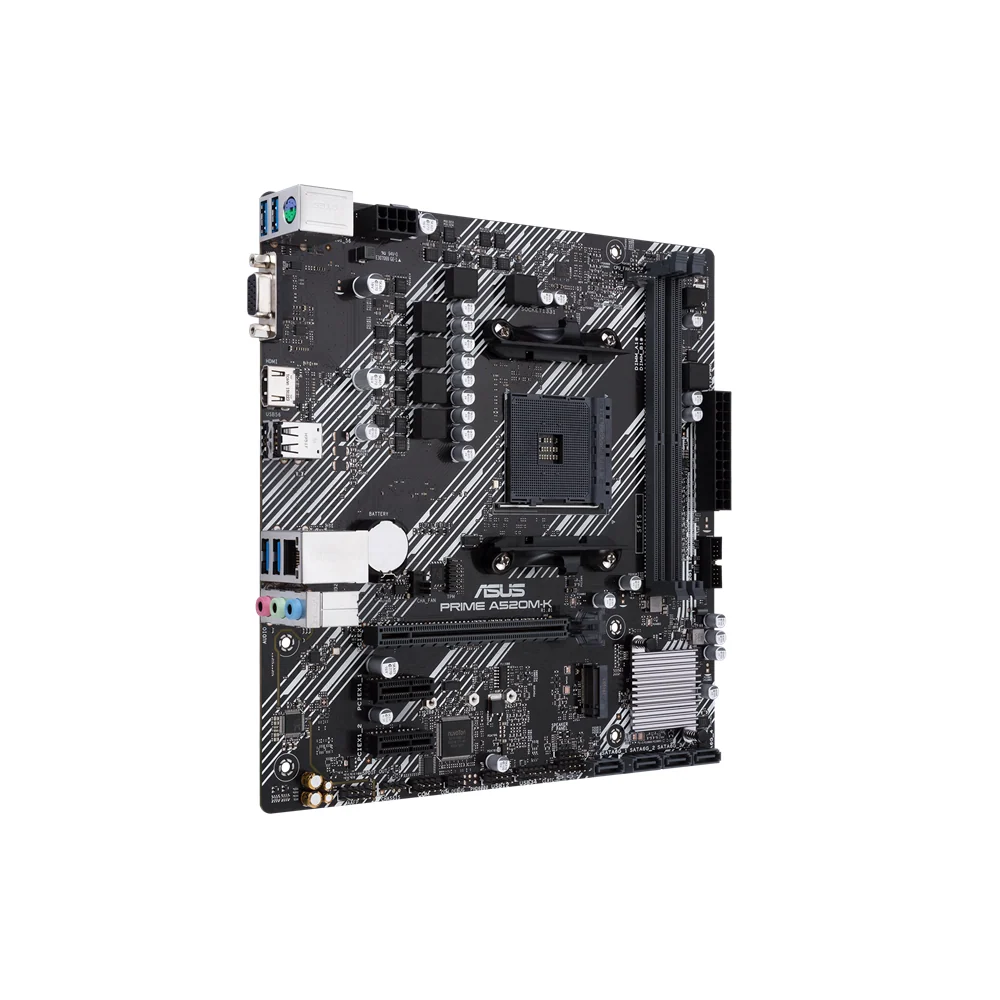

Asus Prime A520M-K/CSM AM4 AMD Motherboard

Asus Prime A520M-K/CSM AM4 AMD Motherboard

Key Features

• AMD AM4 Socket for Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 / 3000 G-Series Desktop Processors
• AMD A520 Chipset
• 2 x DDR4 DIMM slots, Max 64GB, Dual Channel (up to DDR4 5100 O.C.)
• 1 x M.2 slot (PCIe 3.0 x4 & SATA modes) + 4 x SATA 6Gb/s ports with RAID 0/1/10
• PCIe 3.0 expansion: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• HDMI 2.1 (4K@60Hz) and D-Sub display outputs
• Realtek 1Gb Ethernet with ASUS LANGuard
• ASUS 5X Protection III and comprehensive cooling with aluminum heatsink

Technical Specifications

Model	PRIME A520M-K/CSM
CPU Socket	AMD AM4
CPU Support	Ryzen 5000 / 5000 G / 4000 G / 3000 / 3000 G Series
Chipset	AMD A520
Memory	2 x DIMM, Max 64GB, DDR4 (up to 5100 O.C.)
Memory Architecture	Dual Channel
Graphics Output	1 x D-Sub, 1 x HDMI 2.1 (4K@60Hz)
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage	1 x M.2 (Type 2242/2260/2280, PCIe 3.0 x4 & SATA), 4 x SATA 6Gb/s
RAID Support	RAID 0, 1, 10
LAN	Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
Audio	Realtek ALC887/897 7.1 Surround High Definition Audio
USB Ports	4 x USB 3.2 Gen 1 (rear), 2 x USB 2.0 (rear) + front headers

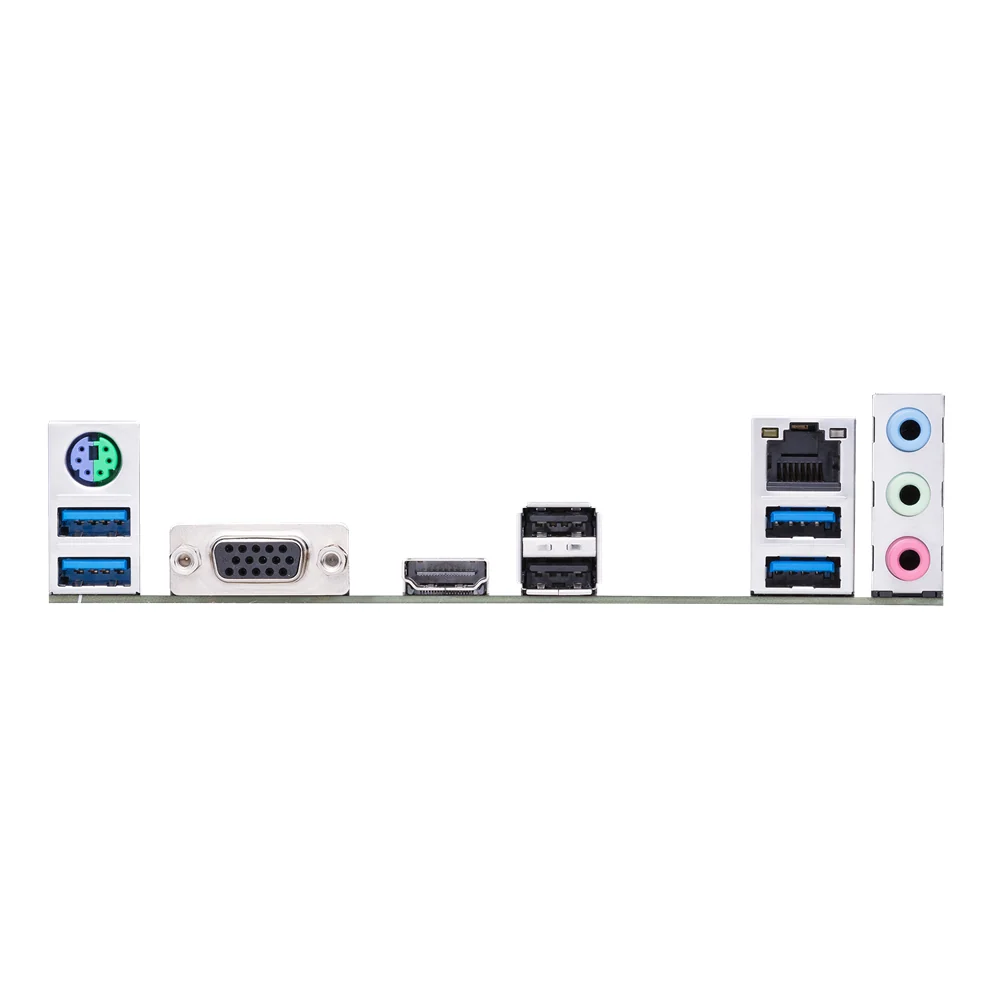

Back I/O	4 x USB 3.2 Gen 1, PS/2 combo, D-Sub, HDMI, RJ45 LAN, 2 x USB 2.0, 3 x Audio jacks
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX (22.6 cm x 22.1 cm)

Shipping Dimensions

Box Length	26 cm
Box Width	27 cm
Box Height	5 cm
Weight	0.82 kg

Warranty Information

This product is covered by 1 Year EasyFIX Warranty. For complete warranty terms and conditions, please contact our customer support.

*Specifications are based on manufacturer data. Actual product may vary.
