Biostar H310MHP Socket 1151 Ddr4 Motherboard

Product Specifications

• Chipset Intel: H310
• CPU SUPPORT: Socket 1151 for 9th / 8th Gen Intel® Core, Pentium, and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt, please refer to www.biostar.com.tw for the CPU support list.

• MEMORY: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666, 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory, Each DIMM supports non-ECC 4/8/16GB DDR4 module, Please refer to www.biostar.com.tw for the Memory support list.
• INTEGRATED VIDEO: By CPU model, Supports DX12, Supports HDCP
• STORAGE: 4 x SATA III Connectors (6Gb/s)
• LAN: RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• AUDIO CODEC: ALC887, 7.1 Channels, High Definition Audio, Support HD Audio
• USB: 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header), 6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
• EXPANSION SLOT: 2x PCIe 2.0 x1 Slot, 1x PCIe 3.0 x16 Slot

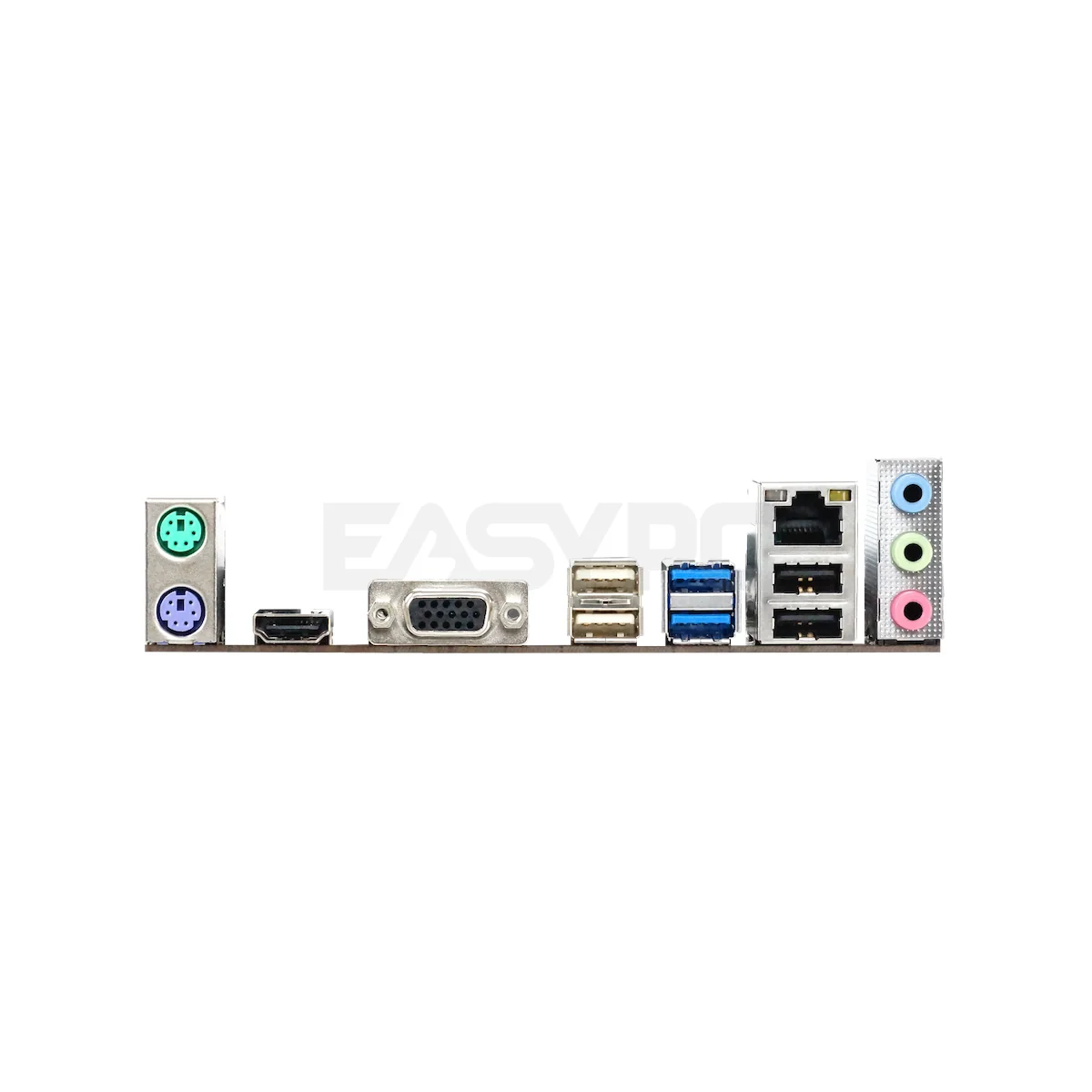

• REAR I/O: 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x HDMI Port, 1x VGA Port, 1x LAN Port
• 4x USB 2.0 Port, 2x USB 3.2(Gen1) Port, 3x Audio Jack
• INTERNAL I/O: 4x SATA III Connector, 1x USB 2.0 Header (each header supports 2 USB 2.0 ports), 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports), 1x 8-Pin Power Connector, 1x 24-Pin Power Connector, 1x CPU Fan Connector, 1x System Fan Connector, 1x Front Panel Header, 1x Front Audio Header, 1x Clear CMOS Header, 1x COM Port Header
• DIMENSION: Micro ATX Form Factor Dimension: 226mm x 171mm (W x L)
• OS SUPPORT: Support Windows 7/ 10(64bit), ※Biostar reserves the right to add or remove support for any OS with or without notice.
