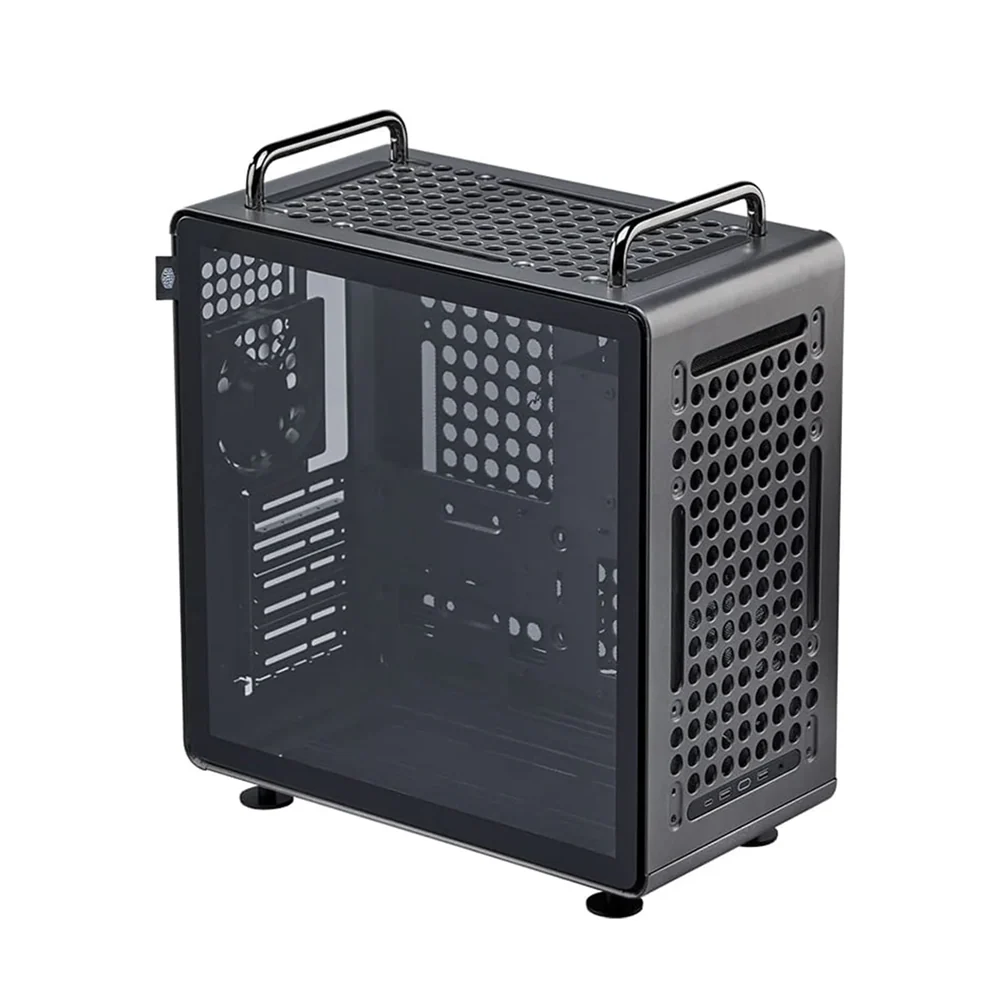

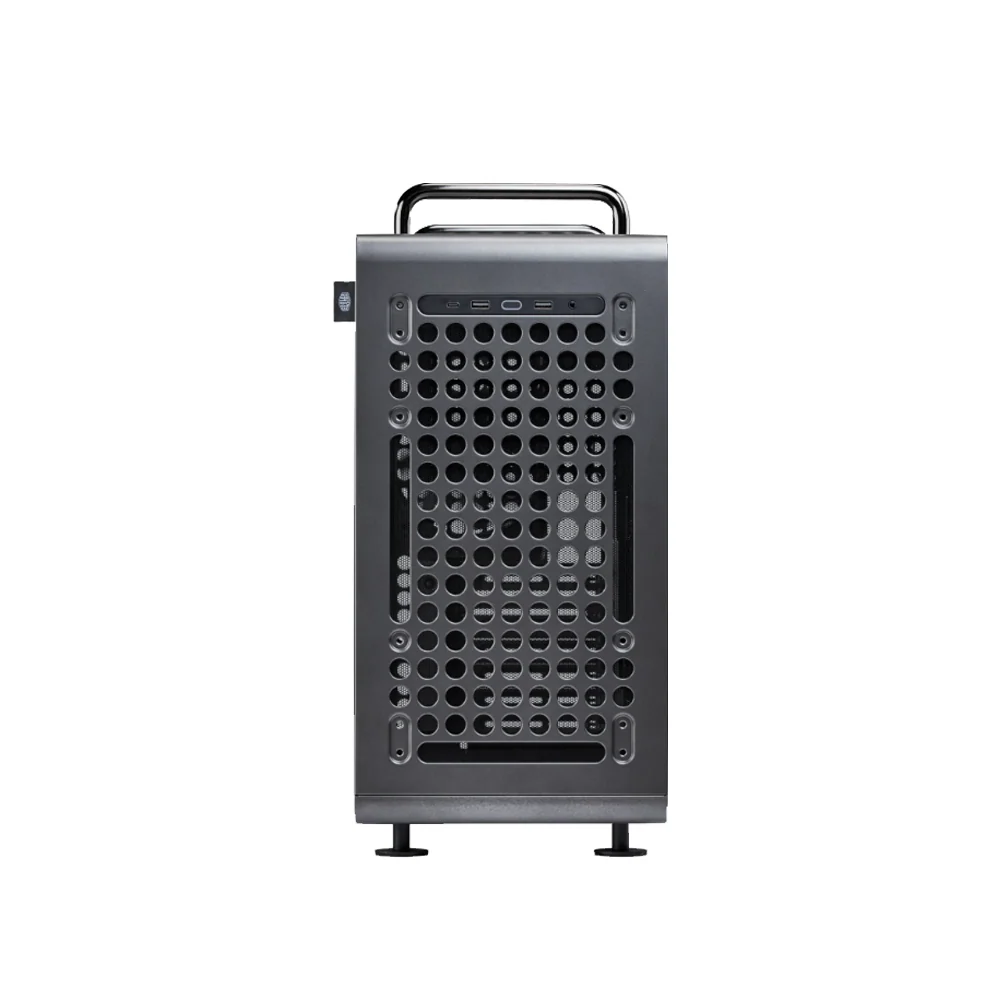

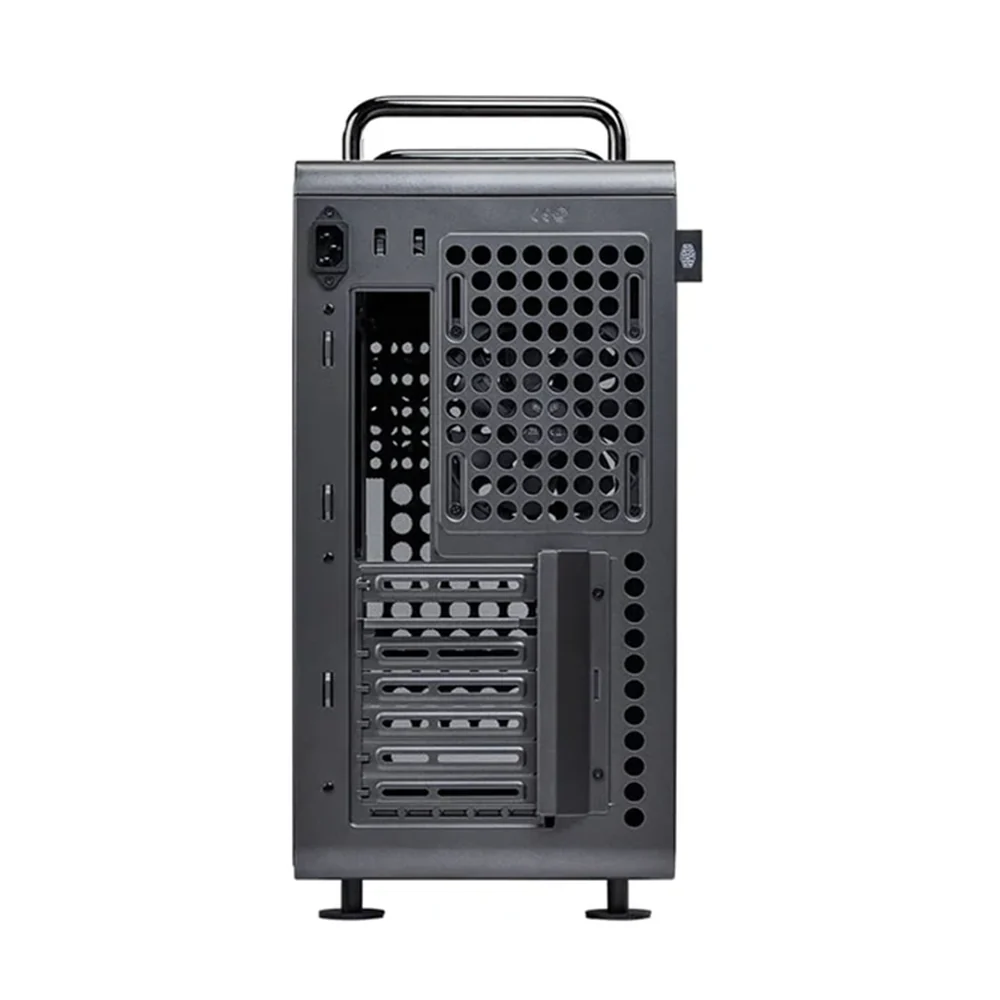

CoolerMaster Qube 540 Moonstone ATX PC Case

CoolerMaster Qube 540 Moonstone ATX PC Case

Key Features

• ATX / SFX
• MID TOWER

Technical Specifications

Product Name QUBE 540
Model Number Stardust Iron	Q540-MGNN-S00
Moonstone	Q540-LGNN-S00
Color(s) Stardust Iron / Moonstone
Materials	Exterior Steel
Material	Side Panel (Right) Steel
Material	Side Panel (Left) TG
Dimensions (L x W x H) Incl. Protrusions	438.5 x 225 x 492.1 mm
Excl. Protrusions	425 x 225 x 425 mm
Volume 40.64 L (without protrusions)
48.55 L (with panel, protrusions and feet)
Motherboard Support ITX / M-ATX / ATX / E-ATX (up to 280 mm)
Expansion Slots 7
Drive Bays – 5.25" N/A
Drive Bays – 3.5" 1 (Shared 3.5" and 2.5" mounting on PSU bracket)
Drive Bays – 2.5" 2 (Max. 5)
I/O Panel – USB 2 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
I/O Panel – Audio 1 x 3.5mm Mic / Audio Combo Jack
Fan Support – Front 3 x 120mm (without I/O panel) / 2 x 140mm
Fan Support – Top 3 x 120mm (without I/O panel) / 2 x 140mm
Fan Support – Rear 1 x 120mm
Fan Support – Bottom 3 x 120mm / 2 x 140mm
Preinstalled Fans – Front N/A
Preinstalled Fans – Top N/A
Preinstalled Fans – Rear 1 x 120mm Black Fan
Radiator Support – Front 140 / 280 / 360 mm (without I/O panel)
Radiator Support – Top 140 / 280 / 360 mm (without I/O panel)
Radiator Support – Rear 120 mm
Radiator Support – Bottom 140 / 280 / 360 mm (without I/O panel)
Clearance – CPU Cooler 172 mm
Clearance – Power Supply 200 mm
Clearance – Graphics Card 415 mm (without front fan)
Cable Routing – Behind Motherboard Tray 27 mm
Dust Filters Top / Bottom / Front
Power Supply Support ATX / SFX
Series QUBE Series
Size Mid Tower

Warranty Information

This product is covered by the manufacturer's standard warranty (NO) from COOLERMASTER. For warranty claims, please contact our customer support.
