Corsair CX550 550 watts 80 Plus Bronze Power Supply
The Corsair CX550 delivers 550 watts of continuous power with 80 Plus Bronze efficiency certification, achieving up to 88% energy efficiency at typical loads. This non-modular ATX power supply features a thermally controlled 120mm sleeve-bearing fan that adjusts speed based on internal temperature, maintaining quiet operation during low-to-moderate workloads. With ATX12V v2.31 compliance, the CX550 provides stable voltage rails for processors, graphics cards, and storage drives. Corsair rates this unit at 100,000 hours MTBF for reliable long-term operation in desktop PC systems.
Key Features
- 550W Continuous Power — Delivers 550 watts of stable, continuous output for mid-range desktop PC configurations
- 80 Plus Bronze Certified — Achieves up to 88% energy efficiency at typical loads, reducing electricity consumption and heat output

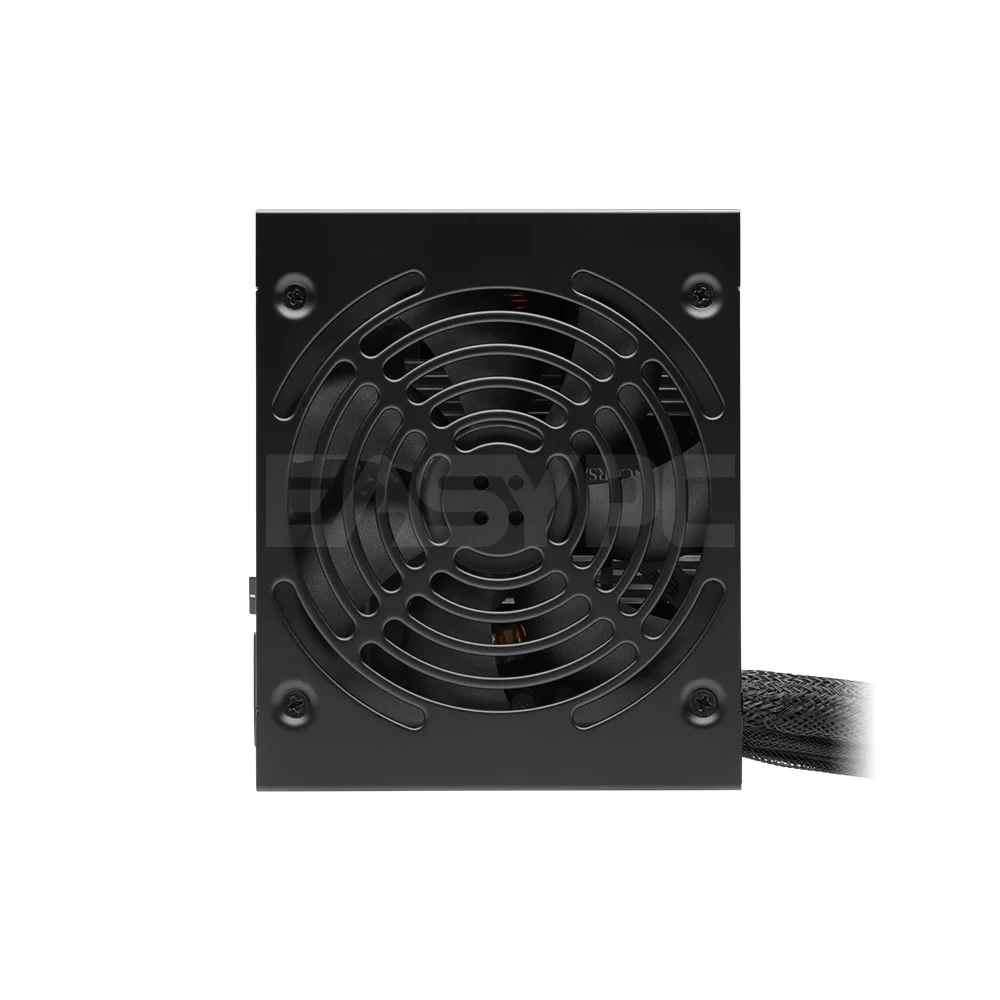

- Thermally Controlled 120mm Fan — Sleeve-bearing fan adjusts speed automatically based on temperature for quiet operation during light use
- ATX12V v2.31 Compliance — Meets current ATX power supply standards for broad compatibility with modern motherboards
- 100,000 Hours MTBF — Corsair-rated mean time between failures provides confidence in long-term reliability
- Dual PCIe Connectors — Two PCIe power connectors support mid-range graphics cards requiring supplemental power
Technical Specifications
| Brand | Corsair |
|---|---|
| Model | CX550 |
| Wattage | 550W (Continuous) |
| Efficiency | 80 Plus Bronze |
| ATX Version | ATX12V v2.31 |
| Form Factor | ATX |
| Modularity | Non-Modular |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| ATX Connector | 1x 24-pin |
| EPS Connector | 1x 8-pin (4+4) |
| PCIe Connector | 2x 8-pin (6+2) |
| SATA Connector | 3x SATA |
| MTBF | 100,000 hours |
| Weight | 2.28 kg |
Compatibility
- Motherboard: Standard ATX, Micro-ATX, and Mini-ITX boards with 24-pin main power
- CPU: Single 8-pin (4+4) EPS connector supports mainstream desktop processors
- GPU: Two 8-pin (6+2) PCIe connectors for graphics cards up to approximately 200W TDP
- Case: Fits standard ATX cases with bottom-mount PSU bay
