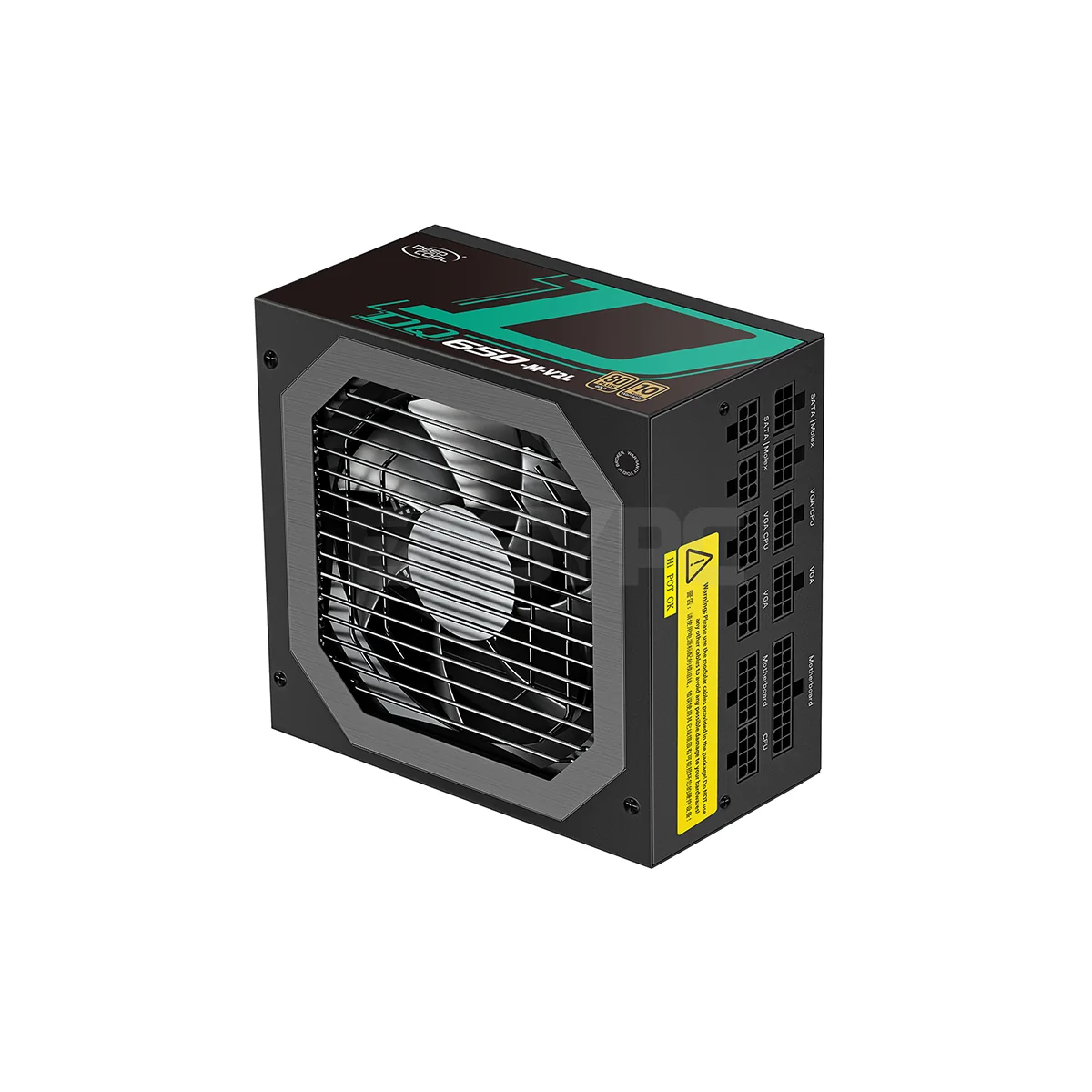

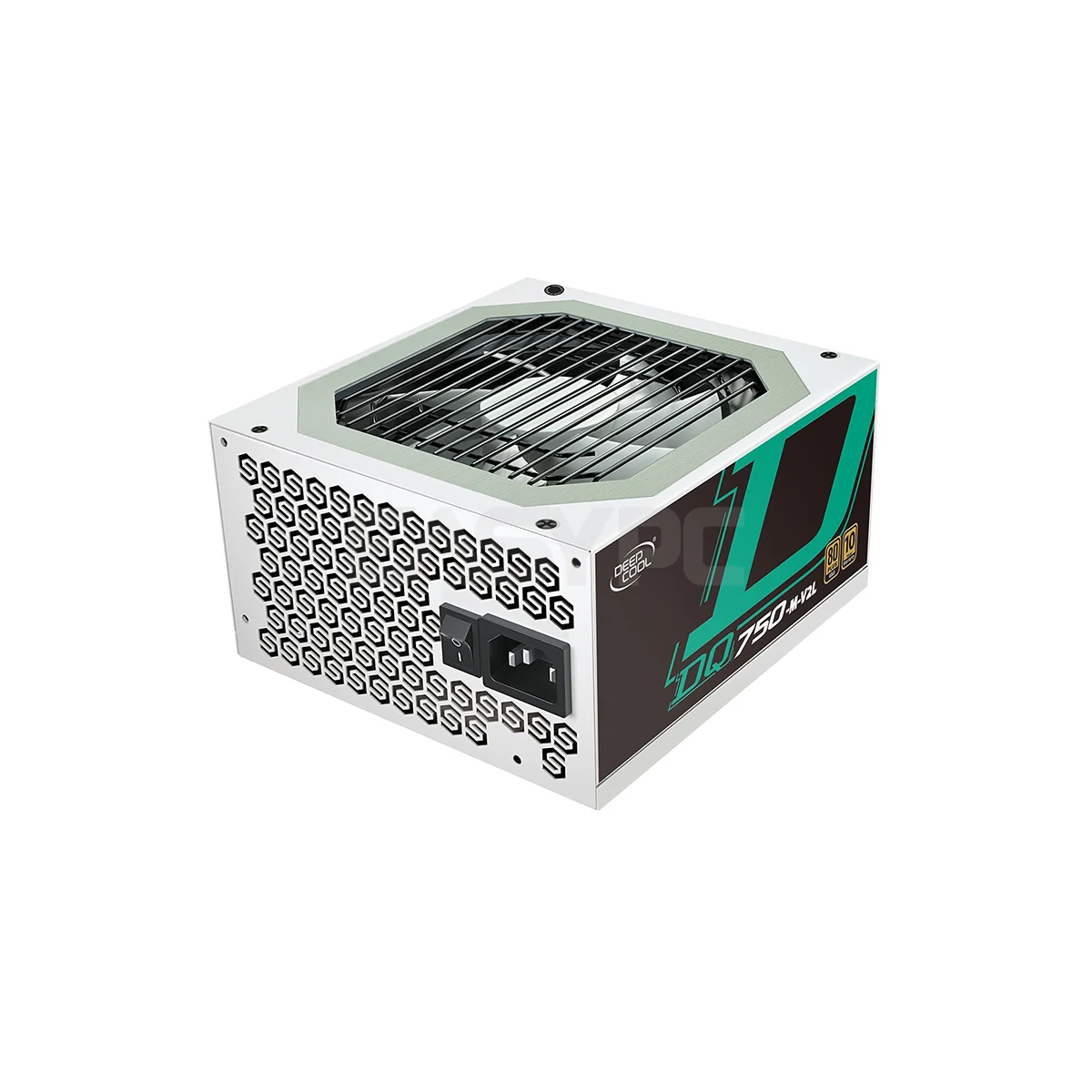

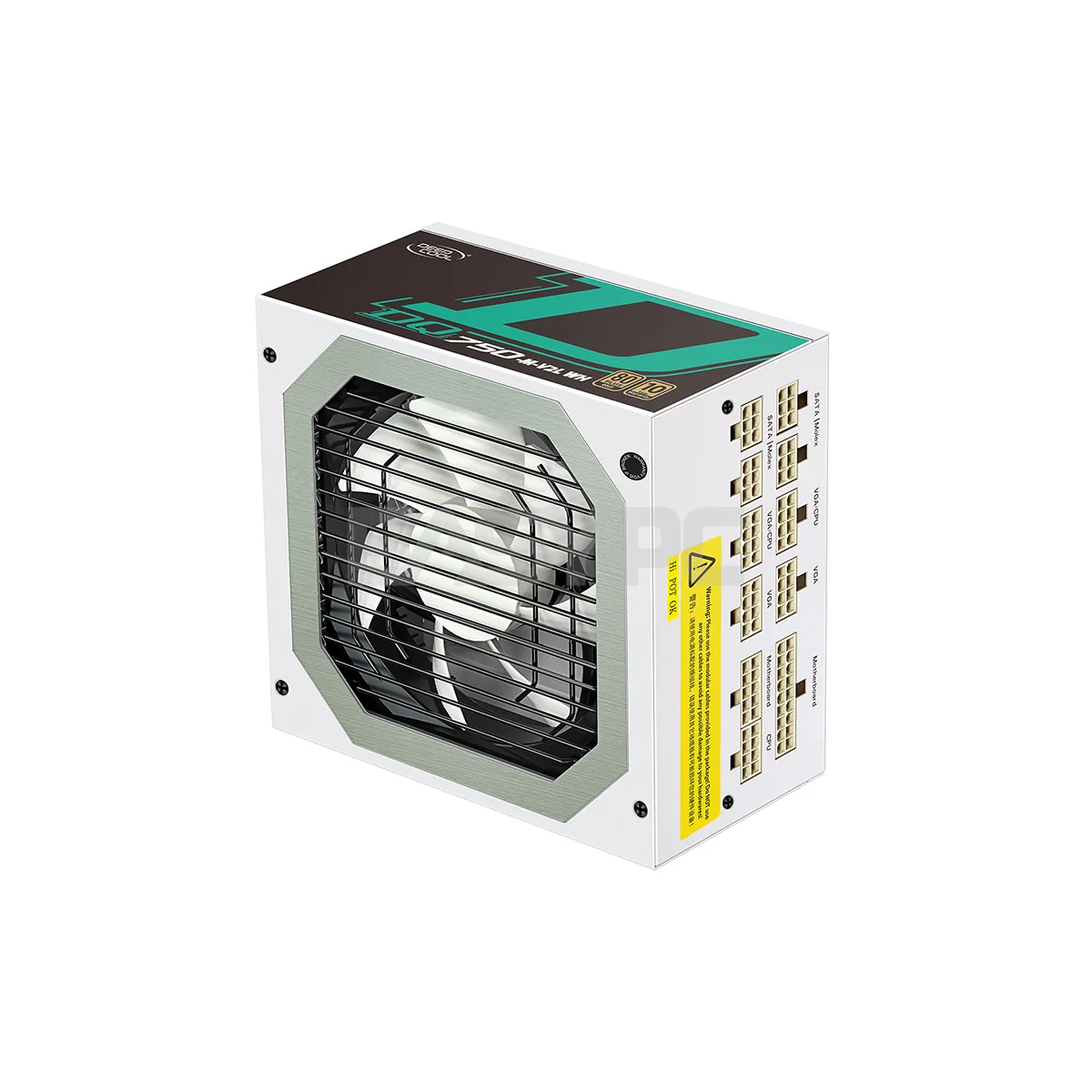

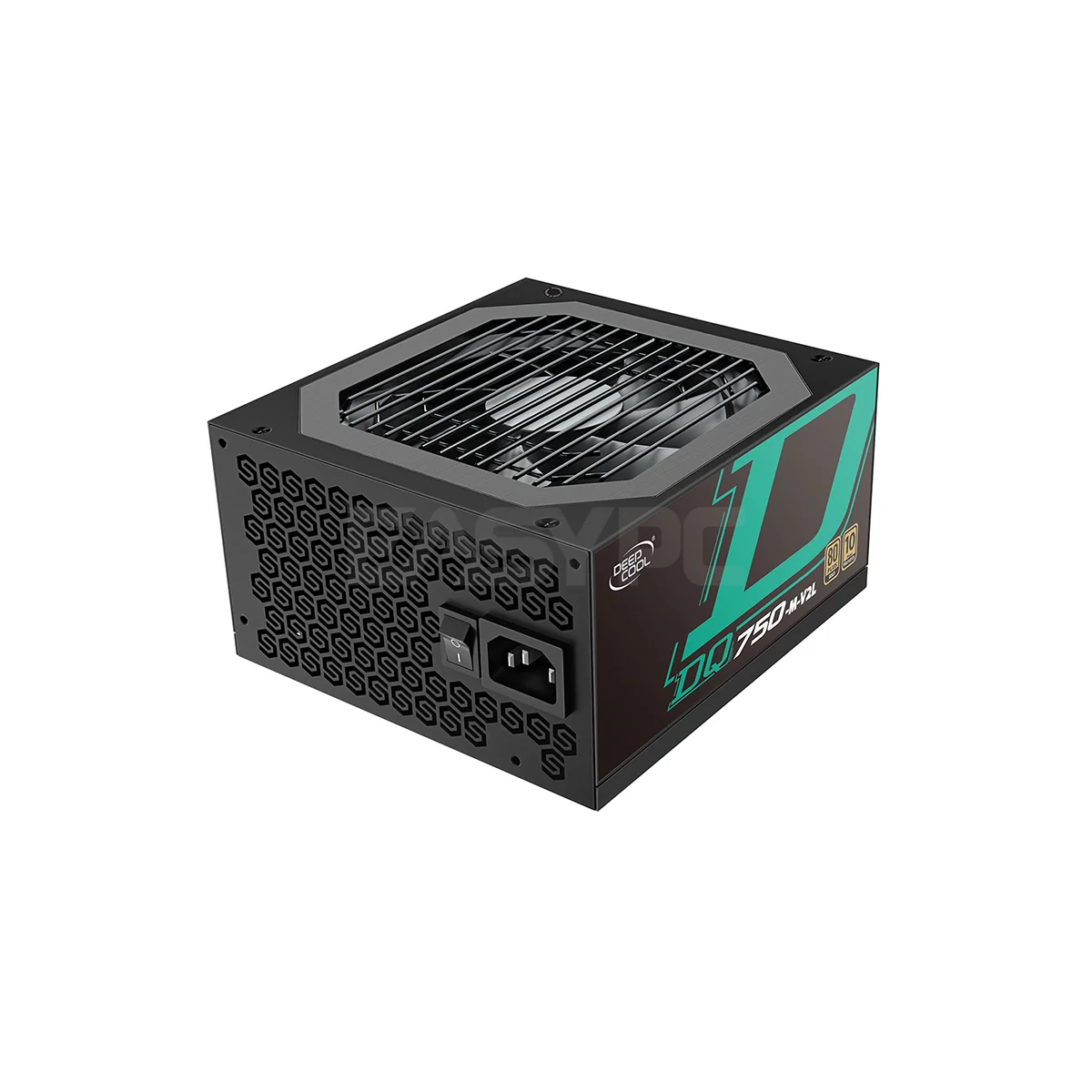

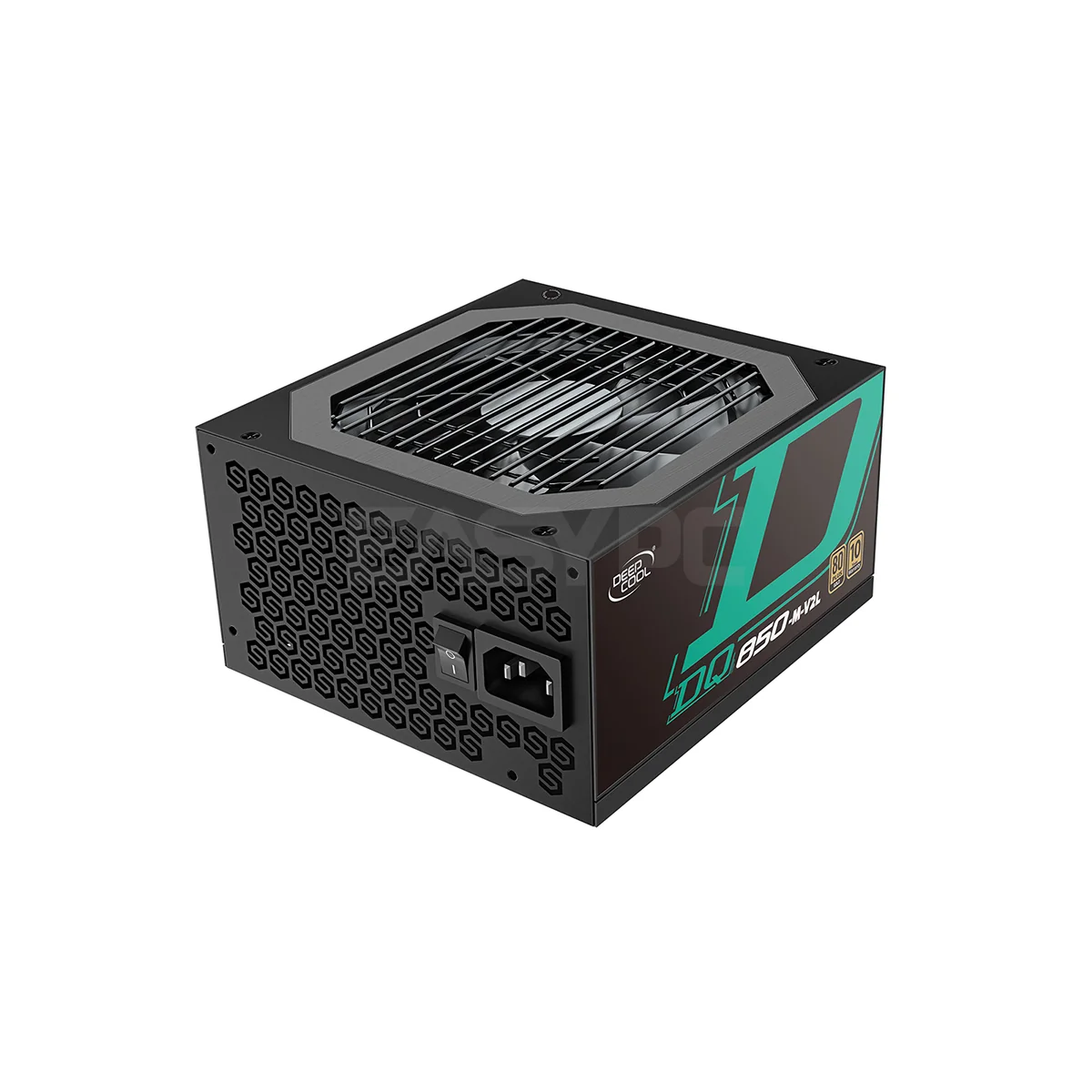

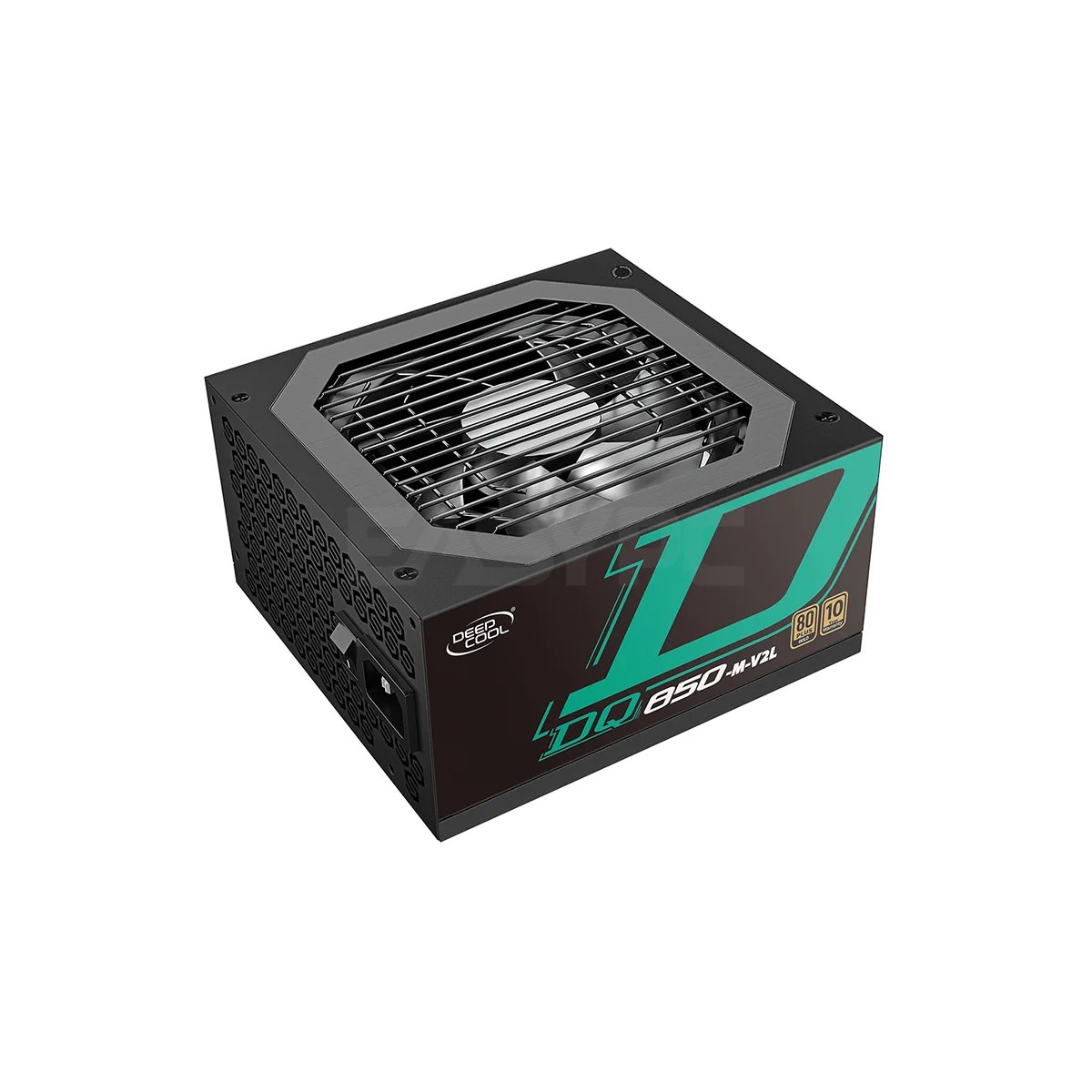

Deepcool V2L - 80+ Gold Full-modular Power Supply 4JTP

Product Specifications

  • Features:
  • 80 PLUS® GOLD certified - Up to 91.2% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter
  • Fully modular with flat cable design
  • CircuitShield™ — OVP / UVP / SCP / OPP / OTP

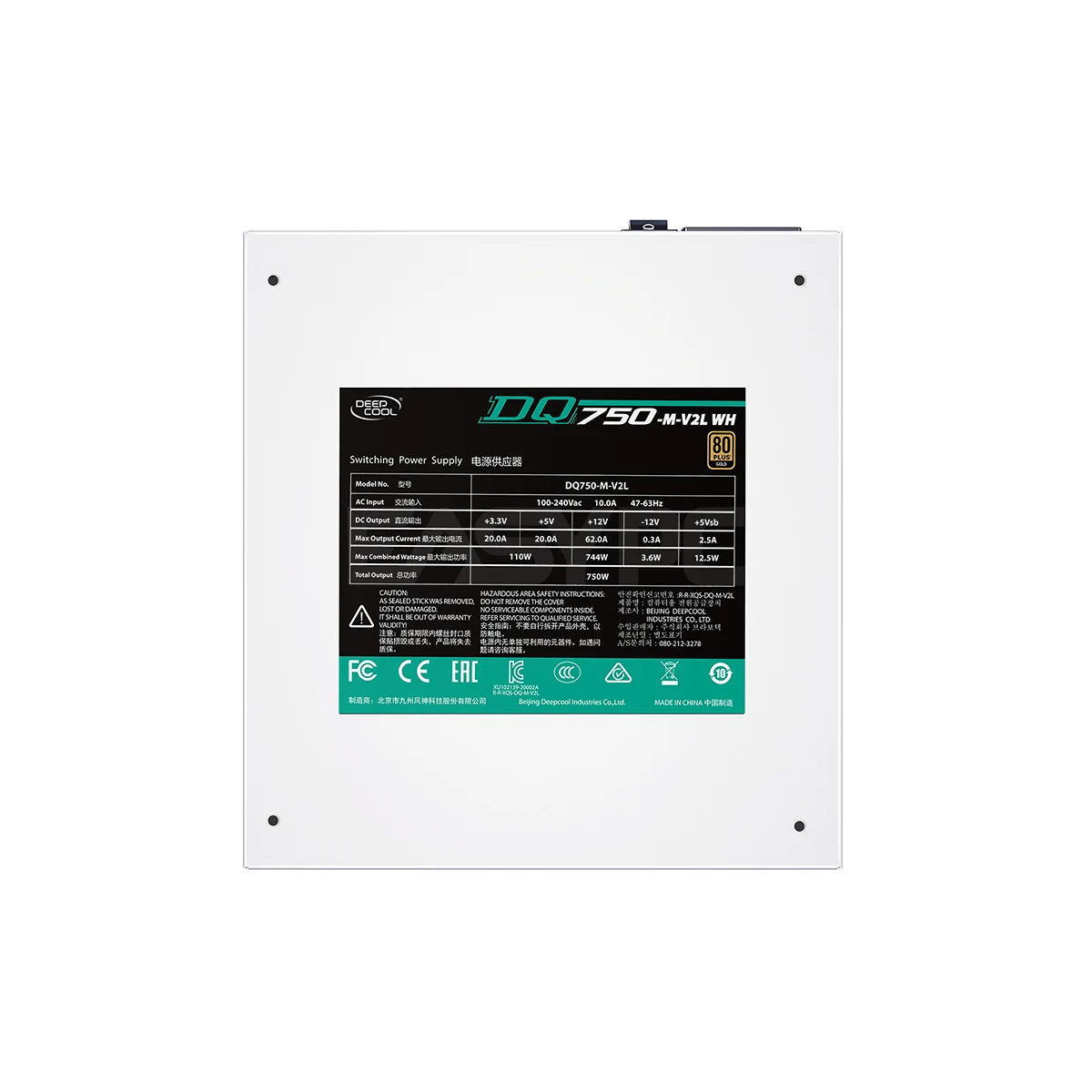

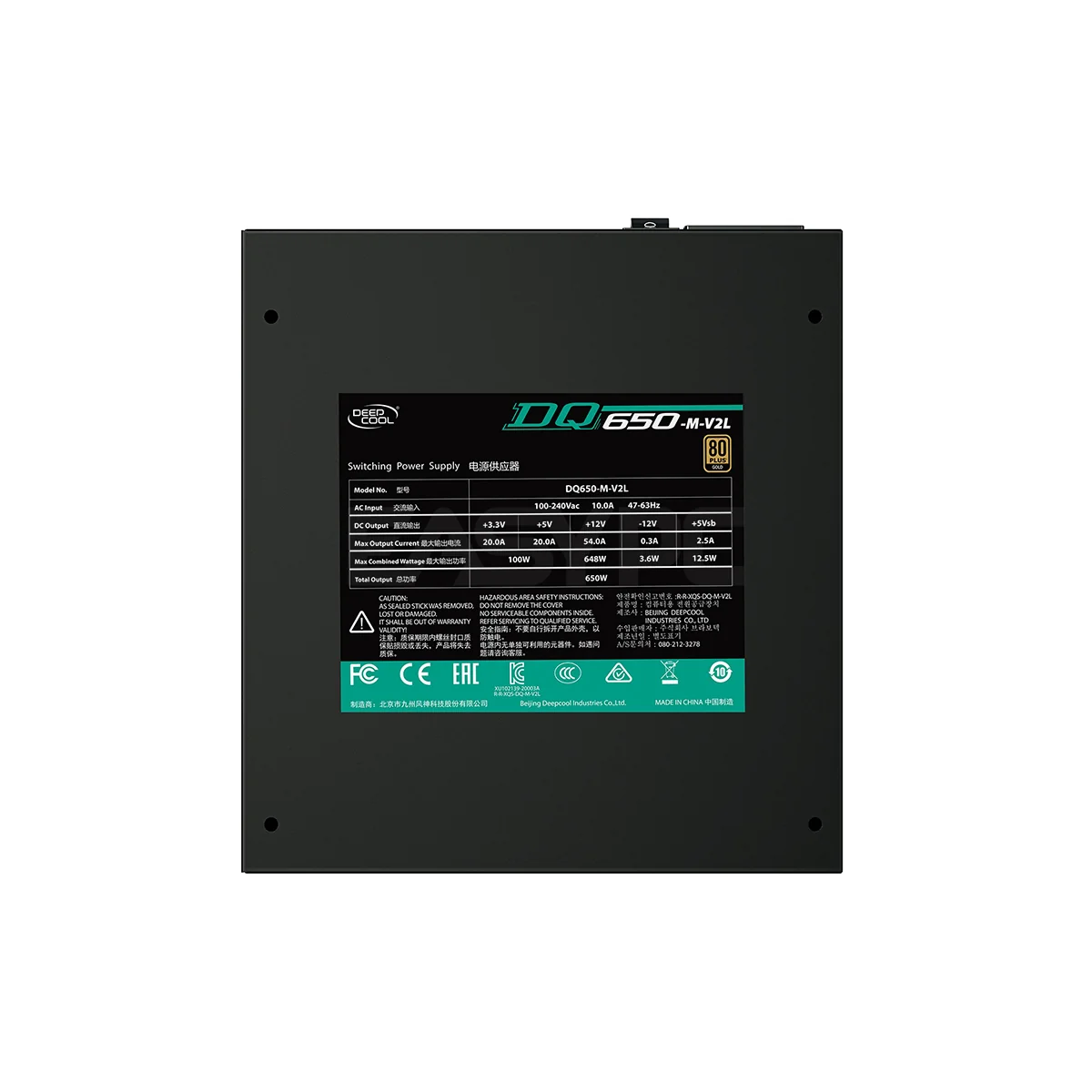

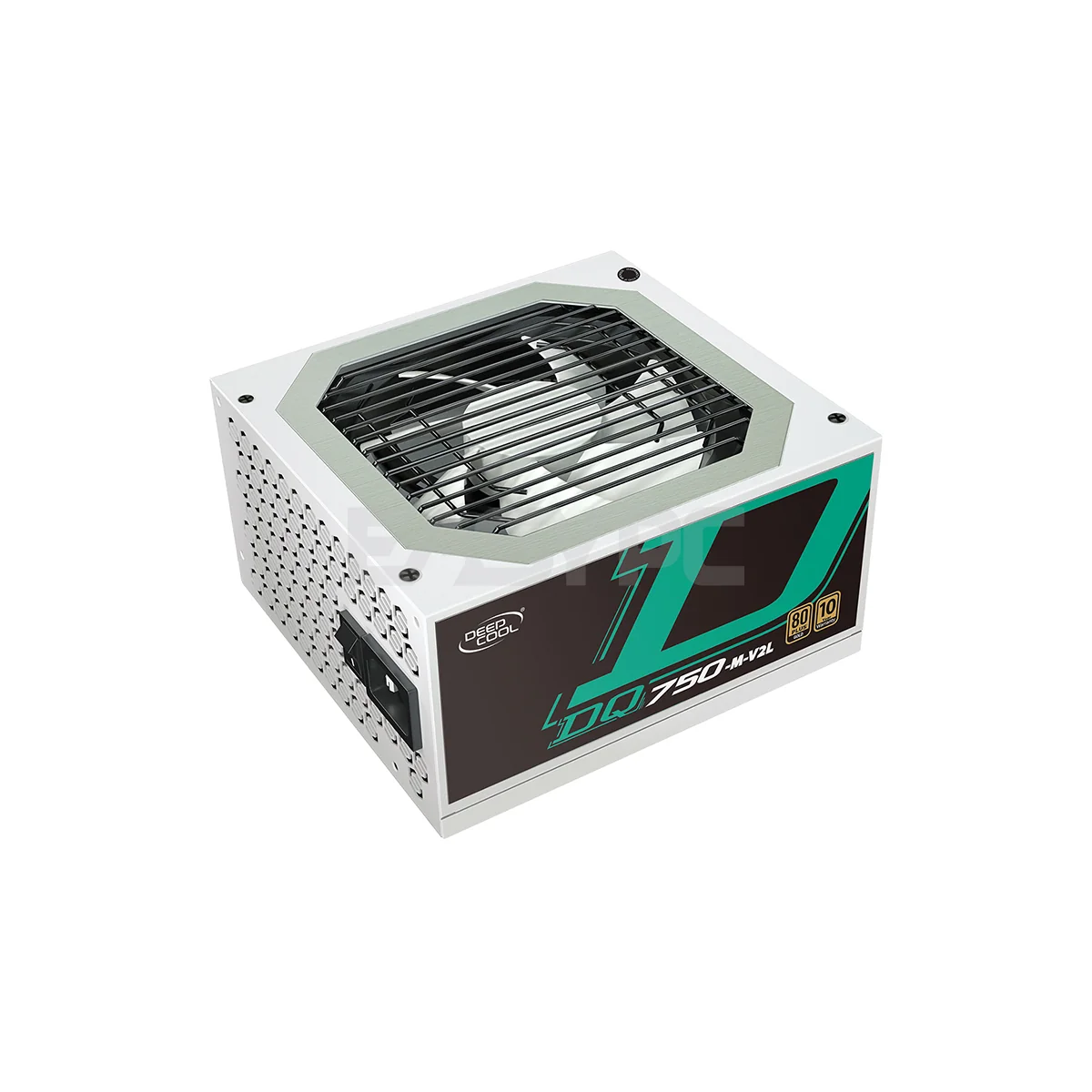

  • Model: DQ850-M-V2L/DQ750-M-V2L/ DQ650-M-V2L/DQ750-M-V2L WH
  • Type: ATX 12V V2.4
  • Certifications: 80PLUS GOLD
  • Dimension: 150Ă—160Ă—86mm (W Ă— L Ă— H)
  • Output Capacity: 850W/750W/650W/750W
  • Input Voltage: 100-240V
  • Input Current: 12.0A/10.0A
  • Input Frequency Range : 47-63Hz
  • Fan Size: 120mm
  • PFC: Active
  • Power Good Signal: 100-500ms
  • Hold Up Time: >16ms(80% Loading)
  • Efficiency: >90% Under Typical Load(50% Loading)
  • Standby Efficiency: ErP Lot 3 2014
  • Protection: OVP/UVP/OCP/SCP/OPP/OTP
  • Operation Temperature: 0-40°C
  • Regulatory: CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
  • MTBF: 100,000 Hours

Ideal For

  • Powering custom-built desktop PCs
  • System upgrades and new builds
  • Replacing an existing power supply unit
