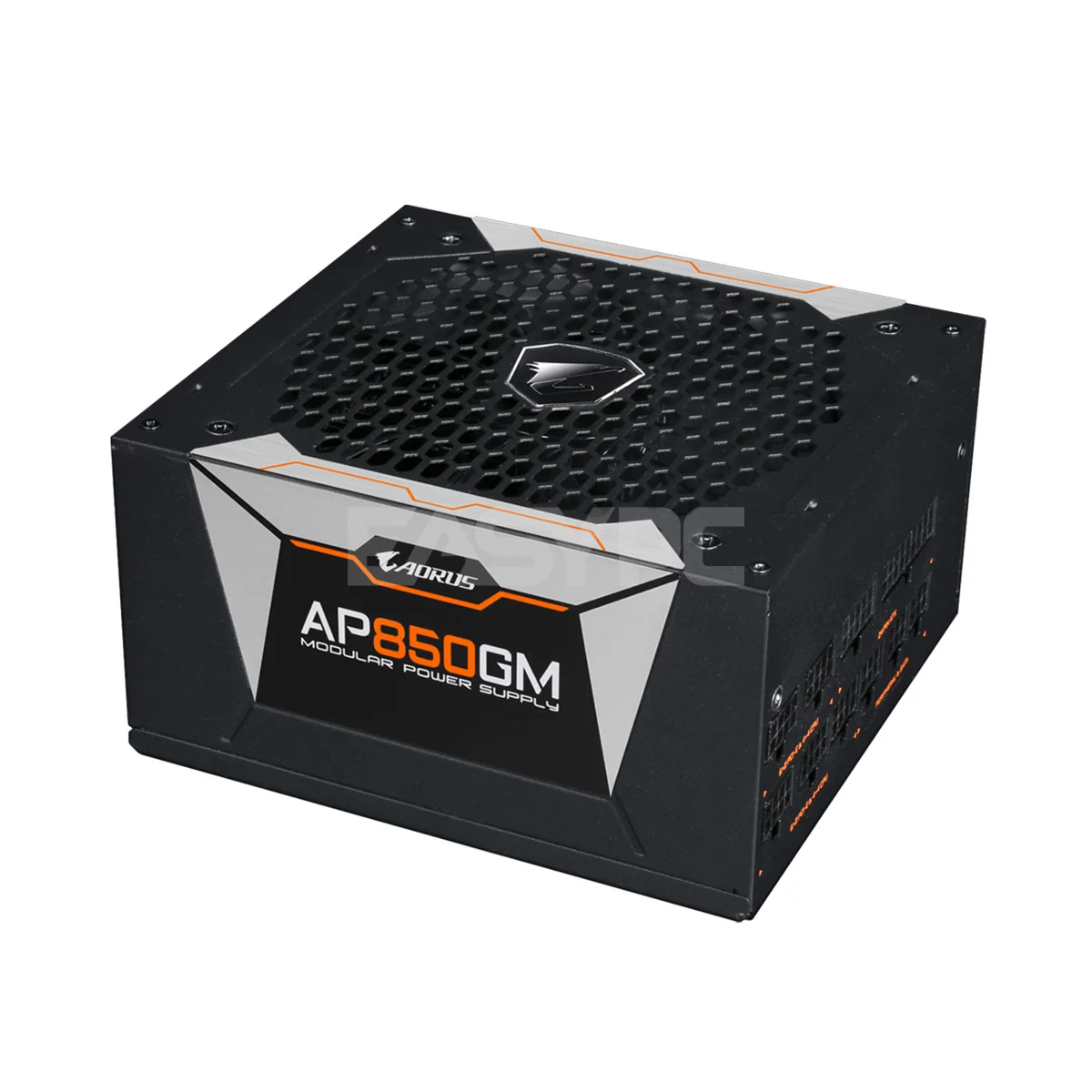

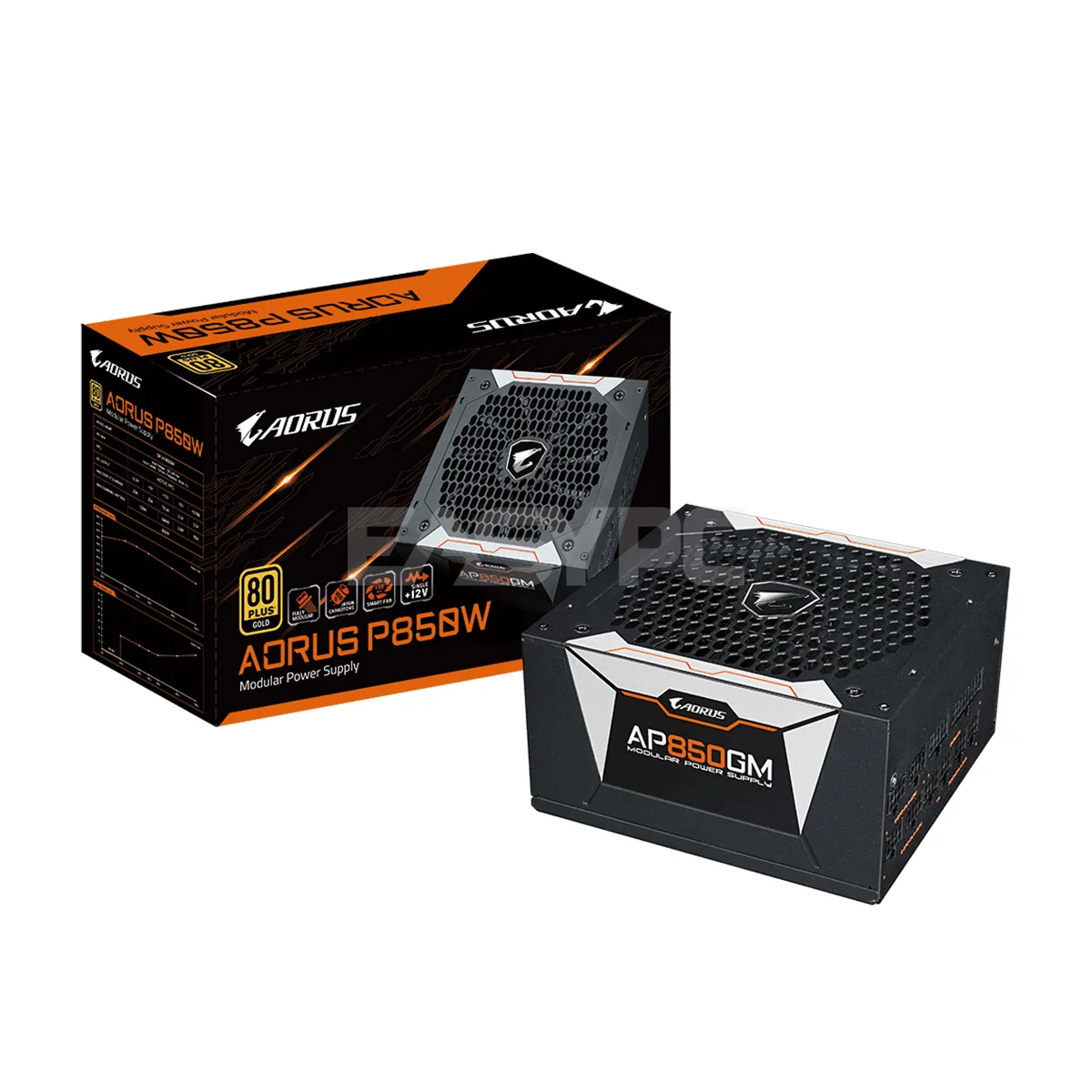

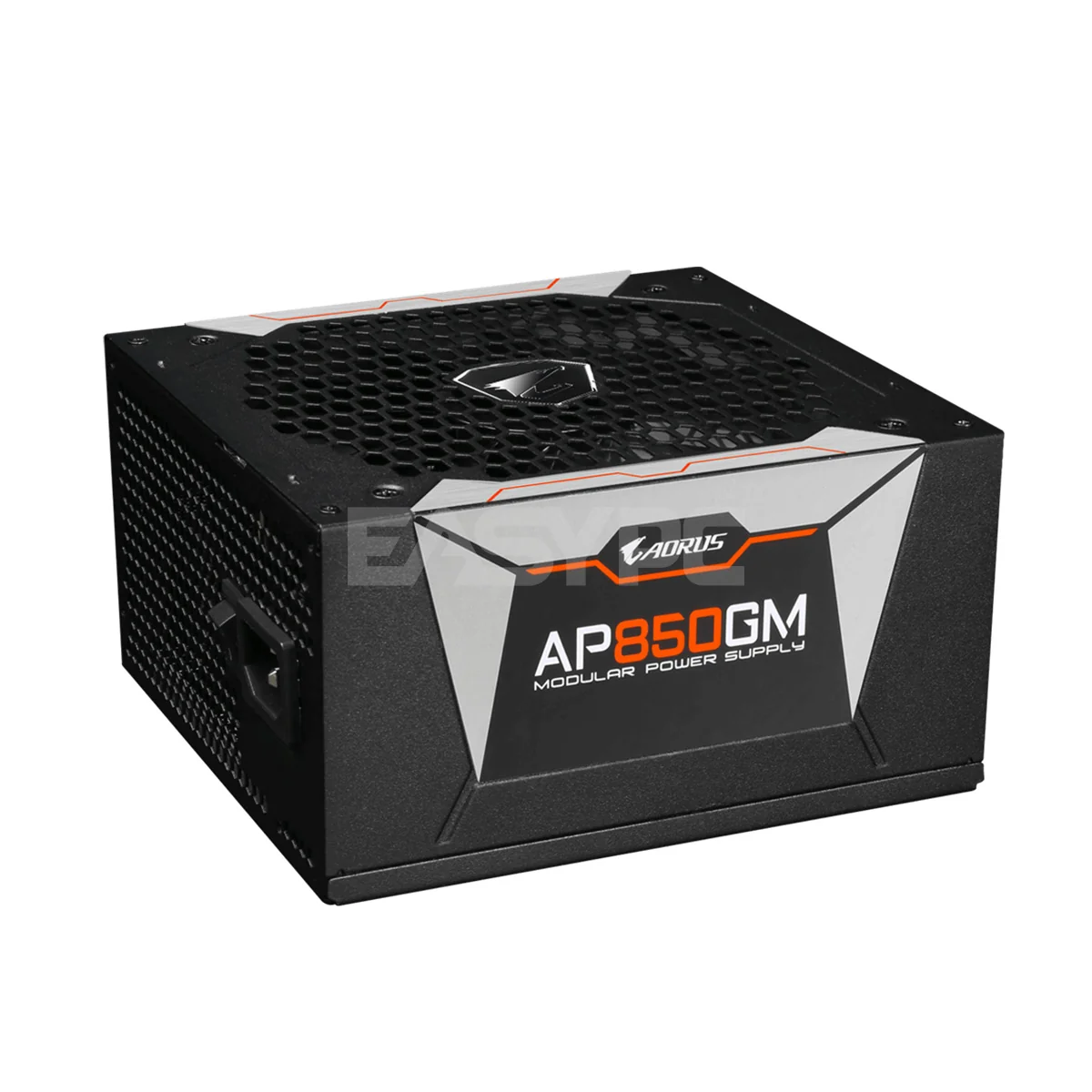

Gigabyte Aorus 850 watts Fully Modular 80 Plus Gold Power Supply
| Features | Fully Modular Design |
| High quality 100% Japanese Capacitors | |
| 135mm 2 ball bearing smart fan with fan stop function | |
| 80 PLUS Gold certified: above 90% efficiency at 50% load | |
| Single +12V rail | |
| OCP/OTP/OVP/OPP/UVP/SCP protection | |
| 10 years warranty (Adjusted according to different regions) | |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 1‎00-240 Vac (full range) |
| Input Current | 1‎0A |
| Input Frequency | 4‎7-63 Hz |
| Output Capacity | 8‎50W |
| Dimension | 1‎50 x 160 x 86mm |
| Fan Type | 1‎35mm Double ball bearing fan |
| 80 PLUS | Gold |
| Efficiency | 9‎0% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 1‎00ms ~ 150ms |
| Hold Up Time | > 16m sec at full load (115V) |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 650mm |
| CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 | |
| PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2 | |
| SATA x6 + 4 Pin Peripheral x2 : | |
| 550mm+100mm+100mm+100mm*1 | |
| 450mm+100mm+100mm+100mm *1 | |
| 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 | |
| 4 Pin Floppy x 1 : 100mm |
Ideal For
- Powering custom-built desktop PCs
- System upgrades and new builds
- Replacing an existing power supply unit
*Specifications are based on manufacturer data. Actual product may vary.
