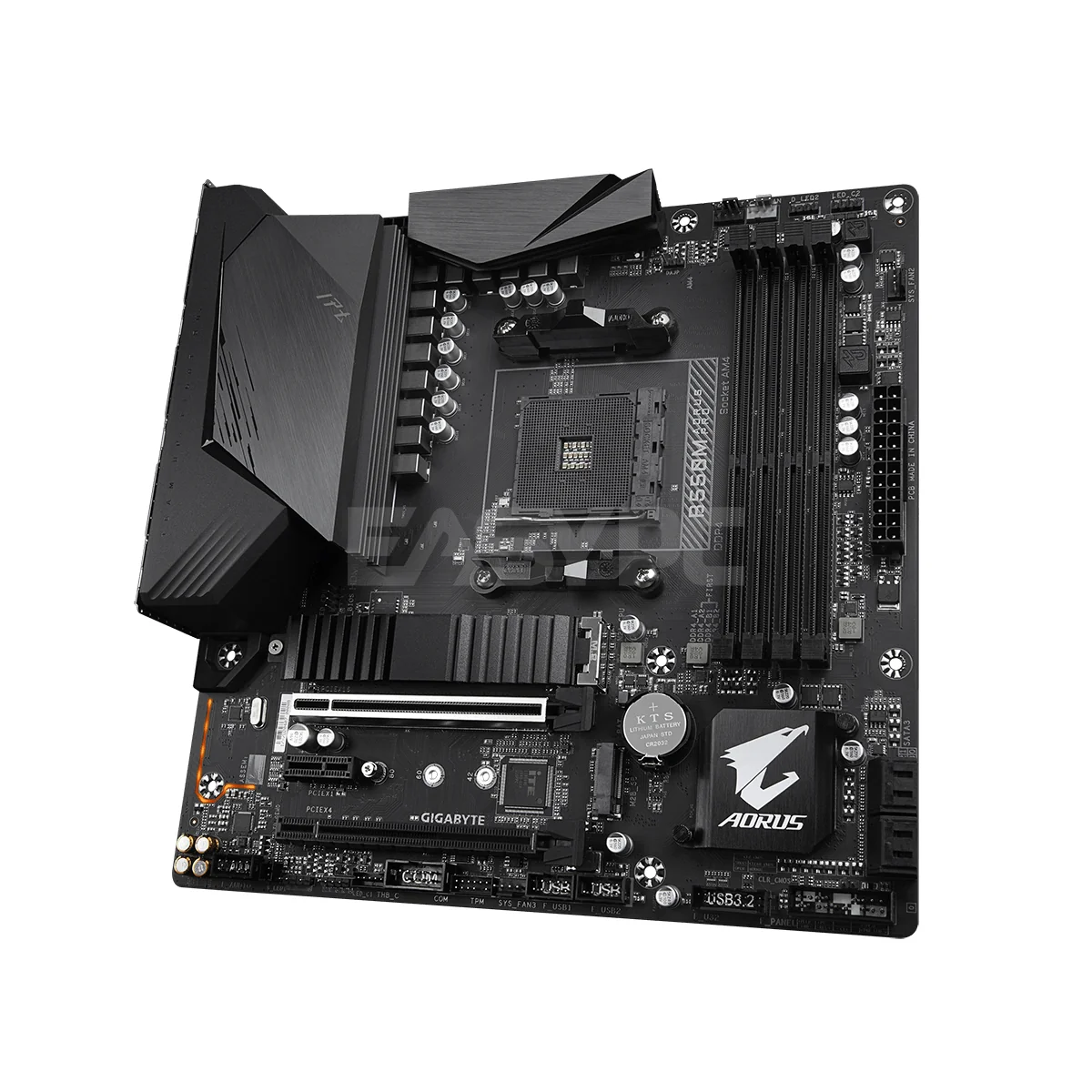

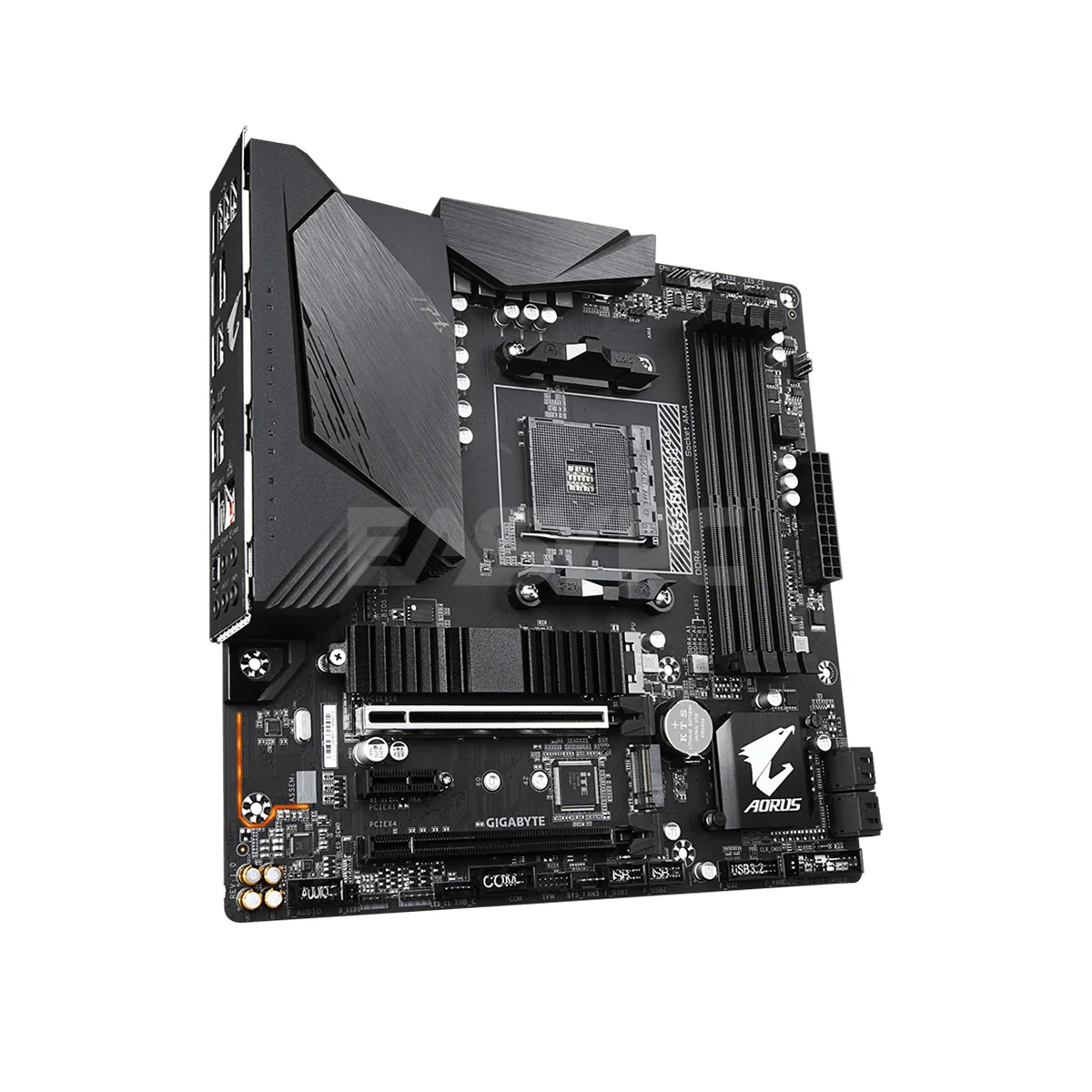

Gigabyte B550M Aorus Pro Socket Am4 Ddr4 Motherboard

Product Specifications

• CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
• Chipset: AMD B550
• Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules, New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics: Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR, 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., Maximum shared memory of 16 GB
• Audio: Realtek® ALC1200 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots: 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode, New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
• Supporting PCIe 3.0 x4 mode
• 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
• Supporting PCIe 3.0 x1 mode
• Storage Interface: 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
• New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
• Supporting SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors integrated in the Chipset:
• Support for RAID 0, RAID 1, and RAID 10
• USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• Chipset+1 USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports on the back panel
• Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
• 1 x Thunderbolt header
• Back Panel Connectors:
• 4 x USB 2.0/1.1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• BIOS 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton® Internet Security (OEM version)
• Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Operating System: Support for Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
