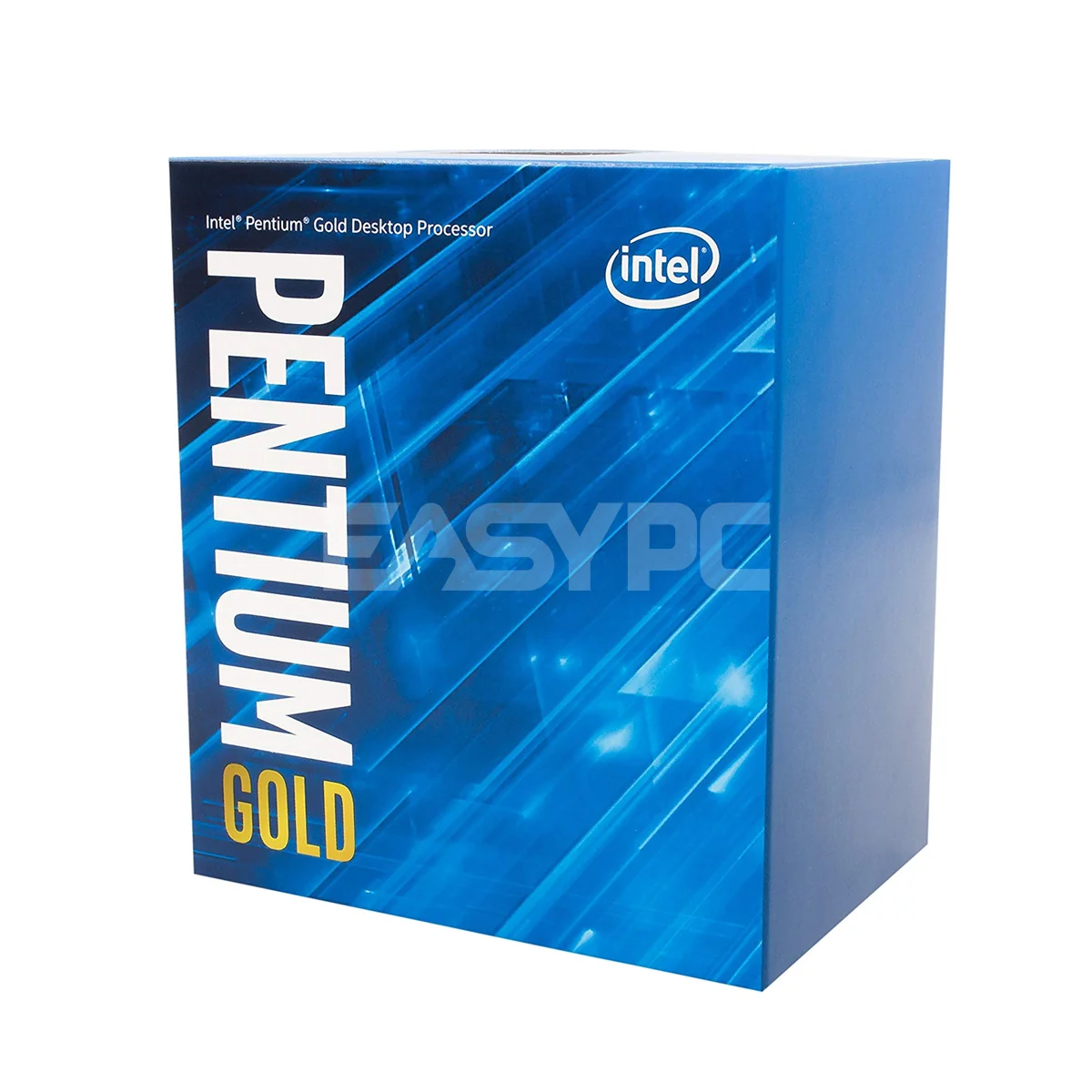

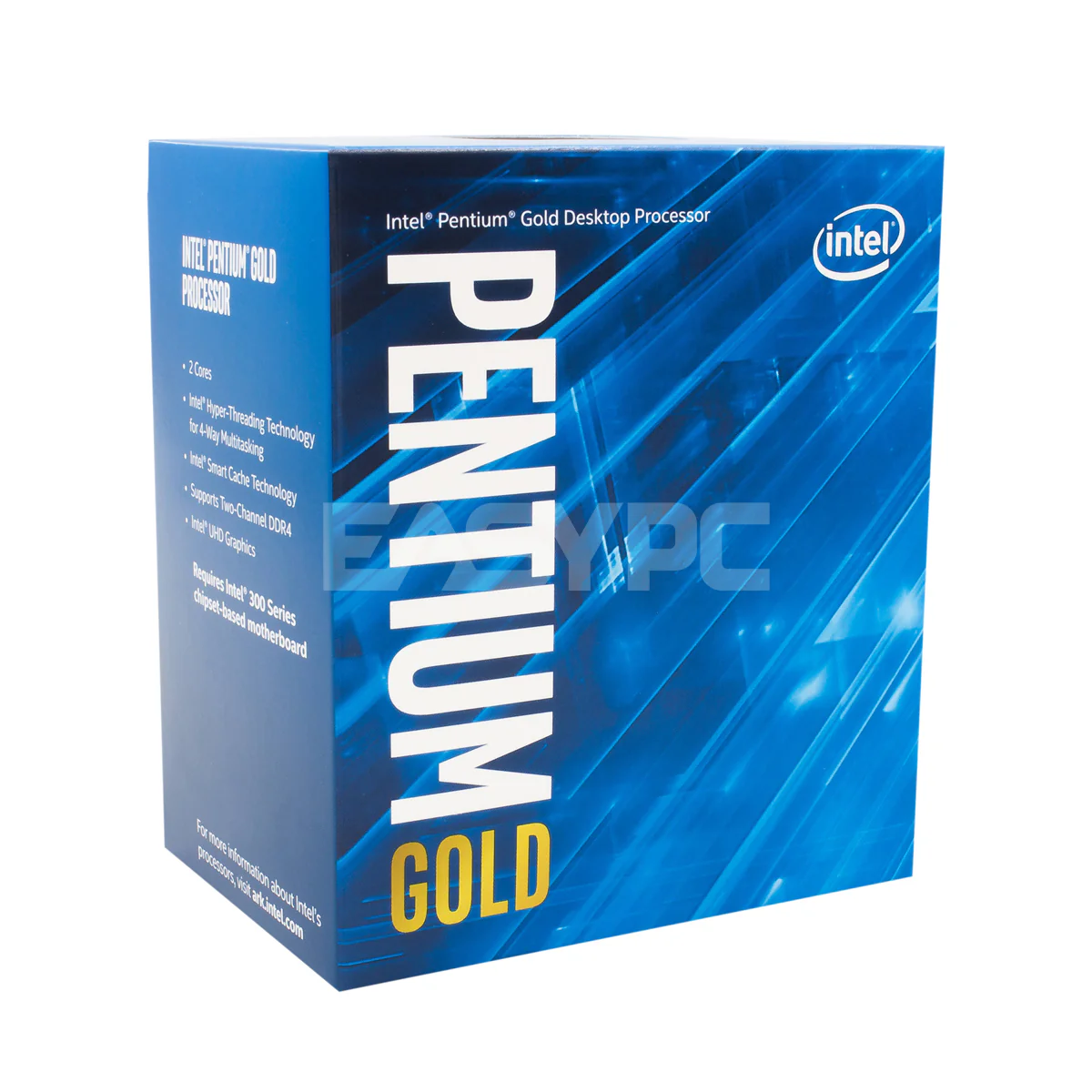

8th Generation Intel Pentium G5400 3.7Ghz CPU

Essentials

Product Collection Intel Pentium Gold Processor Series
Code Name Products formerly Coffee Lake
Vertical Segment Desktop
Processor Number G5400
Status Launched
Launch Date Q2'18
Lithography 14 nm
Use Conditions Embedded Broad Market Commercial Temp, PC/Client/Tablet
Recommended Customer Price$64.00

Performance

# of Cores 2
# of Threads 4
Processor Base Frequency 3.70 GHz
Cache 4 MB Intel Smart Cache
Bus Speed 8 GT/s
TDP 58 W

Supplemental Information

Embedded Options Available Yes

Memory Specifications

Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2400
Max # of Memory Channels 2
Max Memory Bandwidth 37.5 GB/s
ECC Memory Supported Yes

Processor Graphics

Processor Graphics Intel UHD Graphics 610
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4) 4096x2304@24Hz
Max Resolution (DP) 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel Quick Sync Video Yes
Intel InTru 3D Technology Yes
Intel Clear Video HD Technology Yes
Intel Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x3E90/x93

Expansion Options

Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C (65W)
TJUNCTION 100C
Package Size 37.5mm x 37.5mm

Advanced Technologies

Intel Optane Memory Supported Yes
Intel Turbo Boost Technology No
Intel vPro Platform Eligibility No
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Transactional Synchronization Extensions No
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1, Intel SSE4.2
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Identity Protection Technology Yes
Intel Stable Image Platform Program (SIPP) No

Security & Reliability

Intel AES New Instructions Yes
Secure Key Yes
Intel Software Guard Extensions (Intel SGX) Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX) Yes
Intel OS Guard Yes
Intel Trusted Execution Technology No
Execute Disable Bit Yes
Intel Boot Guard Yes
