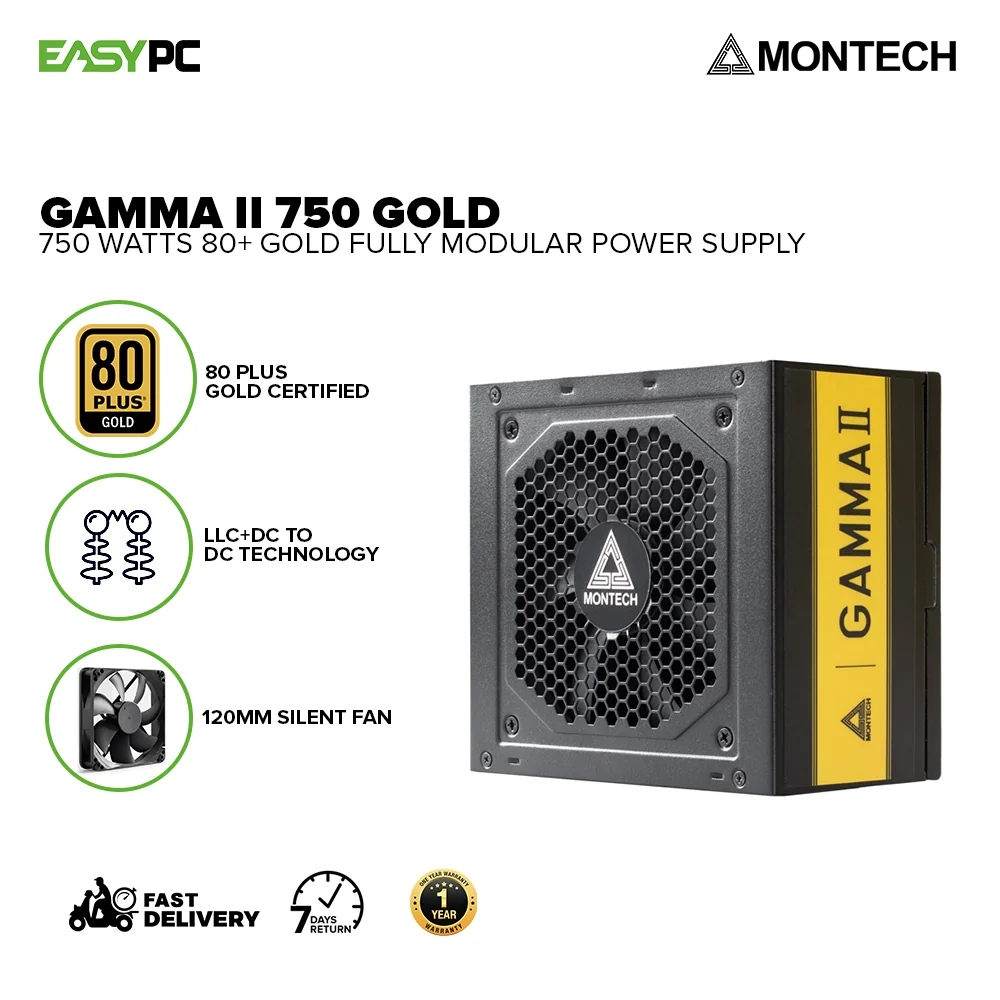

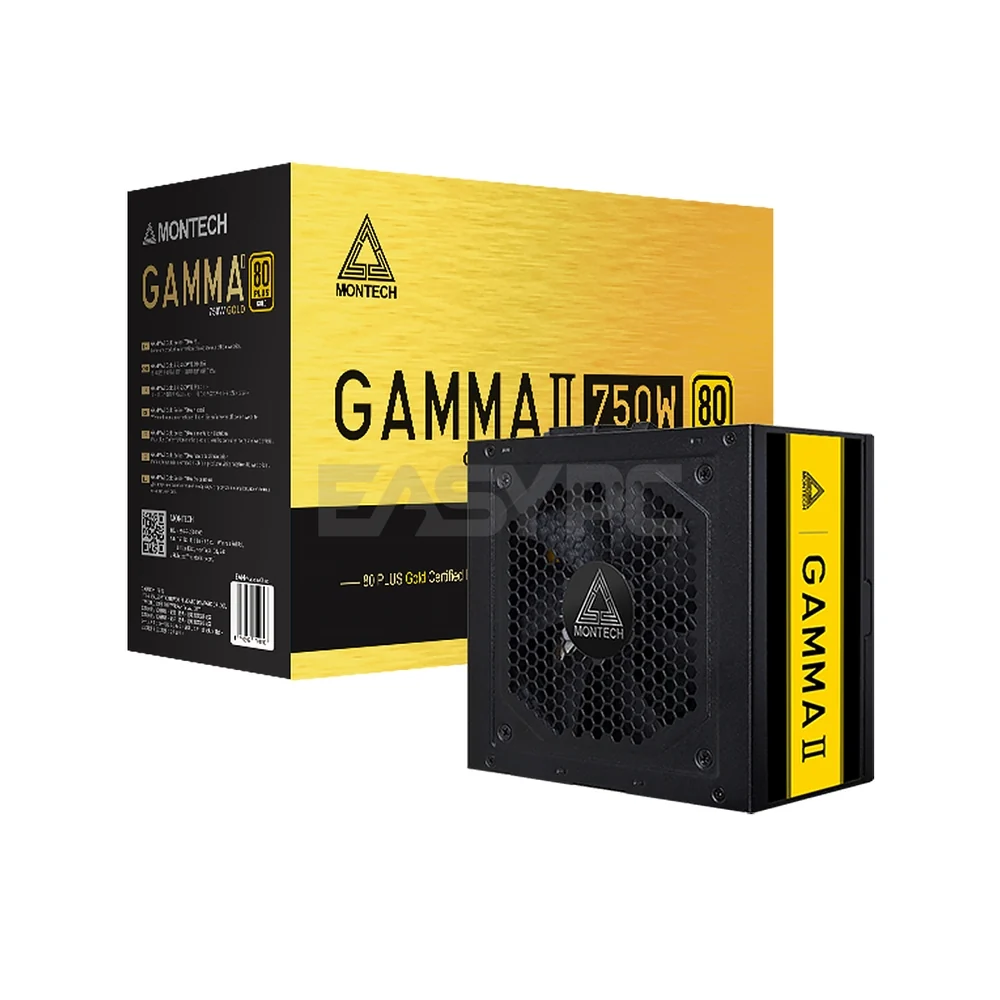

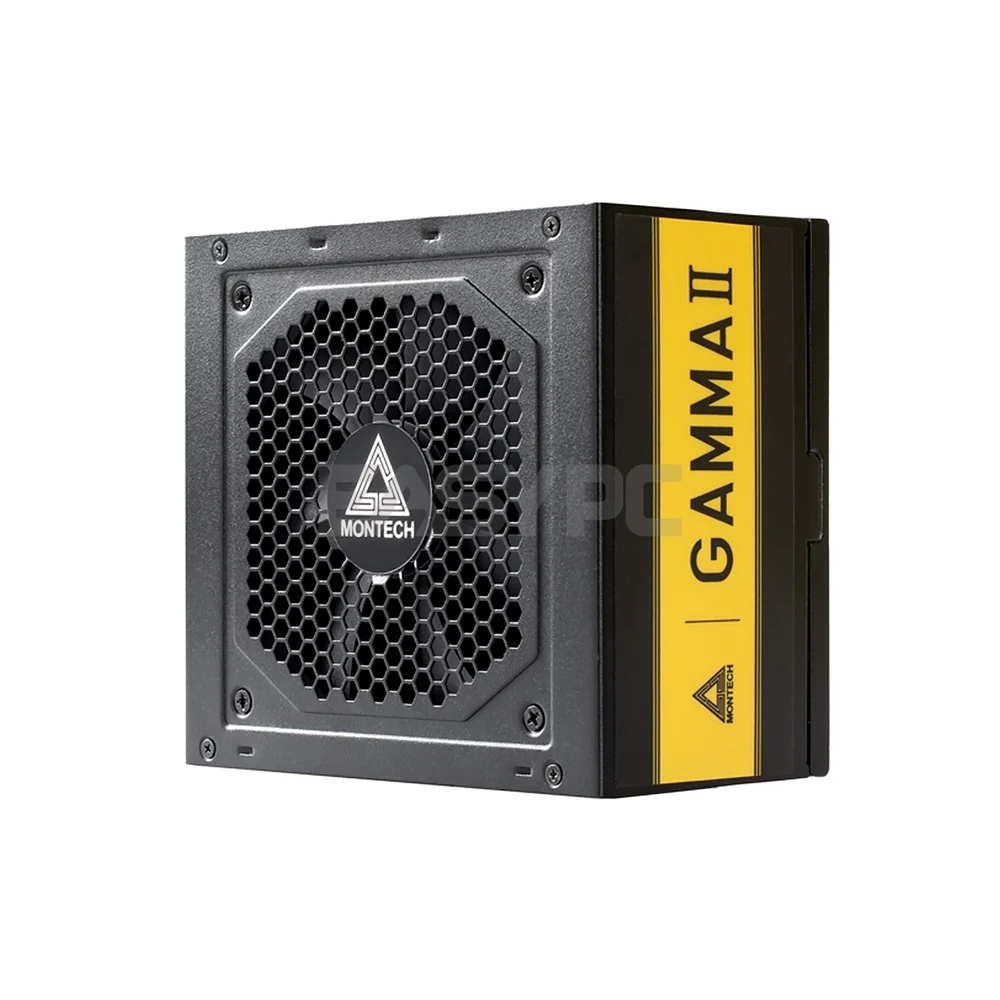

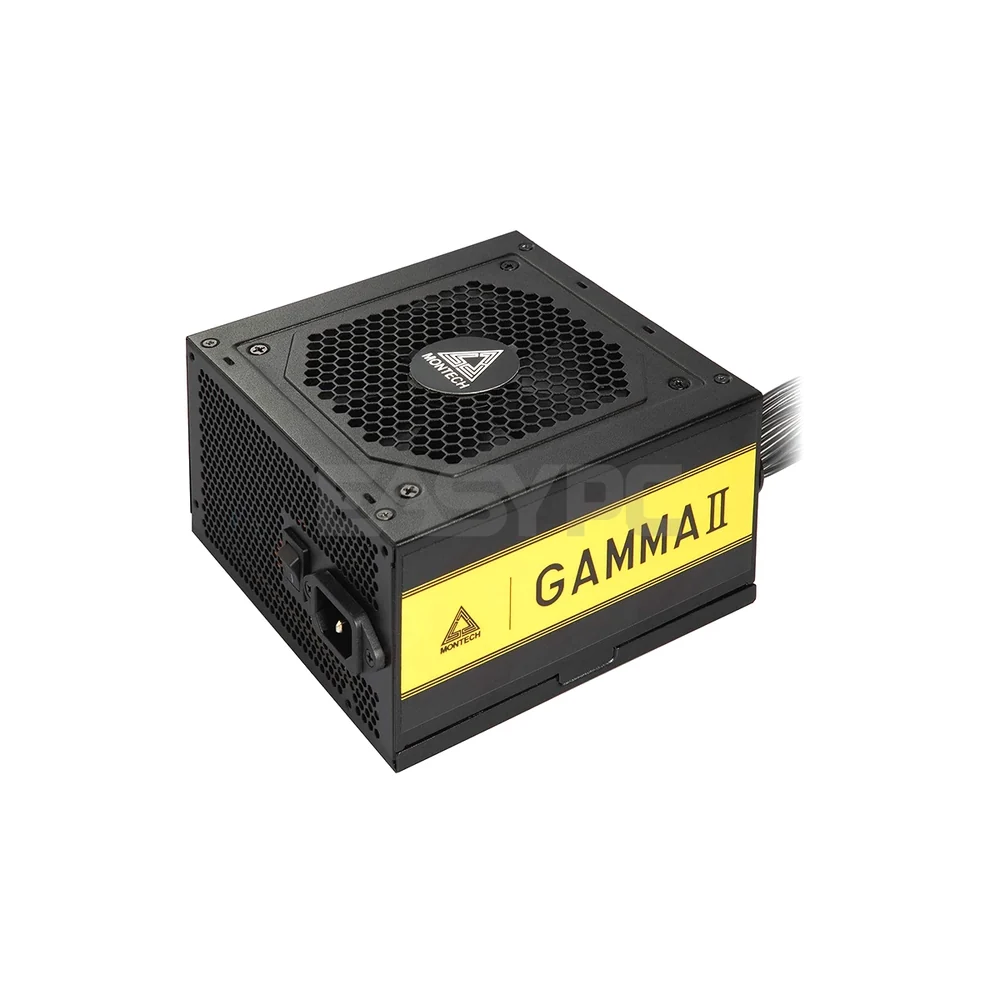

Montech Gamma II 750watts 80+ Gold Certified Fully Modular 120MM fan Flat & Flexible Cables Power Supply 18LIG MO472613

Product Specifications

• Brand: Montech
• Model: Gamma II 750
• ATX Version: ATX12V
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240Vac
• Input Current: 10A
• Input Frequency: 47-63Hz
• Dimensions (L*B*H): 140*150*86mm
• Fan Size: 120mm
• Hold Up Time: 10msec (minimum) at 80% of full load at 230Vac input.
• Efficiency: 90% Typically
• MTBF: >100,000 Hours
• Operating Temperature: 0-45°C
• Protections: OVP / OPP / UVP / SCP / OCP
• Regulatory: cTUVus / TUV / CB / CE / RoHS / FCC
• Connectors:
• M/B 20+4Pin: 1
• CPU 4+4Pin: 2
• PCIE 6+2: 4
• SATA: 8
• Molex 4Pin: 3
• FDD: 1
• AC Input: 100-240Vac 47-63Hz 10.0A
• DC Output
• +3.3V
• +5V
• 12V
• -12V
• +5VSB
• Output Current
• 22A
• 22A
• 62A
• 3A
• 5A
• Output Power
• 120W
• 744W
• 6W
• 5W
• Total POWER: 750W

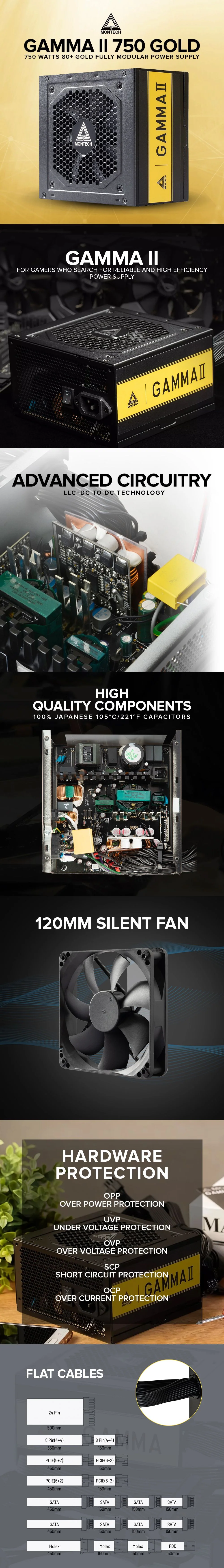

• Overview:
• GAMMA II 750 GOLD
• Gold certified PSU with 100 % Japanese electronic capacitors
• ​80 PLUS GOLD Certified
• LLC+DC to DC technology
• 100 % Japanese electronic capacitors
• EMI filter component
• 120MM silent fan
• Flat & Flexible Cables
• Features:
• GAMMA II
• For gamers who search for reliable and high efficiency power supply
• Gamma series offers most reliable, efficient and most desirable design for high-end PC builders. It incorporates LLC+DC-DC design, main Japanese capacitor, flat cables and up to 90% overall efficiency. Gamma series provides the most competitive price with low ripple noise and <±3% tight voltage regulation
• ADVANCED CIRCUITRY
• LLC+DC to DC technology: The most desirable design for gamers nowadays, LLC design with a synchronous rectification based on a DC to DC topology.
• DC to DC circuit design enhances systematic compatibility operation and provide stable voltage outputs. Therefore, maximize your system's performance.
• High Quality Components
• 100% Japanese 105°C/221°F Capacitors
• The New Gamma II series adopts 100% Japanese industrial level electronic capacitors for high durability, also achieve tight voltage and low ripple noise to enhance performance. Along with other high - quality components in the power supply, resulting stable wattage output and reliable performance.
• Efficiency: Gamma II can effectively save the energy consumption and guaranties a minimum of 92 % efficiency, producing less heat generation.
• Powerful Single +12V Rail: Powerful single rail +12 V and DC-DC circuit provide a stable and reliable supply to Graphics Cards and other pc components
• 120MM silent fan: High quality fan provides strong airflow with low noise, which makes low temperatures and quiet operation.

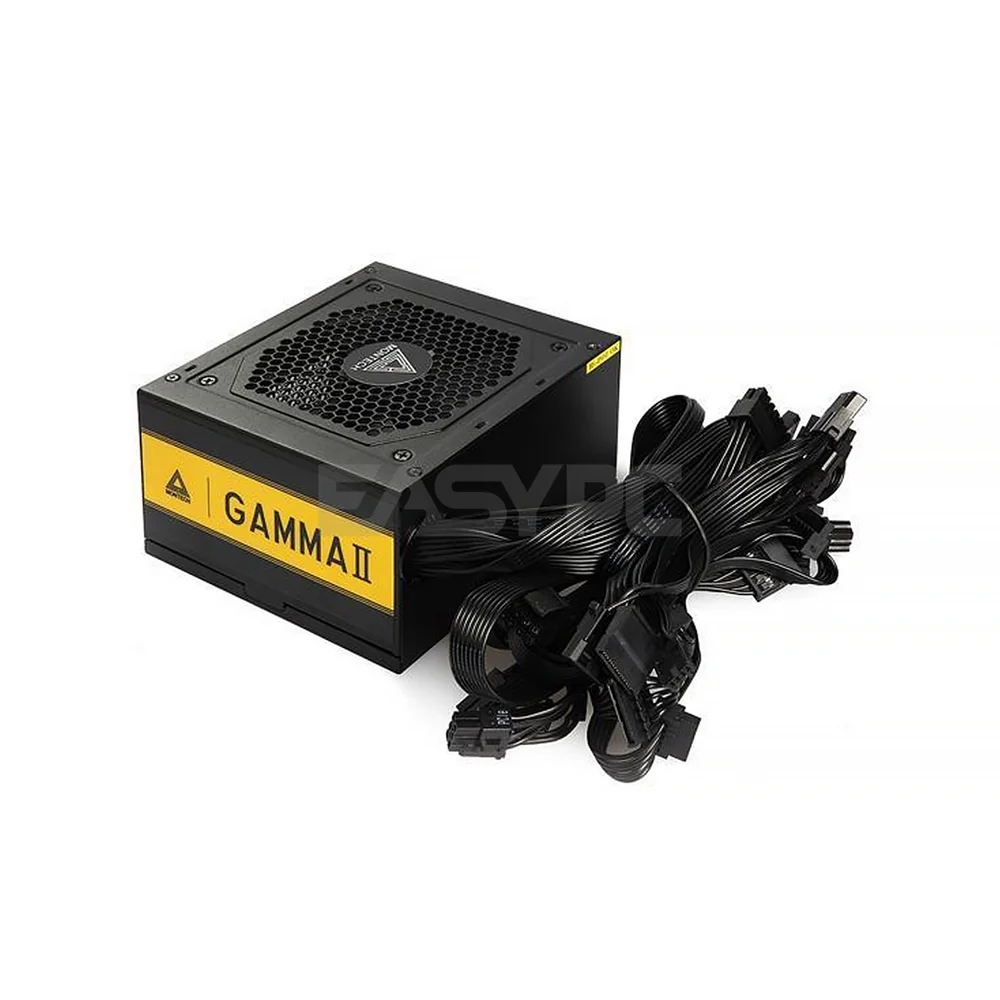

• Full Flat Cables: The new Gamma II series incoorporate the flat cables, which can increase the airflow and improve chassis thermal performance, also allowing for easy cable routing.
• Cables: GAMMA II series offer sufficient amount of cables. Also, the length of the cables are longer which makes building easier.
