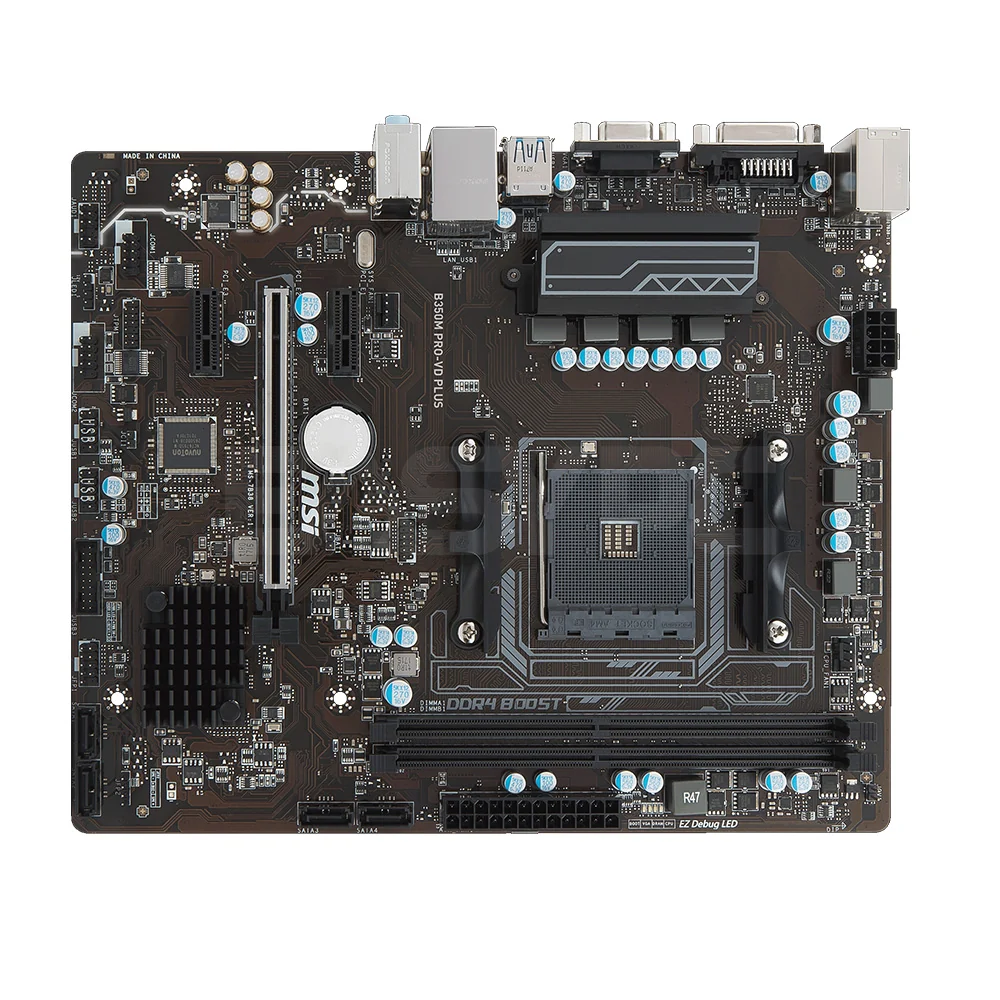

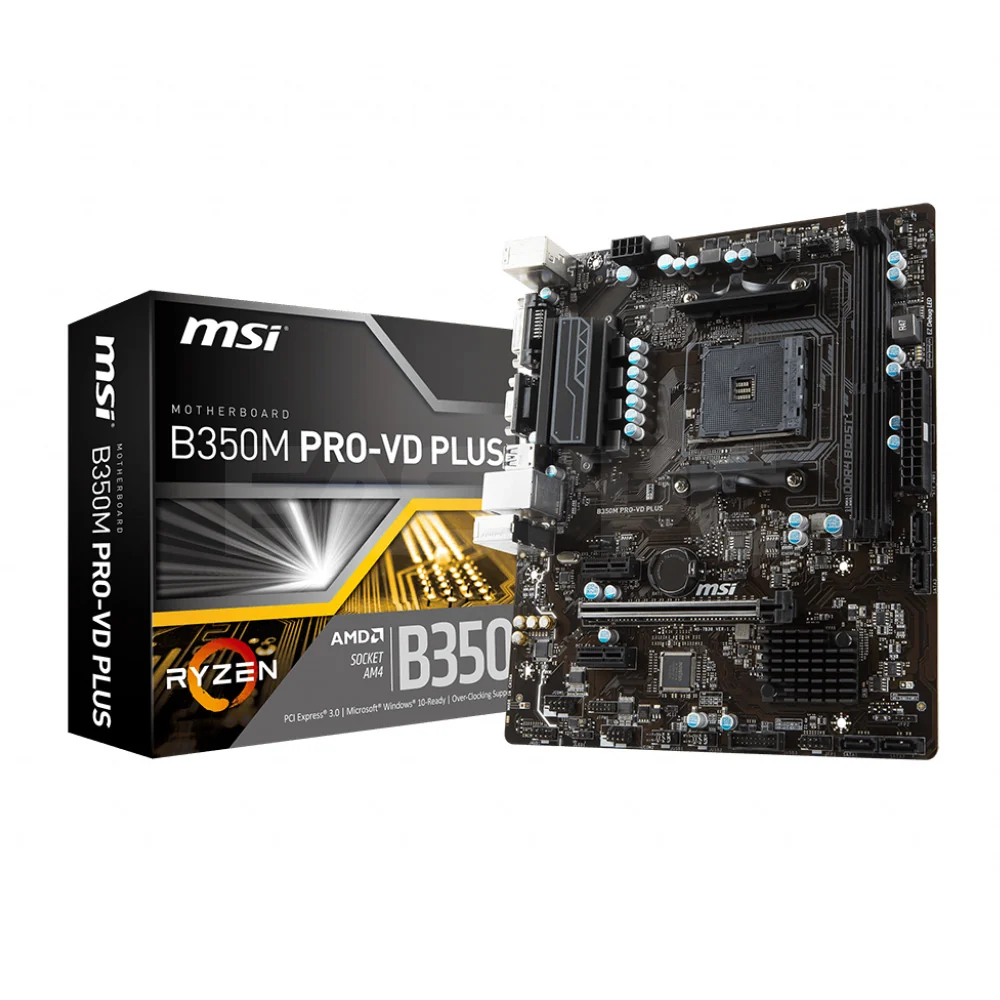

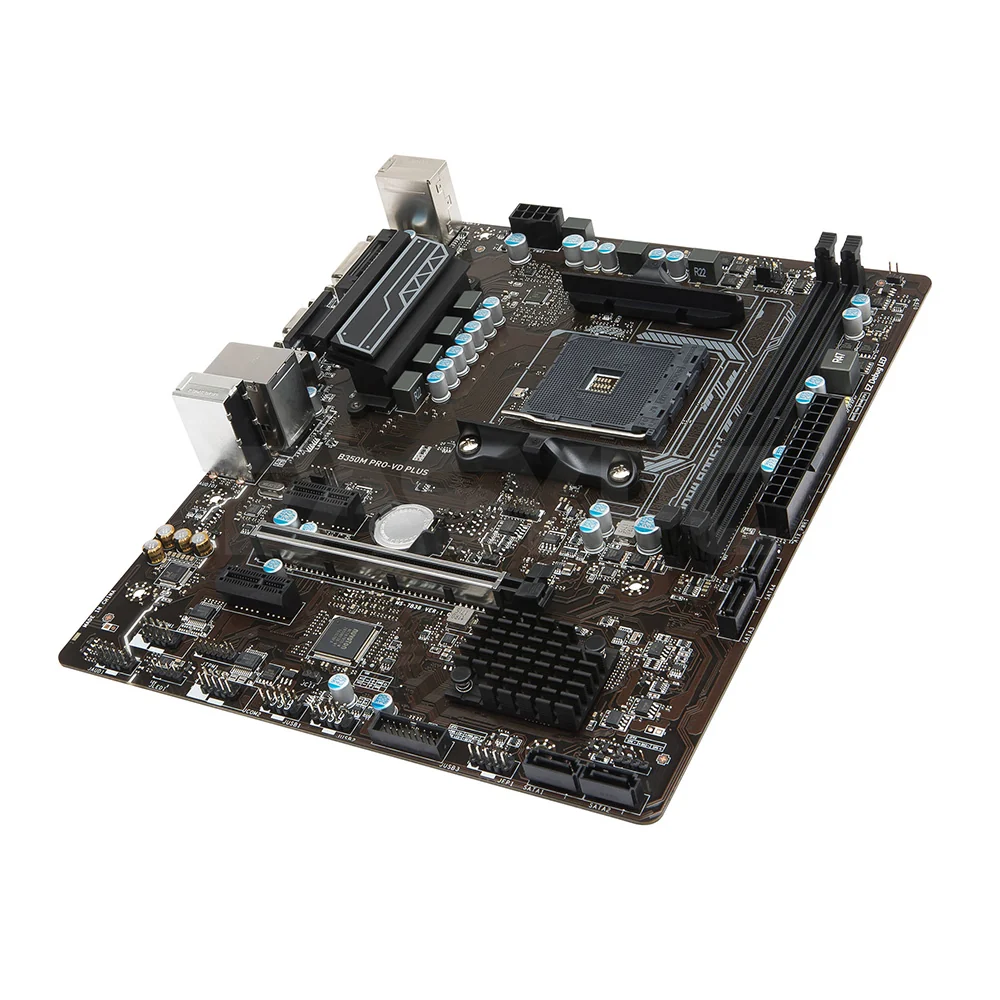

MSI B350 Pro-Vd Plus Motherboard Socket AM4 Pcie Ddr4

MSI B350M PRO-VD PLUS Motherboard (Socket AM4, DDR4, Micro-ATX)

Key Features

• AMD Socket AM4 with B350 Chipset Supports AMD Ryzen 1st and 2nd Generation, Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics, A-series, and Athlon X4 processors.
• Dual-Channel DDR4 Memory 2 x DDR4 DIMM slots supporting up to 64GB with speeds of 1866/2133/2400/2667/2933(OC)/3200(OC) MHz.
• PCIe 3.0 Expansion 1 x PCIe 3.0 x16 slot and 2 x PCIe 3.0 x1 slots.
• SATA 6Gb/s Storage with RAID 4 x SATA 6Gb/s ports with support for RAID 0, RAID 1, and RAID 10.
• Integrated Display Outputs DVI-D and VGA ports for use with AMD processors featuring Radeon Vega Graphics.
• USB 3.1 Gen1 Connectivity 6 USB 3.1 Gen1 ports and 6 USB 2.0 ports across the rear panel and internal headers.
• Gigabit LAN and 7.1 Audio Realtek 8111H Gigabit LAN controller and Realtek ALC887 7.1-Channel High Definition Audio.
• Micro-ATX Form Factor Compact M-ATX design measuring 24.4 cm x 20.6 cm.

Technical Specifications

Model	MSI B350M PRO-VD PLUS
CPU Socket	Socket AM4
CPU Support	AMD Ryzen 1st and 2nd Generation, Ryzen with Radeon Vega Graphics, Athlon with Radeon Vega Graphics, A-series, and Athlon X4 Processors
Chipset	AMD B350 Chipset
Memory	2 x DDR4 slots, up to 64GB, Dual Channel; 1866/2133/2400/2667/2933(OC)/3200(OC) MHz; supports ECC UDIMM (non-ECC mode) and non-ECC UDIMM
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Graphics Output	1 x DVI-D (max 1920x1200@60Hz), 1 x VGA (max 2048x1280@60Hz) — requires CPU with integrated graphics
Storage	4 x SATA 6Gb/s ports; RAID 0, RAID 1, RAID 10
USB	6 x USB 3.1 Gen1 (4 rear, 2 via internal header); 6 x USB 2.0 (2 rear, 4 via internal header)
LAN	1 x Realtek 8111H Gigabit LAN controller
Audio	Realtek ALC887 Codec, 7.1-Channel High Definition Audio
Rear I/O Ports	1 x PS/2 keyboard/mouse combo, 2 x USB 2.0 Type-A, 1 x DVI-D, 1 x VGA, 1 x LAN (RJ45), 4 x USB 3.1 Gen1 Type-A, 3 x audio jacks
DirectX	DirectX 12
Form Factor	Micro-ATX (M-ATX), 24.4 cm x 20.6 cm (9.6 in. x 8.1 in.)

Shipping Dimensions

Weight

1.14 kg

Warranty Information

This product is covered by 1 Year EasyFIX Warranty. For complete warranty terms and conditions, please contact our customer support.

*Specifications are based on manufacturer data. Actual product may vary.
