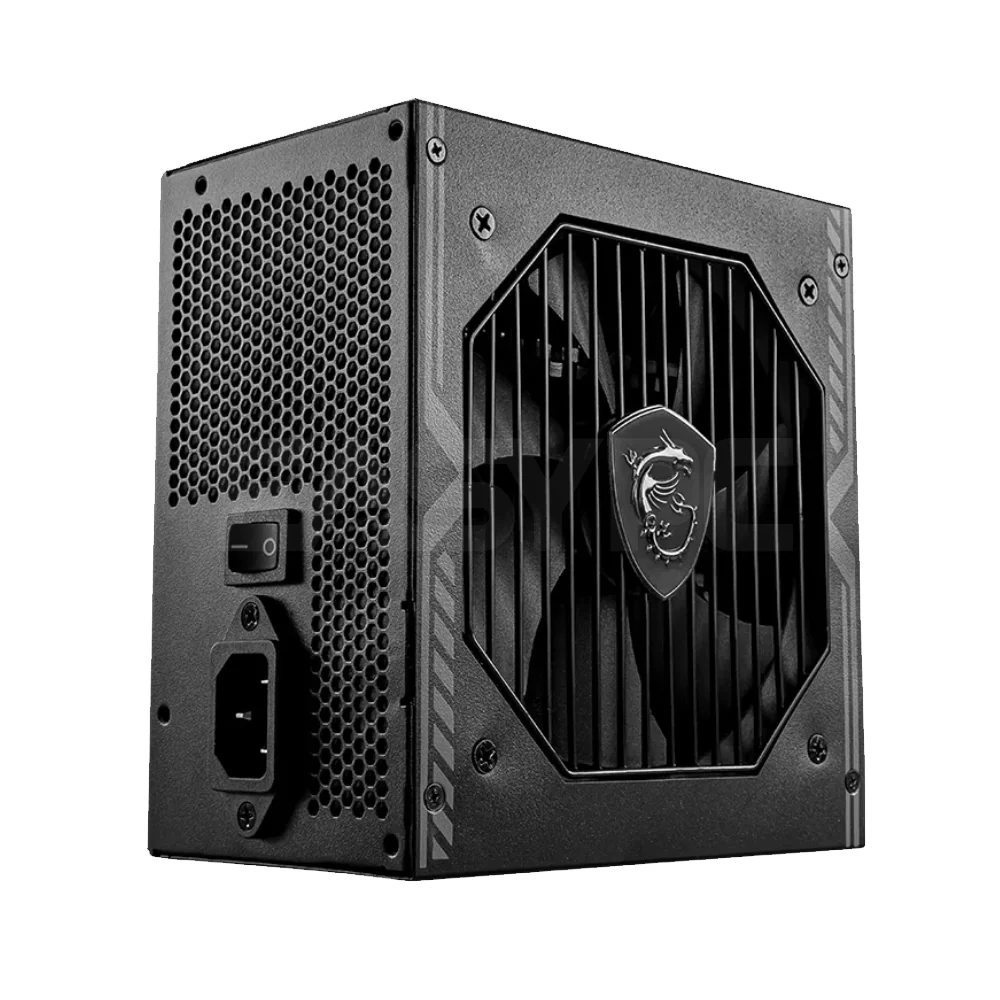

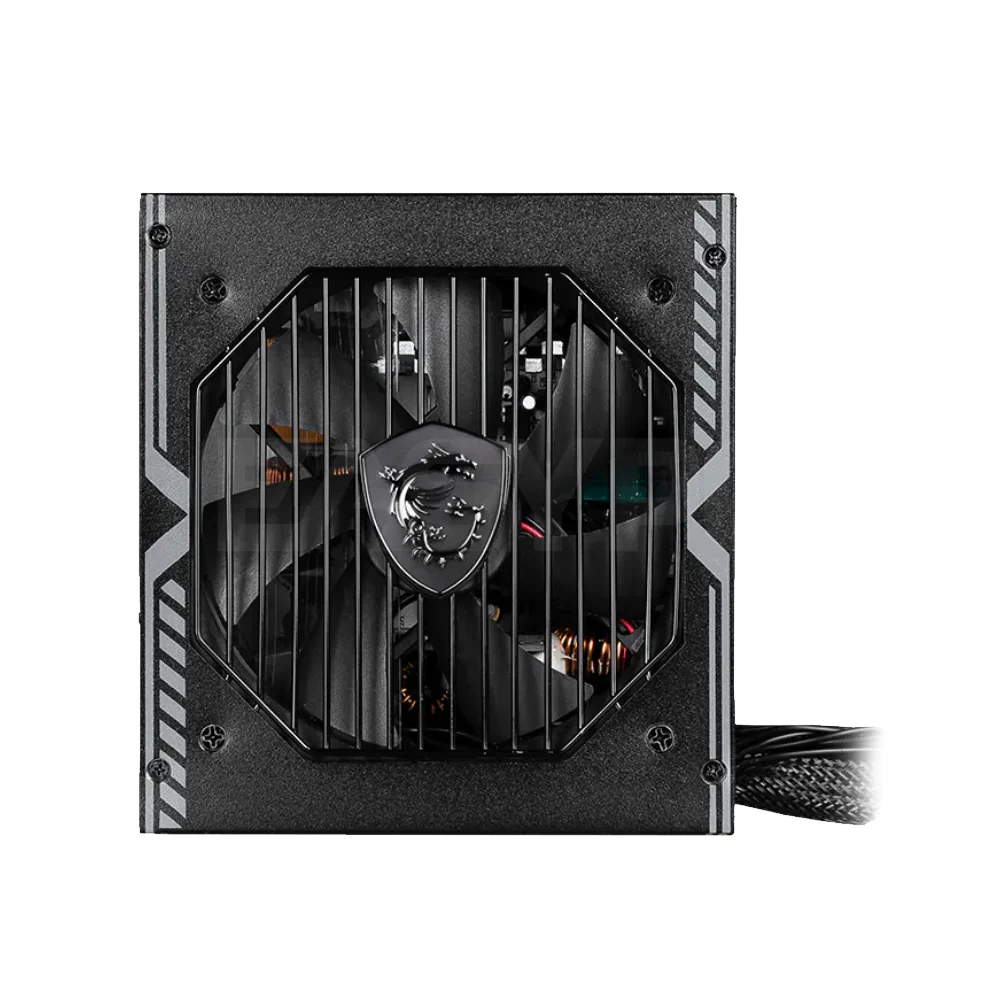

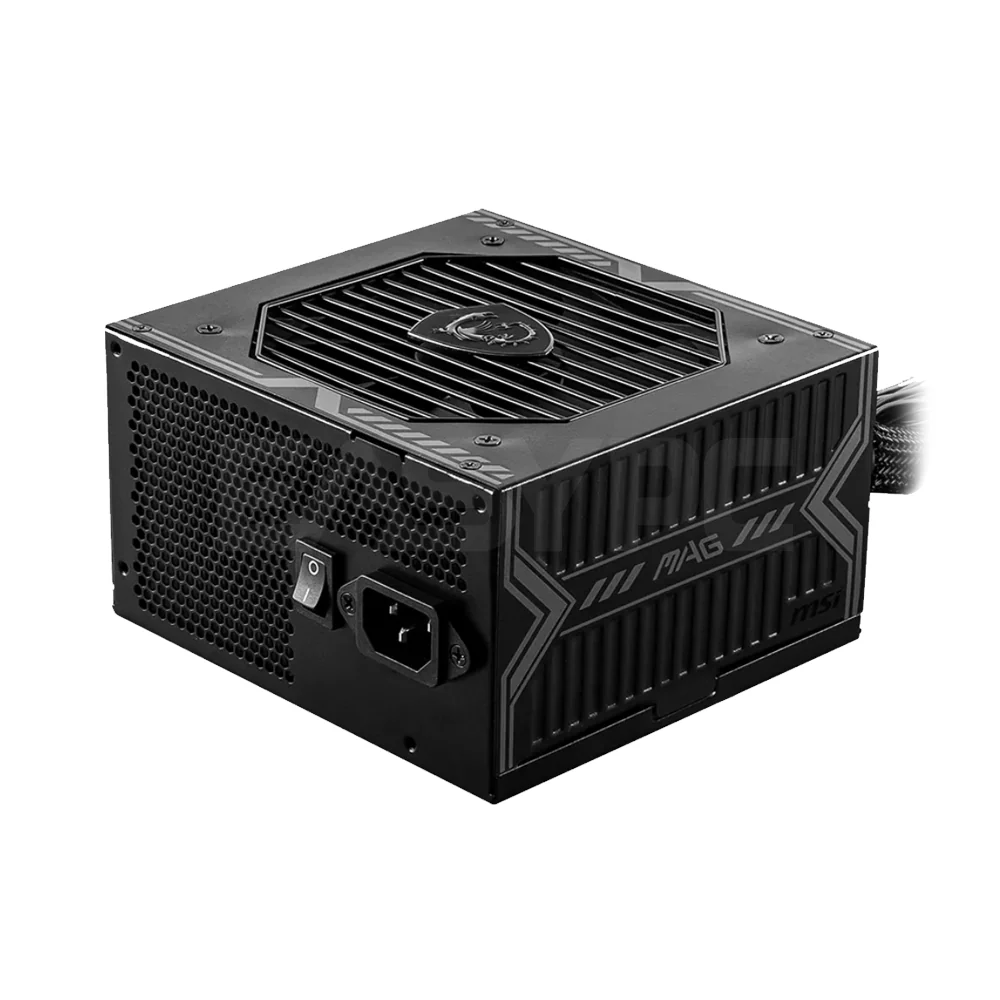

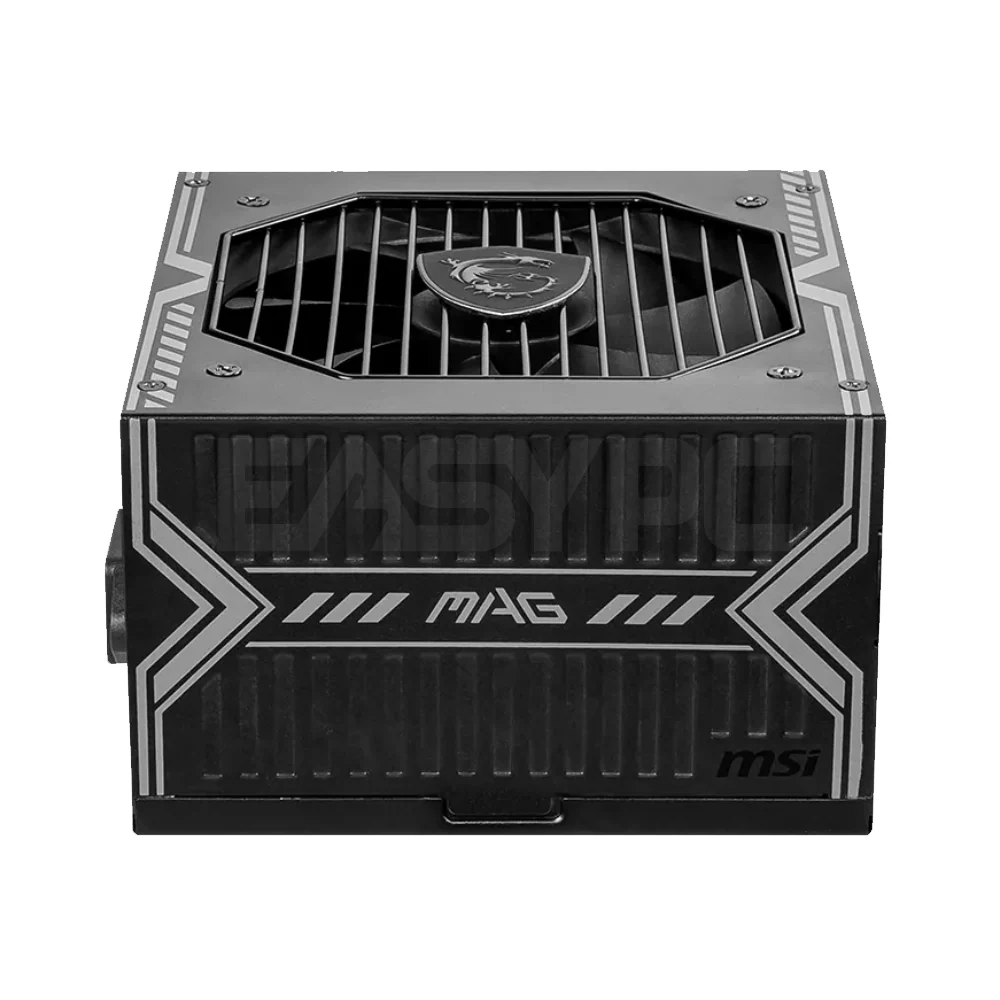

MSI MAG A750BN PCIE5 III 750Watts 80+ Non-Modular Power Supply Bronze

The MSI MAG A750BN PCIE5 III is an ATX 3.1 compliant 750W power supply with 80 PLUS Bronze efficiency and a native 12V-2x6 (16-pin) connector for PCIe 5.1 graphics cards. Featuring DC-to-DC topology, server-grade capacitors, and copper alloy terminals, it delivers stable, efficient power for modern gaming systems.

Key Features

• ATX 3.1 & PCIe 5.1 Ready - Handles GPU power excursions per the latest standards
• Native 12V-2x6 Connector - Up to 450W direct to PCIe 5.1 GPUs without adapters
• 80 PLUS Bronze - Up to 85% efficiency for reduced power waste
• 750W Single +12V Rail (62.5A) - Ample power for high-end gaming builds
• Server-Grade Capacitors - Enhanced durability and voltage stability
• Dual EPS 4+4 Pin - Ample CPU power for high-end processors

Technical Specifications

Wattage	750W
ATX Standard	ATX 3.1
PCIe Standard	PCIe CEM 5.1
Efficiency	80 PLUS Bronze
Modularity	Non-Modular (soft flat cables)
+12V Rail	62.5A / 750W (single rail)
Fan	120mm Hydraulic Bearing
Connectors	1x 24-pin, 2x EPS 4+4, 1x 12V-2x6 (16-pin), 3x PCIe 6+2, 3x SATA, 2x Molex
Input Voltage	100-240V AC, 50/60Hz
Protections	OCP, OVP, SCP, OPP, OTP
Dimensions	150 x 140 x 86 mm
Operating Temp	Up to 40°C

Warranty Information

This product is covered by EasyFIX Warranty. For complete warranty terms and conditions, please contact our customer support.
