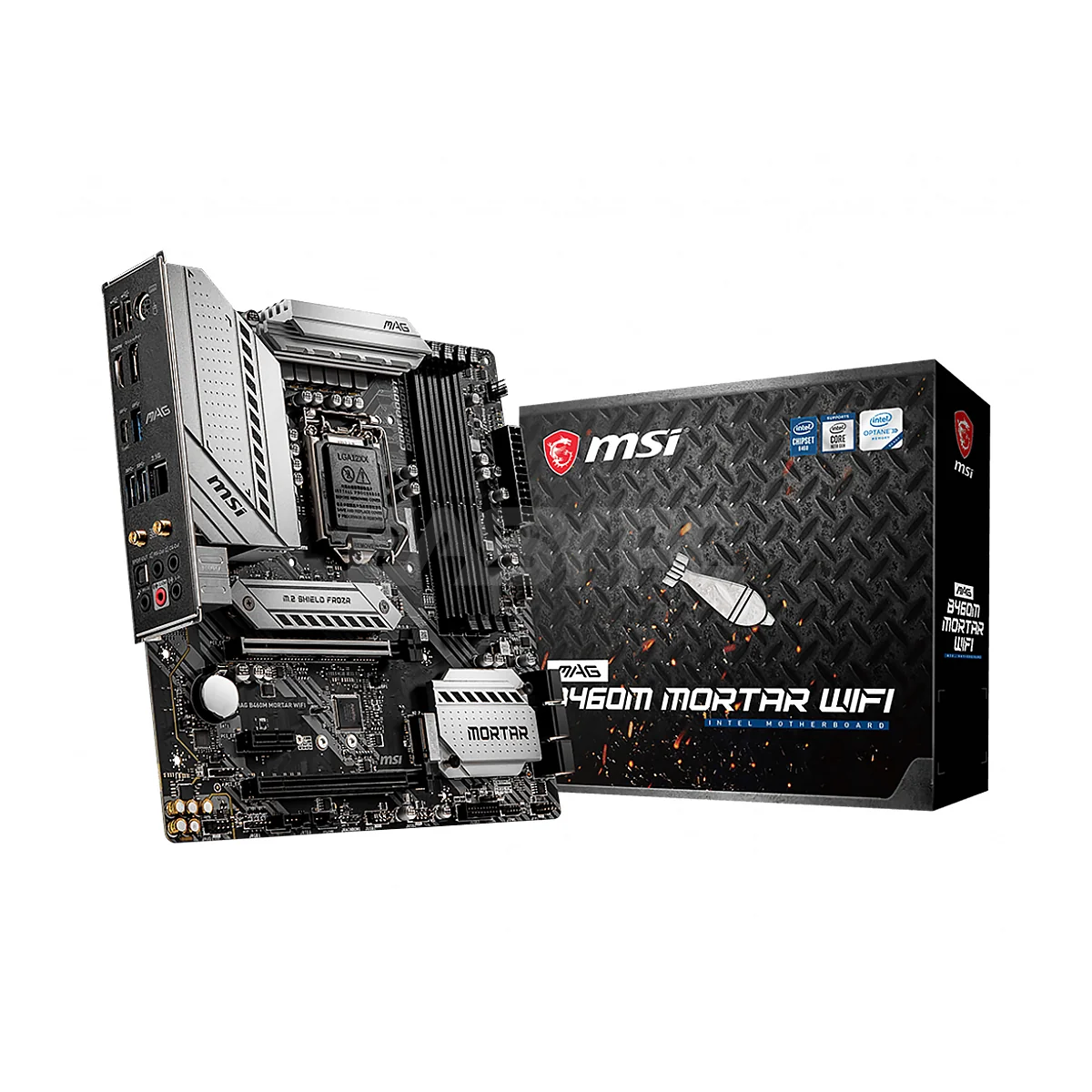

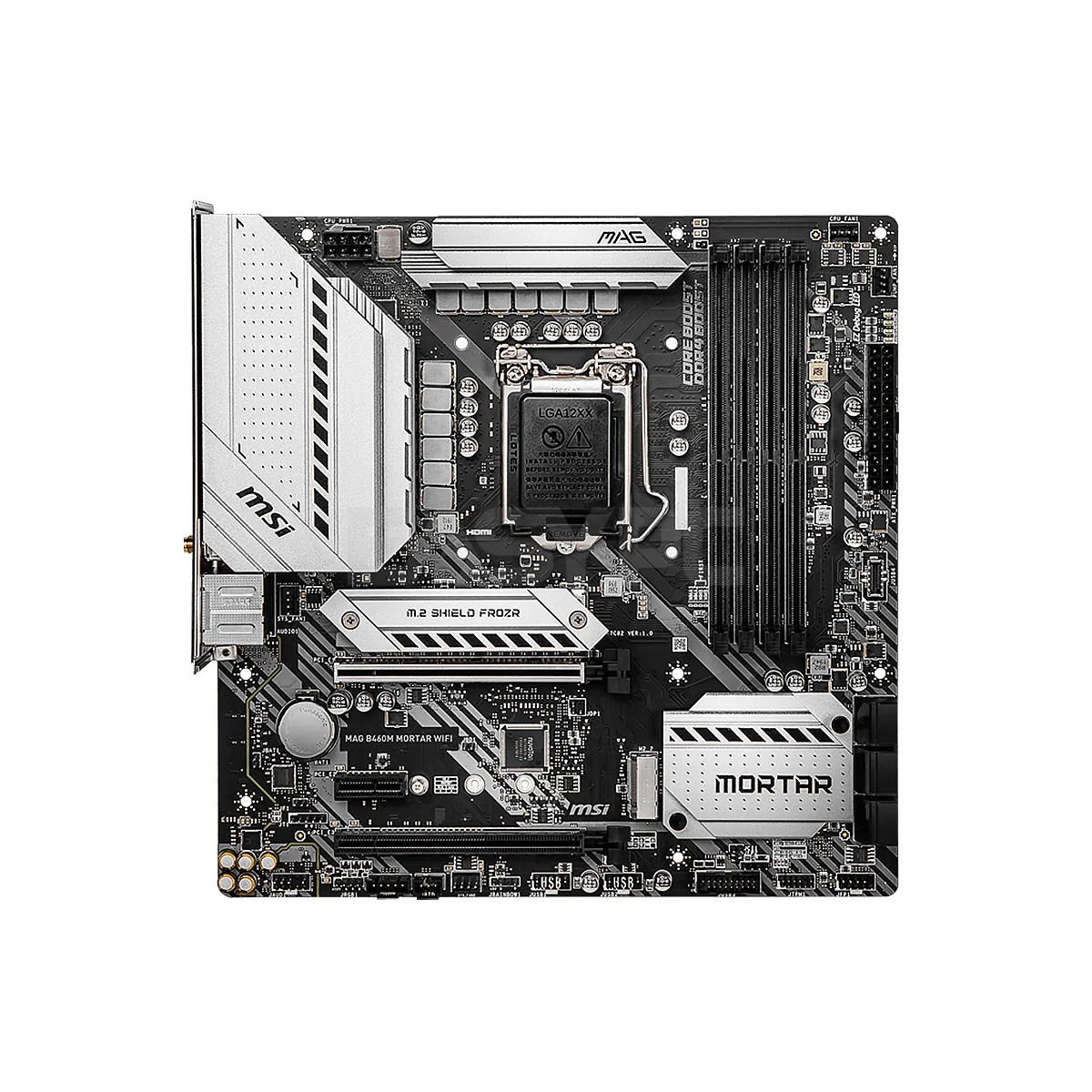

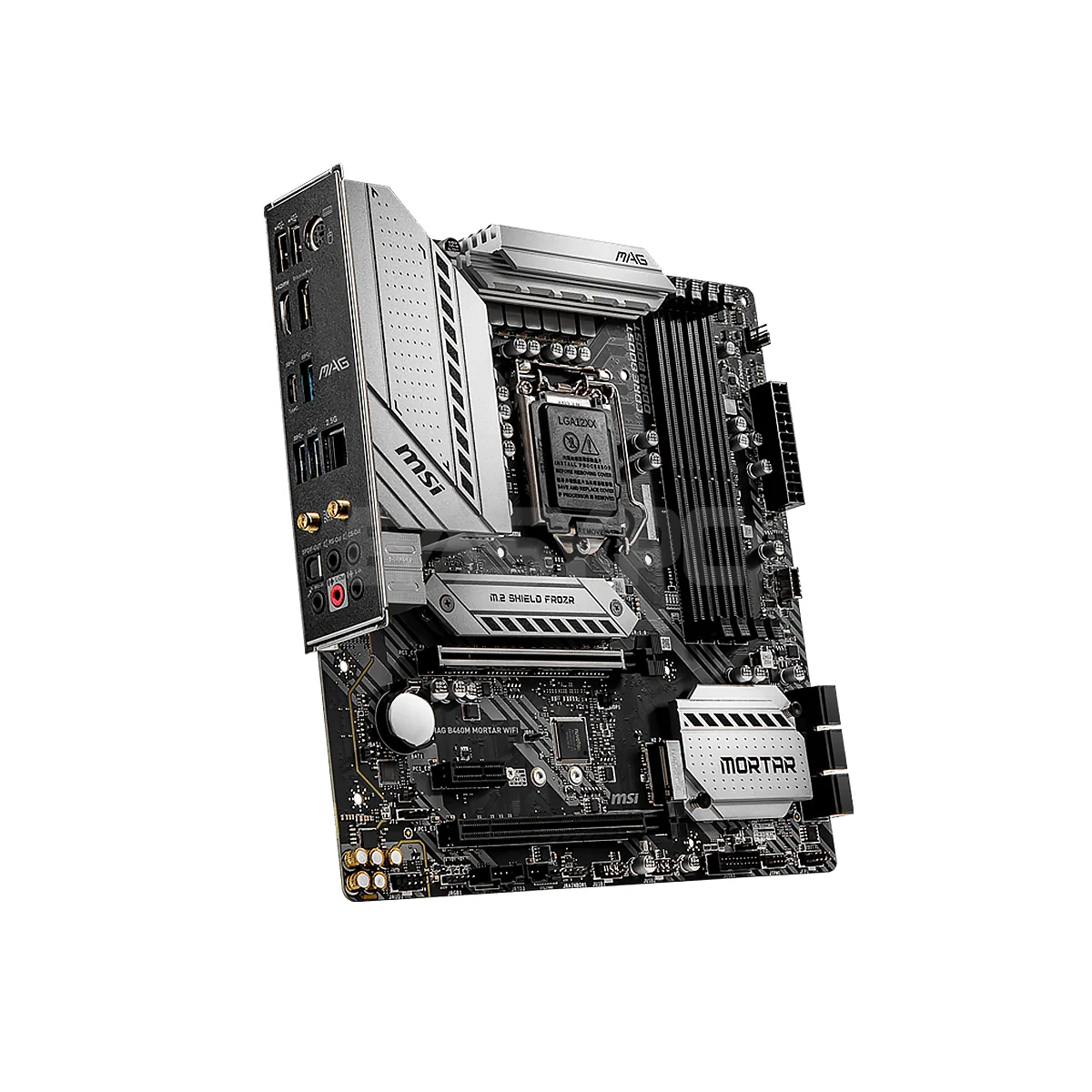

Msi MAG B460M Mortar Wifi 6 Socket LGA 1200 Ddr4, Core Boost, Crossfire Support, Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost Gaming Motherboard

Product Specifications

• BRAND: MSI
• MODEL: MAG B460M
• CPU (MAX SUPPORT): i9
• SOCKET: 1200
• CHIPSET: Intel® B460 Chipset
• DDR4 MEMORY: 2933(Max)/ 2666/ 2400/ 2133 MHz
• MEMORY CHANNEL: DUAL
• DIMM SLOTS: 4
• MAX MEMORY (GB): 128
• PCI-E X16: 2
• PCI-E GEN: Gen3
• PCI-E X1: 1
• SATAIII: 6
• 2 SLOT: 2
• RAID: 0/1/5/10
• TPM (HEADER): 1
• LAN: 1x Realtek® RTL8125B
• WIFI & BLUETOOTH: Intel AX200 + Bluetooth 5.1
• USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A)
• USB 3.2 PORTS (REAR): 1(Gen 1, Type C), 3(Gen 1, Type A)
• USB 2.0 PORTS (FRONT): 4
• USB 2.0 PORTS (REAR): 2
• AUDIO PORTS (REAR): 5
• DISPLAYPORT: 1
• HDMI: 1
• DIRECTX: 12
• FORM FACTOR: mATX
• CROSSFIRE: Y
• OPERATING SYSTEM: Support for Windows® 10 64-bit
• Features:
• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933 MHz (Max)
• Enhanced Power Design: 12+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• 5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

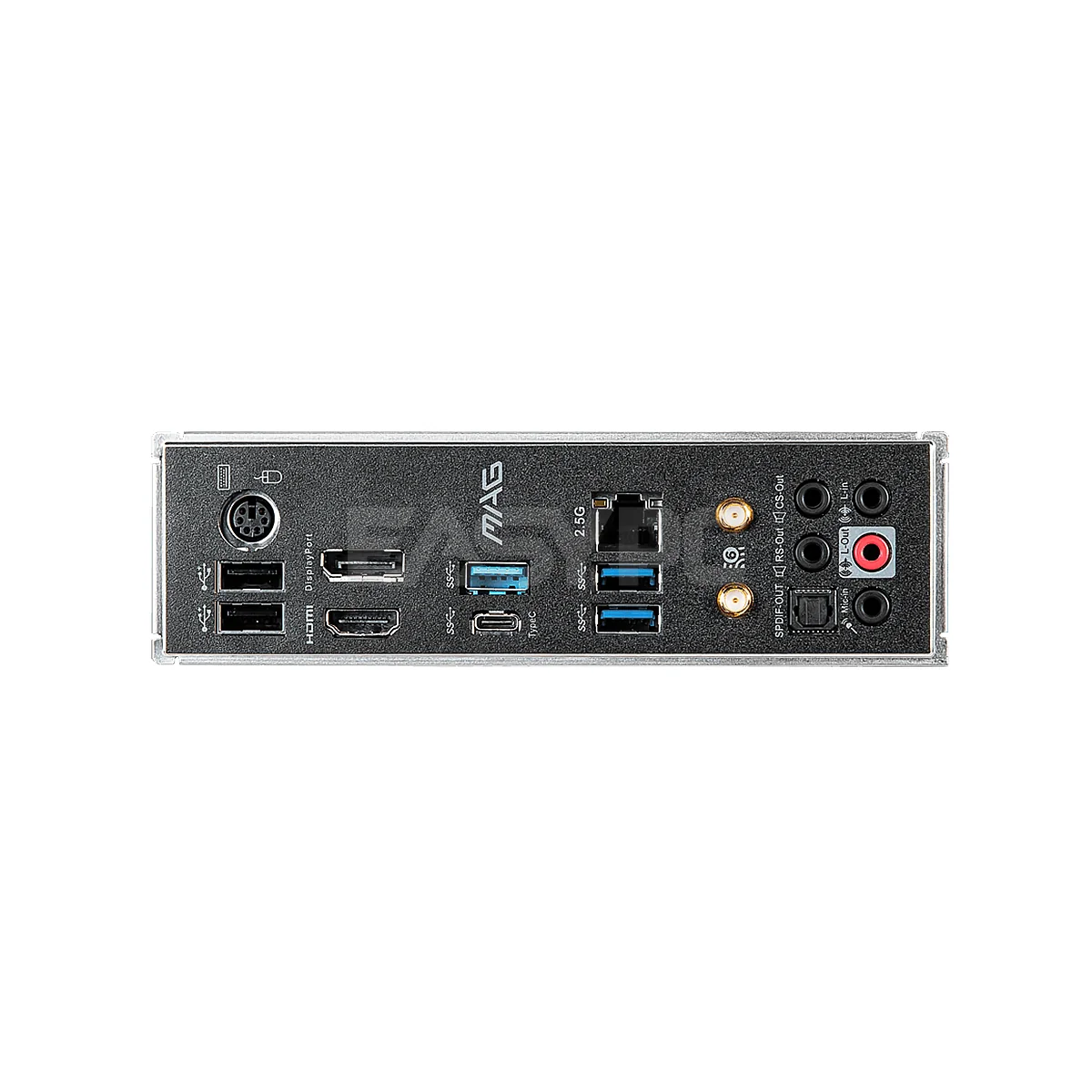

• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• Audio Boost: Reward your ears with studio grade sound quality
• Overview:
• Conquer the Battlefield: The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
