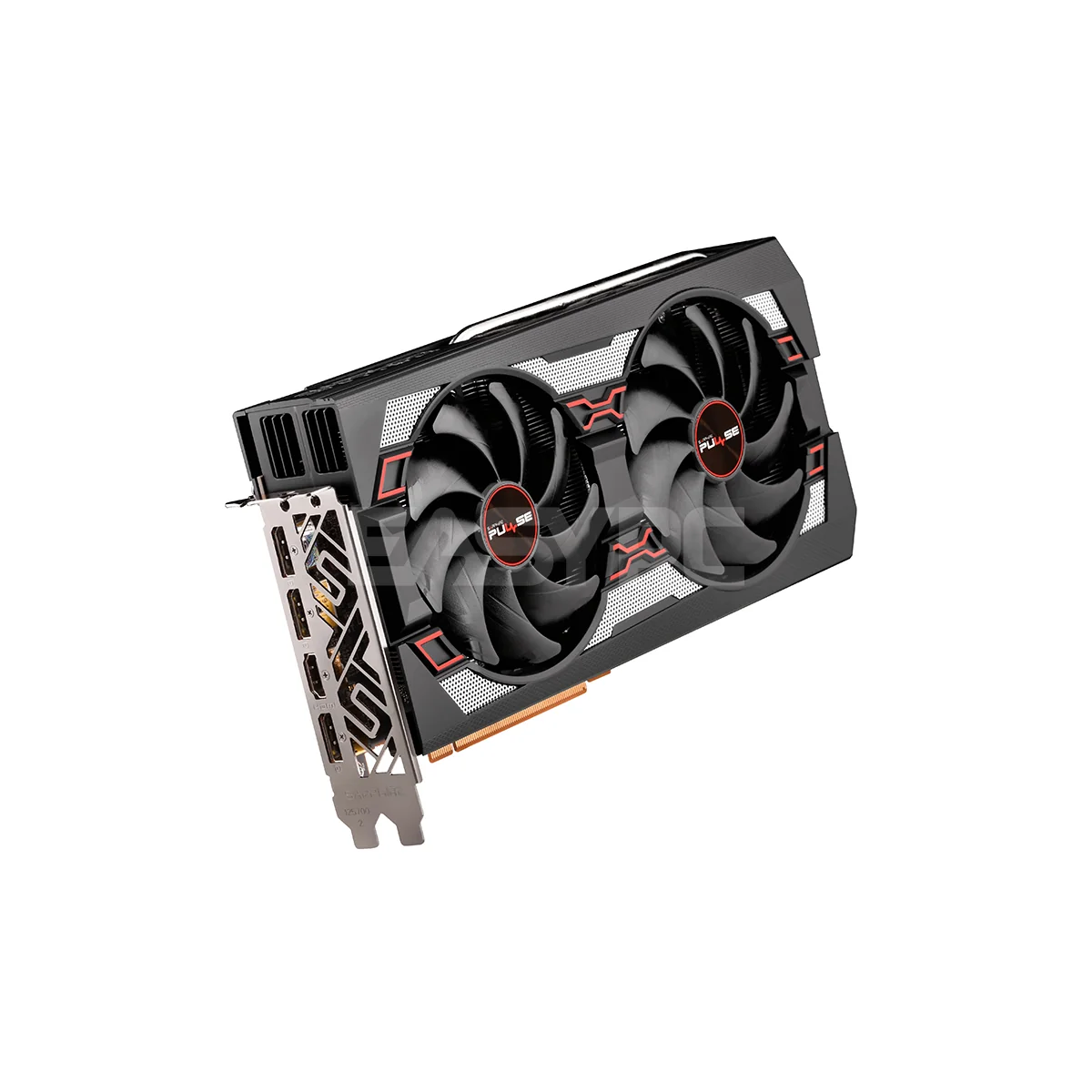

Sapphire Pulse RX 5600 XT BE OC 6gb 192bit GDdr6 Gaming Videocard
| GPU |
Radeon™ RX 5600 Graphics |
| 2nd Gen 7nm GPU | |
| RDNA Architecture | |
| Engine Clock |
Boost Clock: Up to 1750 MHz |
| Game Clock: Up to 1615 MHz | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may var | |
| Stream Processors |
2304 |
| Memory Size/Bus |
6GB/192 bit GDDR6 |
| Memory Clock |
14 Gbps Effective |
| Displays |
Maximum 4 Displays |
| Resolution |
HDMI™: 4096×2160@60Hz |
| DisplayPort1.4: 5120Ă—2880@60Hz | |
| Interface |
PCI-Express 4.0 |
| Output |
1x HDMI |
| 3x DisplayPort | |
| BIOS Support |
Dual UEFI |
| API |
Vulkan® |
| OpenGL® 4.6 | |
| OpenCL 2.0 | |
| DirectX® 12 | |
| Shader Model 6.4 | |
| Game Index |
Extreme 1080P, 1440P Entry |
| Sapphire Features | Power Design |
| Free Flow | |
| TriXX Supported | |
| TriXX Boost | |
| Red LED Logo | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Robust VRM Cooling | |
| Robust Memory Cooling | |
| Dual-X Cooling Technology | |
| Tough Metal Backplate | |
| PCB Layers | |
| Two-Ball Bearing | |
| Fan Quick Connect | |
| Fuse Protection | |
| Dual BIOS | |
| AMD Features | RDNA Architecture |
| 2nd Gen 7nm GPU | |
| GDDR6 Memory | |
| Power Efficiency | |
| PCI Express 4.0 Support | |
| Video Streaming up to 8K | |
| Display Port 1.4 (HBR3) / DSC | |
| Radeon™ Software | |
| Radeon™ Boost | |
| Radeon™ Image Sharpening | |
| Radeon™ Anti-Lag | |
| AMD FidelityFx | |
| Async Compute | |
| Radeon™ Rays Audio + True Audio Next | |
| Radeon™ FreeSync™ 2 HDR | |
| Cooling | Dual-X Cooling |
| Dual Fan | |
| Two-Ball Bearing | |
| Form Factor | 2.3 slot, ATX |
| Dimension: 254 x 135 x 46.5(mm) | |
| Power Consumption |
160W |
| OS | Linux®, Windows® 10, Windows® 7 64bit operating system required |
| System Requirement | Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply). |
| 1 x 8-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 4GB of system memory. 8GB recommended. |
Browse more Graphics Cards at EasyPC.
$98.92
Original: $282.63
-65%Sapphire Pulse RX 5600 XT BE OC 6gb 192bit GDdr6 Gaming Videocard—
$282.63
$98.92Product Information
