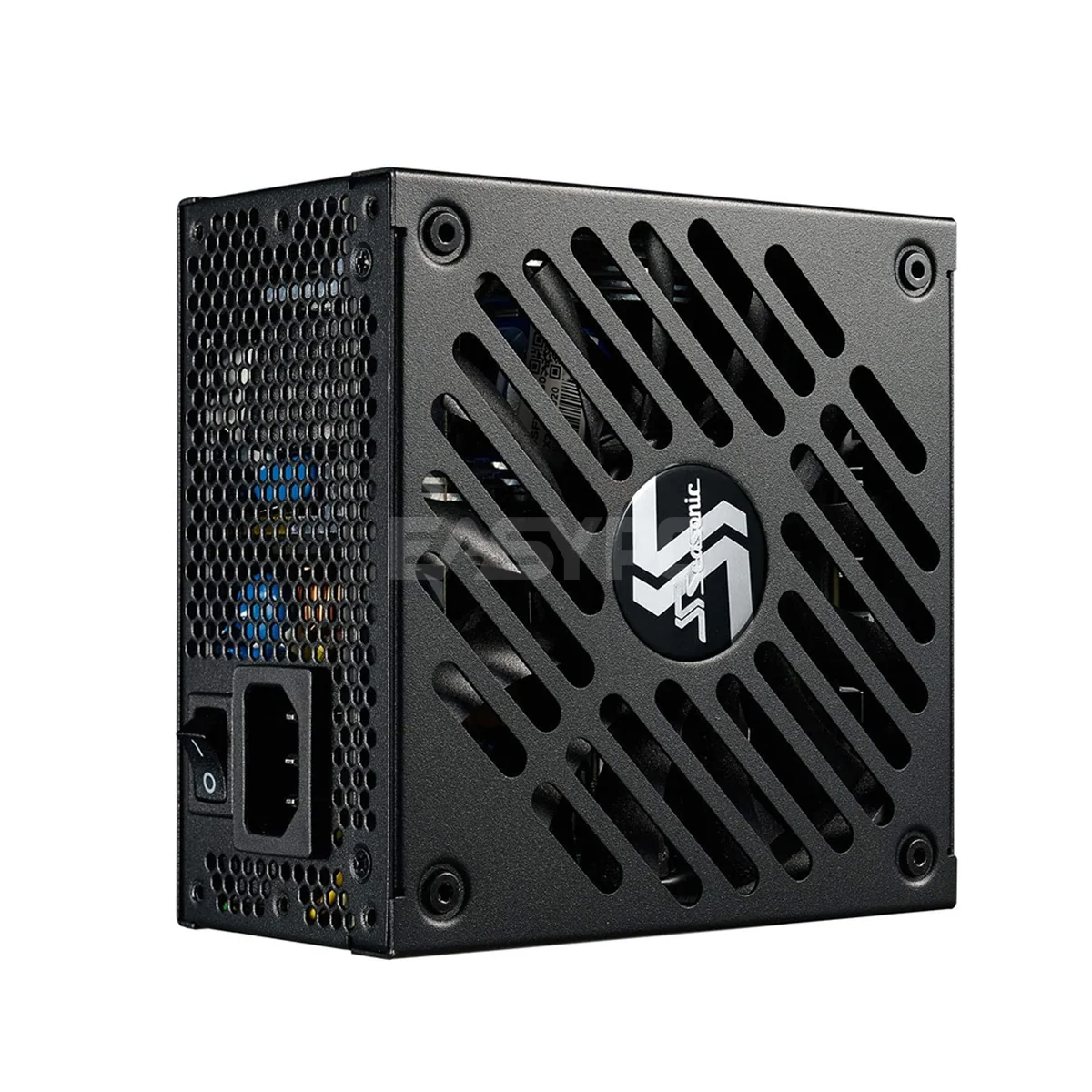

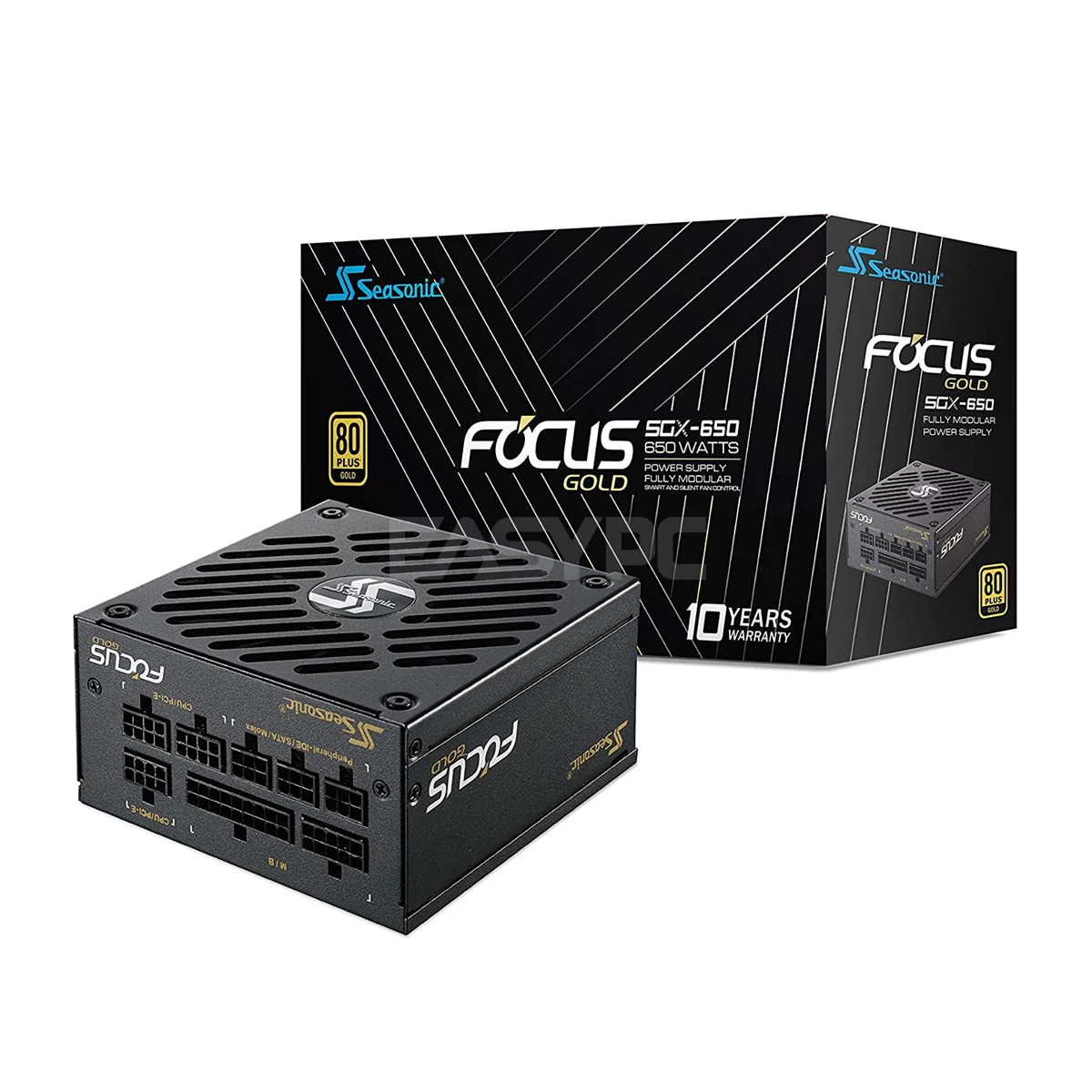

Seasonic Focus SGX 650w Modular Power Supply Gold

Product Description

Elevate your system with the Seasonic Focus SGX 650W Modular Power Supply. Gold-certified for efficiency, it ensures stable and reliable power delivery. The modular design allows for a clean build, optimizing cable management. Experience top-tier performance with Seasonic's trusted power solution.

Product Specifications

• Manufacturer (OEM) Seasonic
• DC Output 650W
• Efficiency 80 PLUS Gold, ETA-A (88-91%)
• Noise LAMBDA-S+ (35-40 dB[A])
• Modular ? (Fully)
• Intel C6/C7 Power State Support ?
• Operating Temperature (Continuous Full Load) 0 - 50C
• Over Voltage Protection ?
• Under Voltage Protection ?
• Over Power Protection ?
• Over Current (+12V) Protection ?
• Over Temperature Protection ?
• Short Circuit Protection ?
• Surge Protection ?
• Inrush Current Protection ?
• Fan Failure Protection ?
• No Load Operation ?
• Cooling 120mm Fluid Dynamic Bearing Fan (S1201512HB)
• Semi-Passive Operation ?
• Dimensions (W x H x D) 128 x 66 x 128mm
• Weight 1.15 kg (2.54 lb)
• Form Factor SFX-L, EPS 2.92
• Warranty 10 Years
• Power Specifications
• Rail 3.3V 5V 12V 5VSB -12V
• Power Amps 20 20 54 3 0.3
• Watts 100 648 15 3.6
• Total Max. Power (W) 650
• Cables & Connectors
• Modular Cables
• Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
• ATX connector 20+4 pin (360mm) 1 1 18AWG No
• 4+4 pin EPS12V (400mm) 1 1 18AWG No
• 6+2 pin PCIe (400mm+100mm) 2 4 18AWG No
• SATA (300mm+200mm+100mm) 2 6 18AWG No
• 4 pin Molex (300mm+200mm+200mm) 1 3 18AWG No
• AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -
