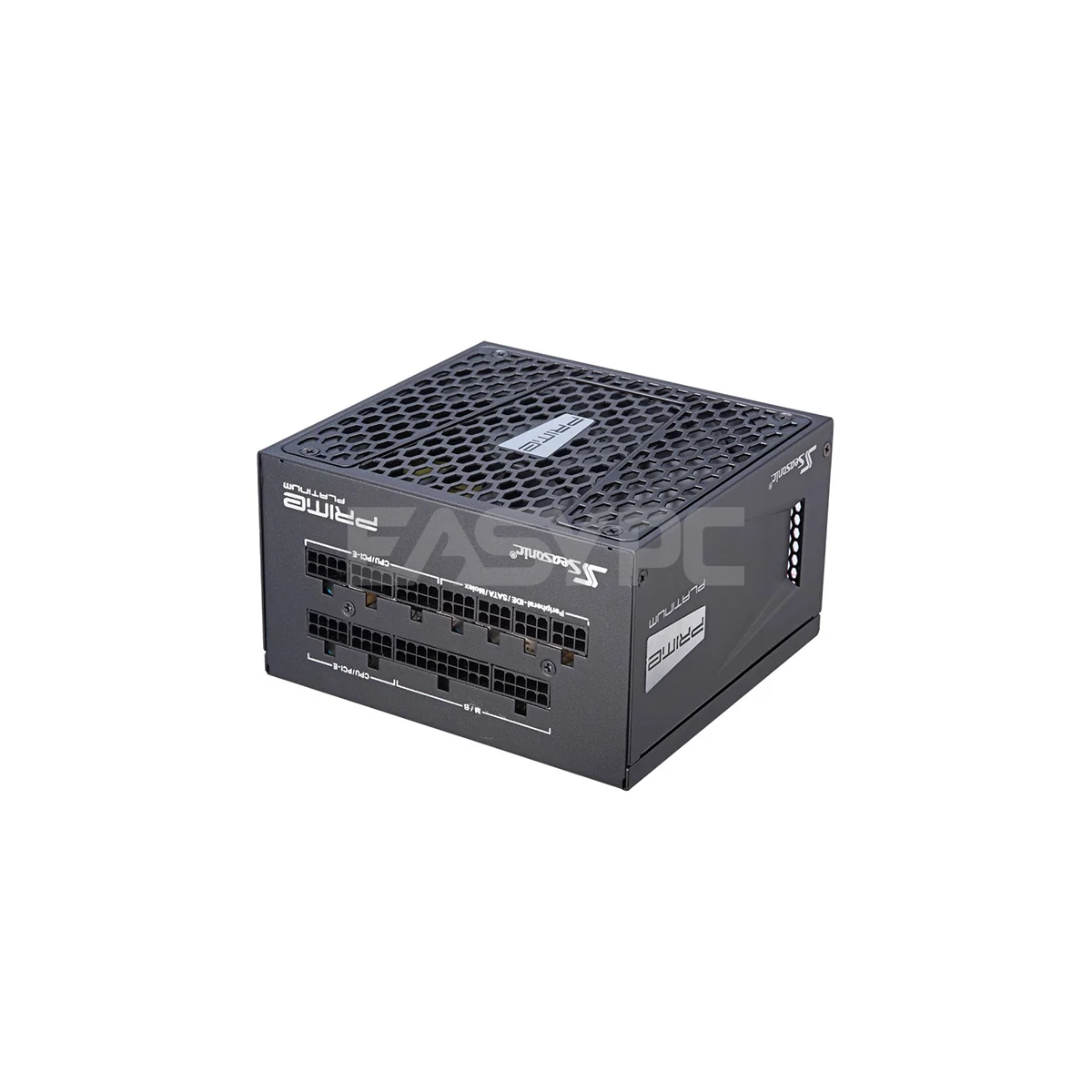

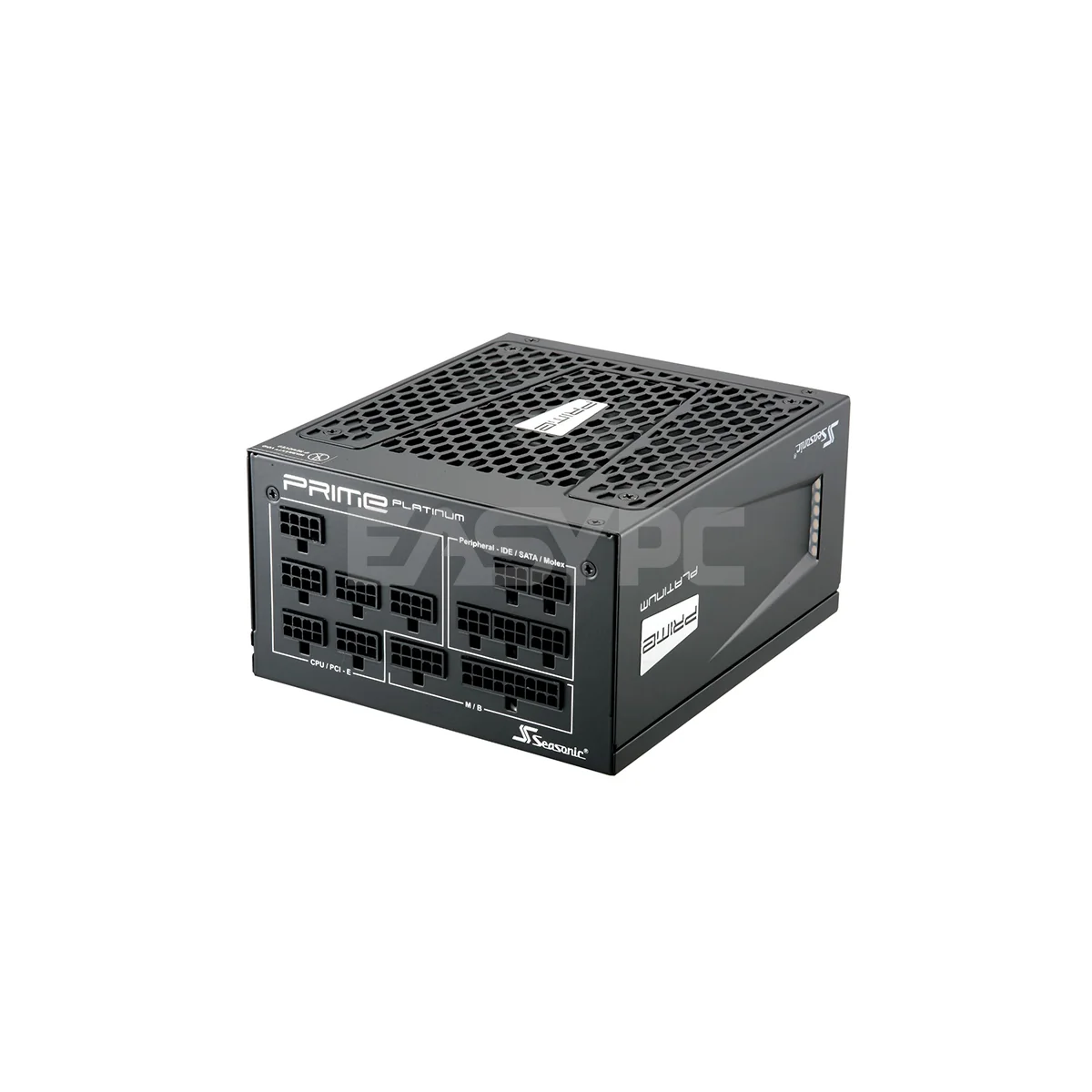

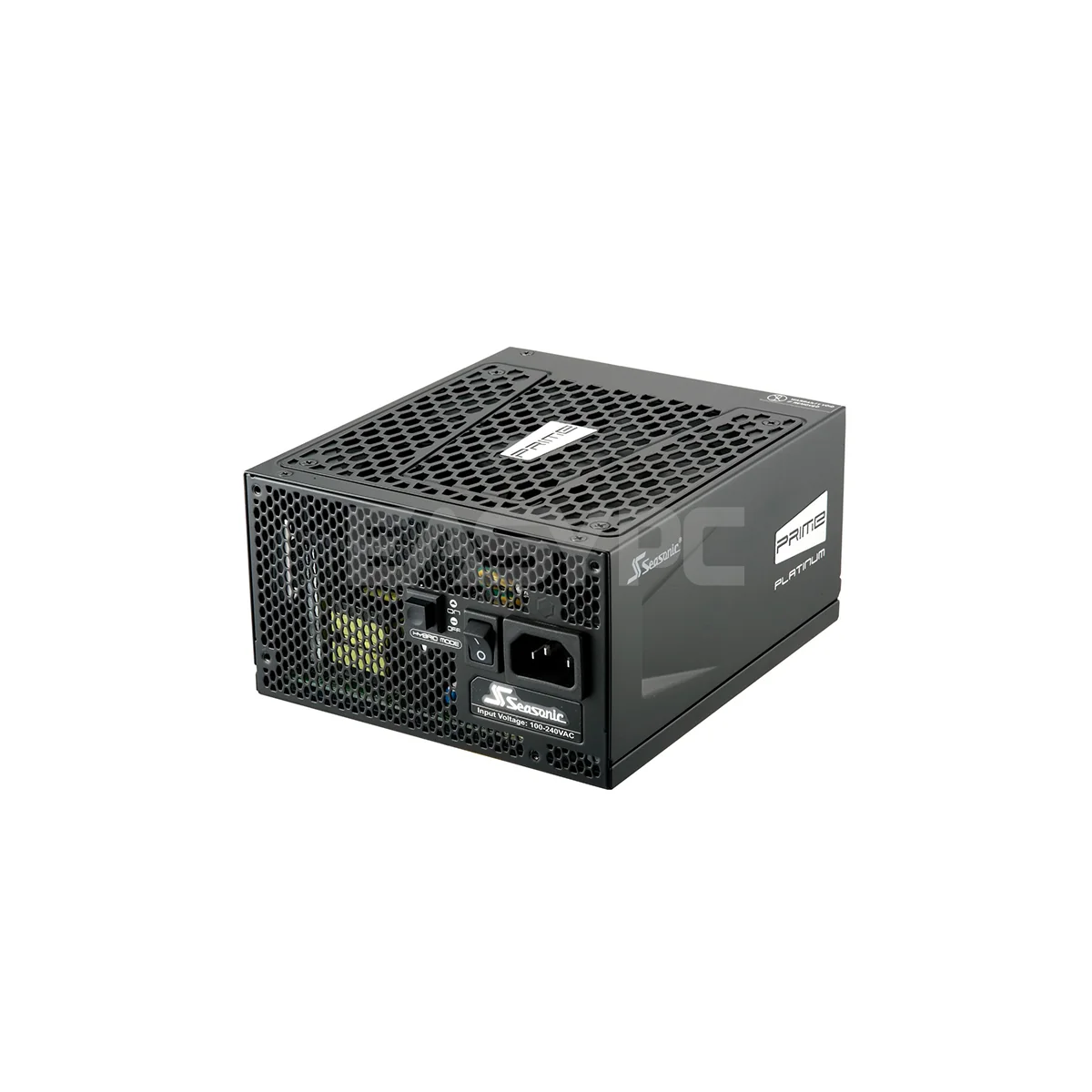

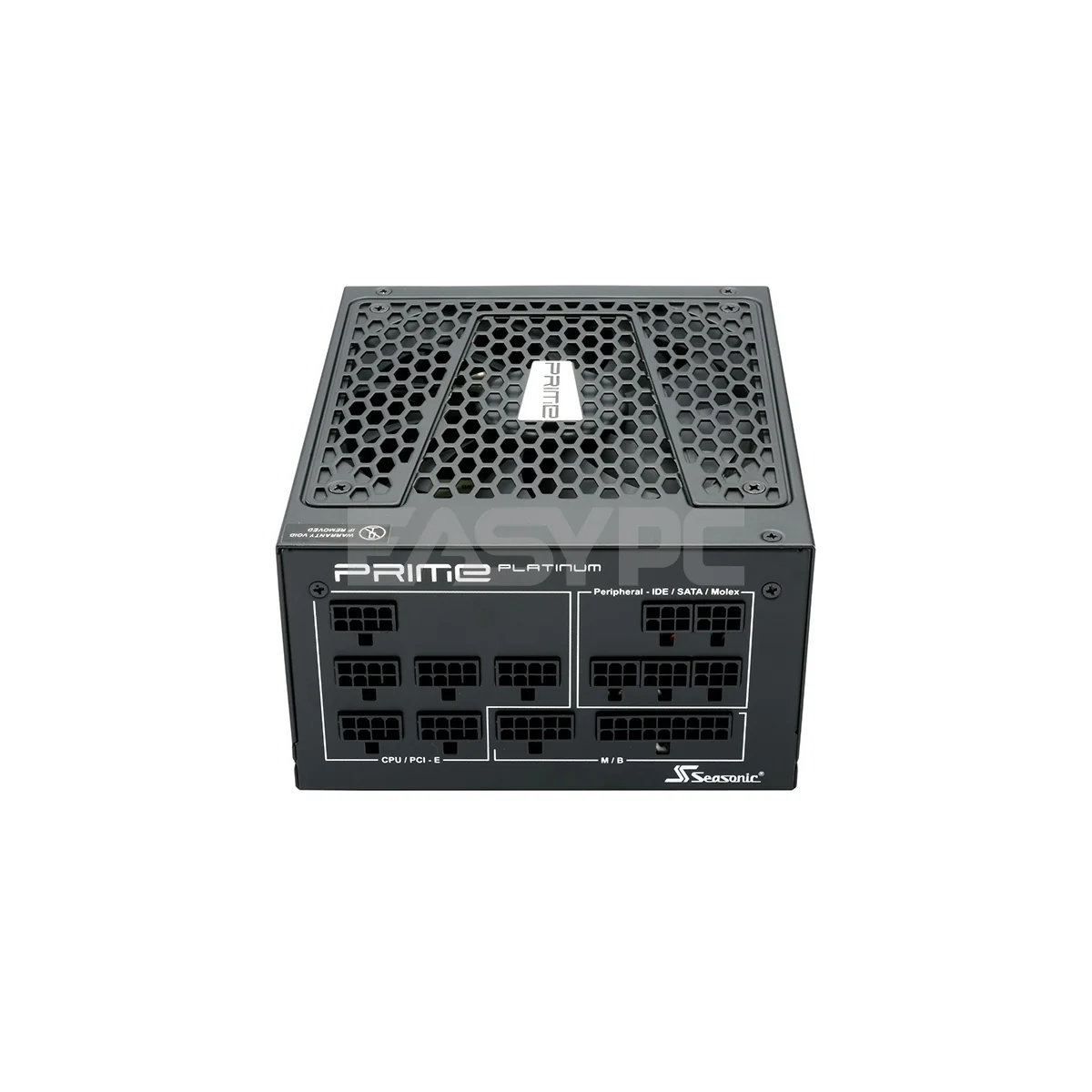

Seasonic Prime Ultra SSR-1000PD 1000 Watts Fully Modular 80 Plus Power Supply Platinum SESS1303 4JTP

Product Specifications

• Brand: SeaSonic
• Series: PRIME Ultra Platinum
• Model: PRIME PX-1000 (SSR-1000PD)
• Type: ATX12V / EPS12V
• Maximum Power: 1000W
• Fans: 135mm Fluid Dynamic Bearing Fan w/ Hybrid Fan Control
• Main Connector:24Pin
• +12V Rails: Single
• PCI-Express Connector 8 x 6+2-Pin
• SATA Power Connector: 12
• Modular: Full Modular
• Efficiency: 91.91% (Avg.)
• Energy-Efficient: 80 PLUS PLATINUM Certified
• Input Voltage: 100 - 240 V
• Input Frequency Range: 50/60 Hz
• Input Current: 11 - 5.5 A
• Output: +3.3V@25A, +5V@25A, +12V@83A, [email protected], +5VSB@3A
• MTBF: 150,000 hours MTBF @ 25 degree C, excl. fan
• Approvals: cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions: 3.39" x 5.91" x 6.69"
• Max PSU Length: 170 mm
• Weight: 9.00 lbs.
• Connectors: 1 x Main Power
• 2 x 4+4-pin CPU
• 8 x 6+2-pin PCIE
• 12 x SATA
• 5 x Peripheral
• 1 x FDD
• Features: 80 PLUS Platinum
• Fluid Dyanamic Fan Bearing
• Premium Hybrid Fan Control
• Micro Tolerance Load Regulation
• Cable-free Connection Design
• Multi-GPU Setup
• Gold Plated Connectors
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

Ideal For

• Powering custom-built desktop PCs
• System upgrades and new builds
• Replacing an existing power supply unit
