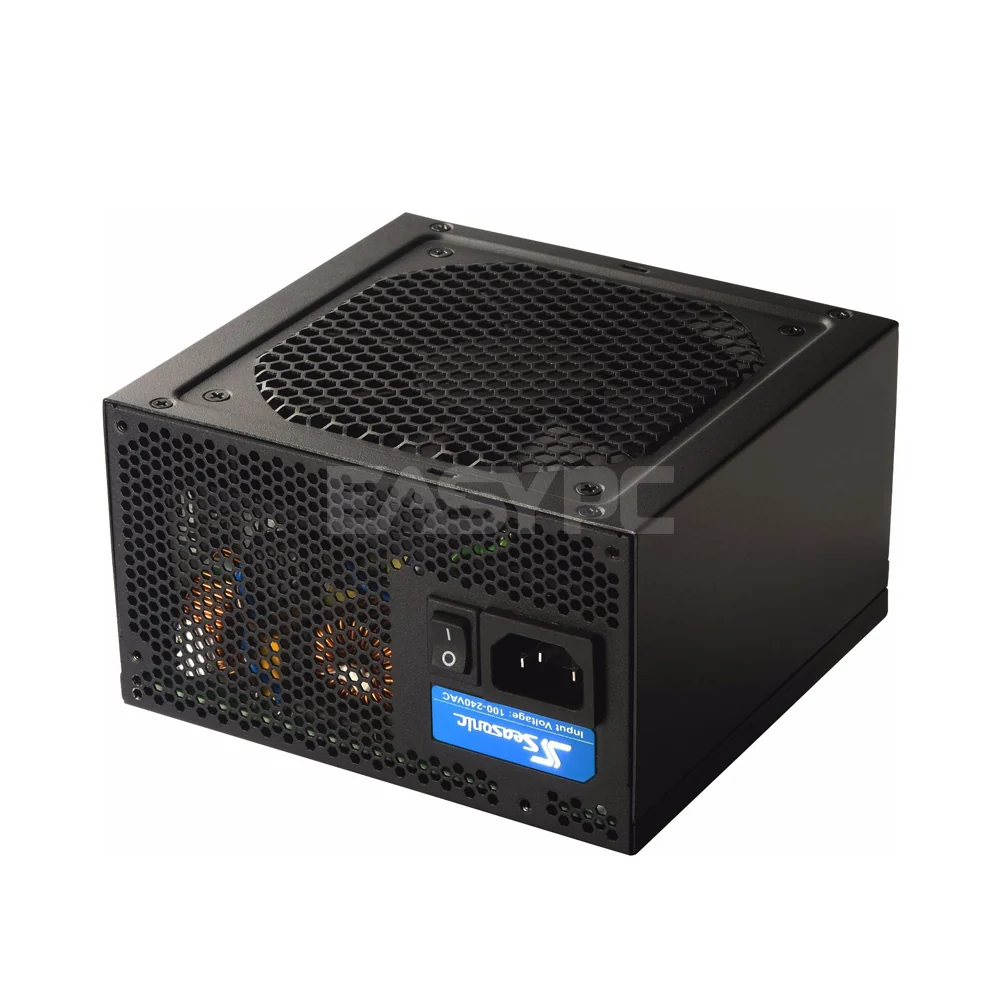

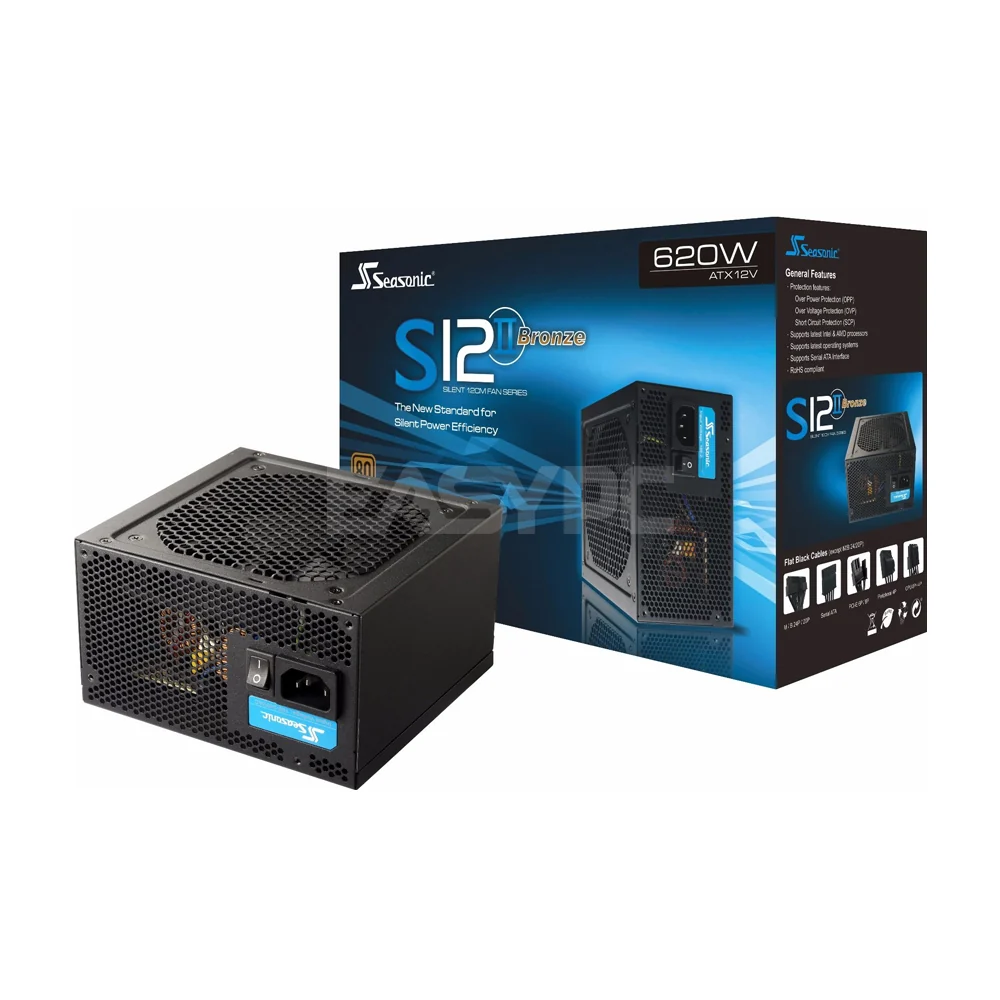

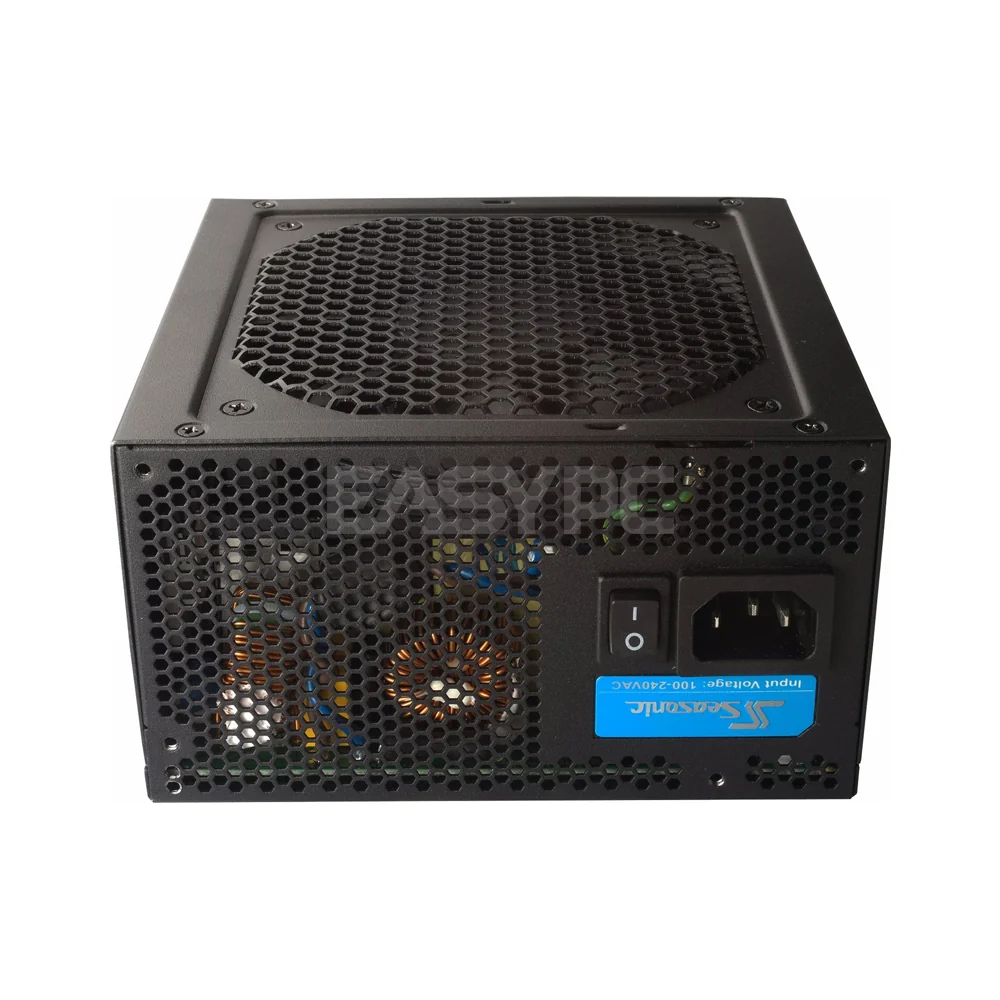

Seasonic S12II 620 watts 80 Plus Bronze Power Supply

Product image 1
Product image 2
Product image 3

Seasonic S12II 620 watts 80 Plus Bronze Power Supply

Technical Specifications
80PLUS® Bronze
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Seasonic S2FC
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fixed cable
Cable type Flat black cables
Electrical Features Operating Temperature 40 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, UkrTEST, CB , BSMI, Semko, CCC, CE, FCC, C-tick
Environmental Compliance Energy Star, RoHS, WEEE, REACH
Warranty 5 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 9 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V1 +12 V2 -12 V +5 VSB
Maximum Power 24 A 24 A 24 A 24 A 0.8 A 2.5 A
130 W 576 W 9.6 W 12.5 W
Total continuous power 620 W

CABLES

SS-620GB

Connector Connector Count Cable Length
Main Power (24/20 pins) 1 1 x 550 mm - attached
CPU (8/4 pins) 1 1 x 550 mm - 8/4pins attached
PCIe (8/6 pins) 2 1 x 550 + 100 mm - attached
SATA 8

1 x 400 + 100 + 100 + 100 mm - attached

1 x 500 + 100 + 100 + 100 mm - attached
Peripheral 4 1 x 400 + 100 + 100 + 100 mm - attached
Floppy 1 1 x 100 mm - end connector of the peripheral cable

Browse more Power Supplies at EasyPC.

$19.02

Original: $54.34

-65%
Seasonic S12II 620 watts 80 Plus Bronze Power Supply—

$54.34

$19.02
