ZOTAC GAMING Nvidia GeForce RTX 5060 Ti Twin Edge OC (ZT-B50620H-10M) 16GB 128-bit GDDR7 Videocard

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC (ZT-B50620H-10M) is a compact dual-fan graphics card powered by the NVIDIA Blackwell architecture with DLSS 4 and 16GB of GDDR7 memory. Its factory OC tuning and IceStorm 2.0 cooling deliver smooth, reliable performance in a small-form-factor-ready design.

Key Features

• NVIDIA Blackwell Architecture – Next-generation GPU architecture with DLSS 4 support.
• 16GB GDDR7 Memory – 16GB of high-speed GDDR7 on a 128-bit memory bus.
• Factory OC – Boost clock tuned to 2602 MHz out of the box.
• IceStorm 2.0 Cooling – Dual-fan cooling with BladeLink Fans and FREEZE Fan Stop for quiet idle operation.

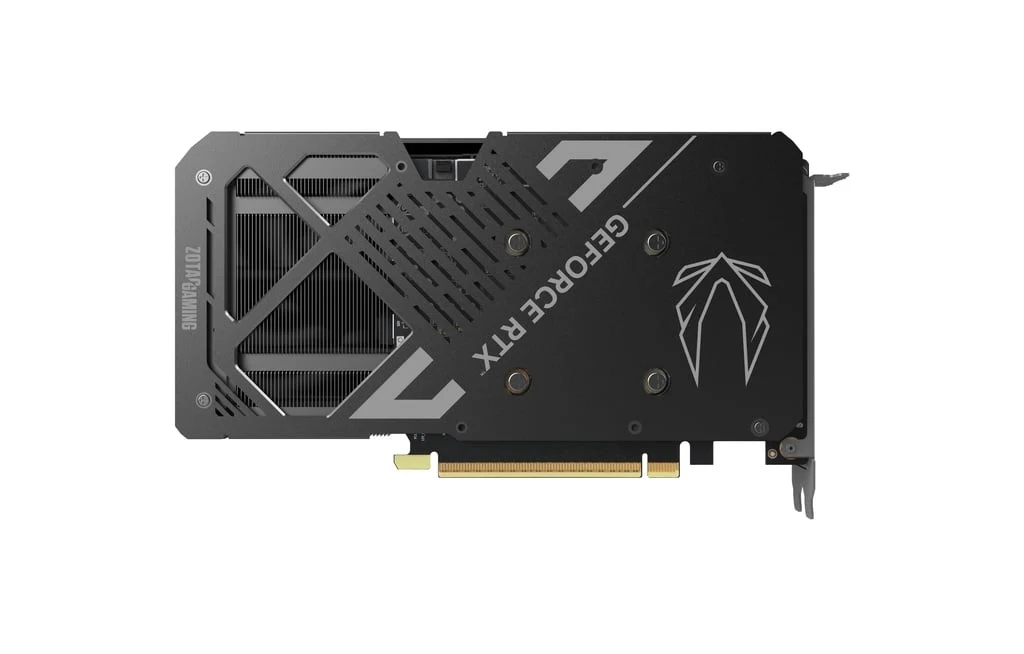

• SFF-Ready Compact Design – Dual-slot, small-form-factor-ready card with a metal backplate.
• Single 8-Pin Power – Powered by a single 8-pin PCIe connector.
• PCI Express 5.0 – PCIe 5.0 x8 host interface.

Technical Specifications

GPU	NVIDIA GeForce RTX 5060 Ti
CUDA Cores	4608
Video Memory	16GB GDDR7
Memory Bus	128-bit
Boost Clock	2602 MHz
Memory Clock	28 Gbps
Interface	PCI Express 5.0 x8
Display Outputs	3 x DisplayPort 2.1b, 1 x HDMI
Power Consumption	180W
Recommended Power Supply	600W
Power Connector	1 x 8-pin
Cooling	IceStorm 2.0 (dual-fan)
Slot Size	Dual-slot
Card Dimensions	220.5 x 120.25 x 41.6 mm
API Support	DirectX 12 Ultimate, OpenGL 4.6
